| Brand | Texas Instruments |
| Date Code | 2244 |
| Packing | Reel |
| Package | VQFN-10 |
| Minimum Packing | 3000pcs |
4.5-V to 28-V, 6-A synchronous buck converter with ULQ-Mode
Features：
Quality information
|
RatingCatalog |
|
RoHSYes |
|
REACHYes |
|
Lead finish / Ball materialSN |
|
MSL rating / Peak reflowLevel-2-260C-1 YEAR |
Packaging information
|
Package | PinsVQFN-HR (RPA) | 10 |
|
Operating temperature range (°C)-40 to 150 |
|
Package qty | Carrier3,000 | LARGE T&R |

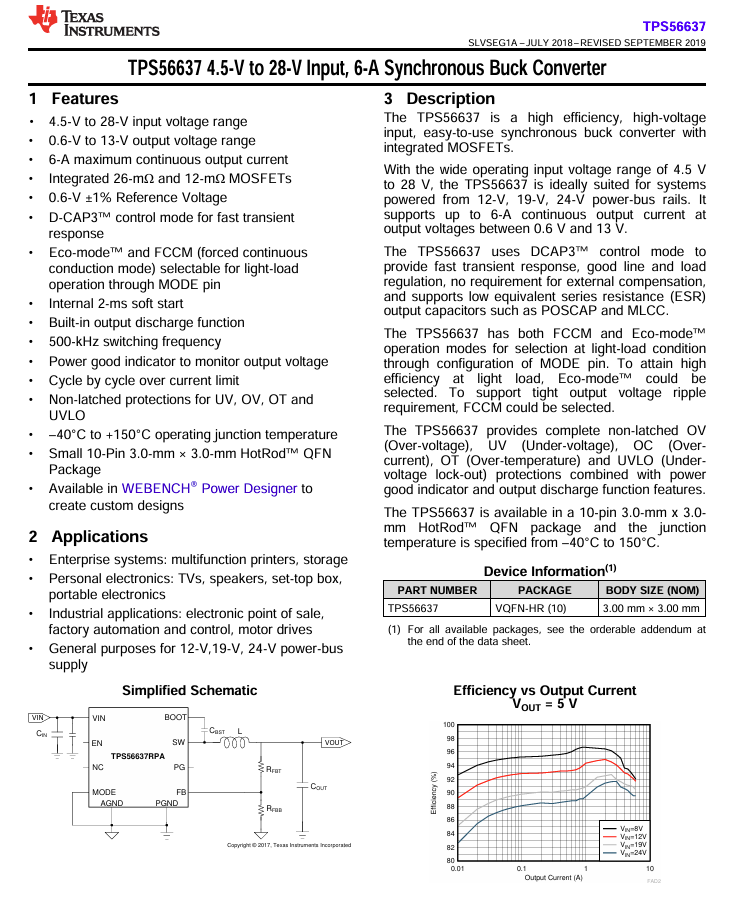

Features for the TPS56637
4.5-V to 28-V input voltage range
0.6-V to 13-V output voltage range
6-A maximum continuous output current
Integrated 26-mΩ and 12-mΩ MOSFETs
0.6-V ±1% Reference Voltage
D-CAP3™ control mode for fast transient response
Eco-mode™ and FCCM (forced continuous conduction mode) selectable for light-load operation through MODE pin
Internal 2-ms soft start
Built-in output discharge function
500-kHz switching frequency
Power good indicator to monitor output voltage
Cycle by cycle over current limit
Non-latched protections for UV, OV, OT and UVLO
–40°C to +150°C operating junction temperature
Small 10-Pin 3.0-mm × 3.0-mm HotRod™ QFN Package
Available in WEBENCH® Power Designer to create custom designs
Description for the TPS56637
The TPS56637 is a high efficiency, high-voltage input, easy-to-use synchronous buck converter with integrated MOSFETs.
With the wide operating input voltage range of 4.5 V to 28 V, the TPS56637 is ideally suited for systems powered from 12-V, 19-V, 24-V power-bus rails. It supports up to 6-A continuous output current at output voltages between 0.6 V and 13 V.
The TPS56637 uses DCAP3™ control mode to provide fast transient response, good line and load regulation, no requirement for external compensation, and supports low equivalent series resistance (ESR) output capacitors such as POSCAP and MLCC.
The TPS56637 has both FCCM and Eco-mode™ operation modes for selection at light-load condition through configuration of MODE pin. To attain high efficiency at light load, Eco-mode™ could be selected. To support tight output voltage ripple requirement, FCCM could be selected.
The TPS56637 provides complete non-latched OV (Over-voltage), UV (Under-voltage), OC (Over-current), OT (Over-temperature) and UVLO (Under-voltage lock-out) protections combined with power good indicator and output discharge function features.
The TPS56637 is available in a 10-pin 3.0-mm x 3.0-mm HotRod™ QFN package and the junction temperature is specified from –40°C to 150°C.
