| Brand | Texas Instruments |
| Date Code | 2310 |
| Packing | Reel |
| Package | SOT-3 |
| Minimum Packing | 3000pcs |

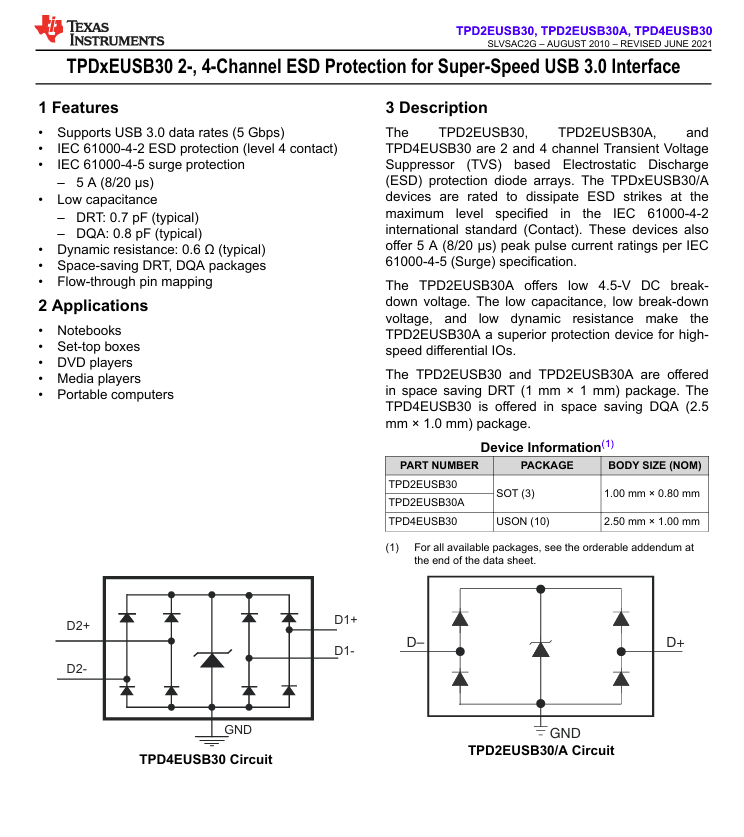

Dual 0.7-pF, 3.6-V, ±8-kV ESD protection diode with 5-A surge rating for USB 3.0
Features：
Quality information
|
RatingCatalog |
|
RoHSYes |
|
REACHYes |
|
Lead finish / Ball materialNIPDAU |
|
MSL rating / Peak reflowLevel-1-260C-UNLIM |
Packaging information
|
Package | PinsSOT-9X3 (DRT) | 3 |
|
Operating temperature range (°C)-40 to 85 |
|
Package qty | Carrier3,000 | LARGE T&R |
Features for the TPD2EUSB30A
Description for the TPD2EUSB30A
The TPD2EUSB30, TPD2EUSB30A, and TPD4EUSB30 are 2 and 4 channel Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diode arrays. The TPDxEUSB30/A devices are rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Contact). These devices also offer 5 A (8/20 µs) peak pulse current ratings per IEC 61000-4-5 (Surge) specification.
The TPD2EUSB30A offers low 4.5-V DC break-down voltage. The low capacitance, low break-down voltage, and low dynamic resistance make the TPD2EUSB30A a superior protection device for high-speed differential IOs.
The TPD2EUSB30 and TPD2EUSB30A are offered in space saving DRT (1 mm × 1 mm) package. The TPD4EUSB30 is offered in space saving DQA (2.5 mm × 1.0 mm) package.
