Features：Three-Phase Permanent Magnet Synchronous Motors (PMSM)/Brushless DC (BLDC), Two-Phase Stepper Motor, and Brushed DC Motor Support
7.7V to 70V Single-Supply Operating Voltage Range
Smart Gate Driver with Adjustable Strength up to 1A/2A Source/Sink
Field-Oriented Controller/FOC in Hardware for Wide Bandwidth Current Control Loop
Position, Velocity, and Torque Controller in Hardware for Fast and Precise Control
8-Point Ramp Generator with Ramp Calculation in Real Time in Hardware
Fast Space Vector Pulse Width Modulation (SVPWM) Engine (2kHz …100kHz) with 120MHz Clock
Feedback Position Sensor Support (Hall, A/B/N, SPI)
Bottom Shunt Current Measurement (Programmable CSA and ADCs)
5.8V/600mA Buck Converter
2x Configurable LDOs (2.5V, 3.3V, or 5V) for Supply of External Circuits with each having 150mA current
Charge Pump with Voltage Doubler
Trickle Charge Pump for 100% PWM Duty Cycle
Integrated Preprogrammed 32-Bit/40MHz Microcontroller Supporting Initial Configuration (OTP) of the Device and Direct Hardware/Register or Parameter Mode Access
SPI, UART Interfaces for Communication with Main/Application Controller
Parameter Storage (Optional) in SPI flash memory or I2C EEPROM
Internal Oscillator with Phase Locked Loop (PLL) and Optional External Crystal or Clock Support
Watchdog with Separate Internal Oscillator
Low-Power Hibernation Mode with Wake-Up Button and Timer Support

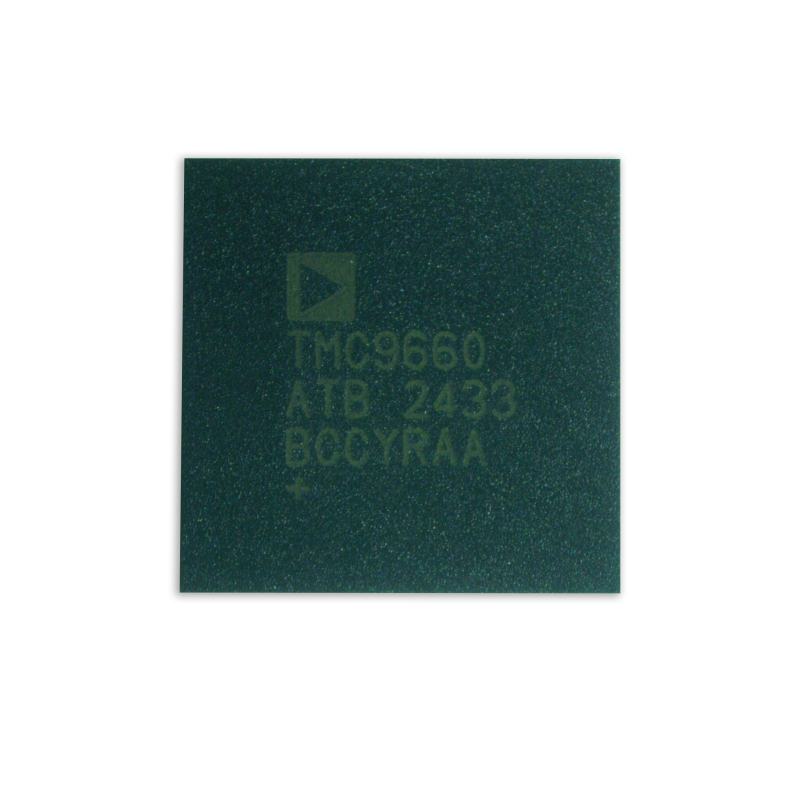

Compact Monolithic Solution, 64-Pin, 9mm x 9mm TQFN Package

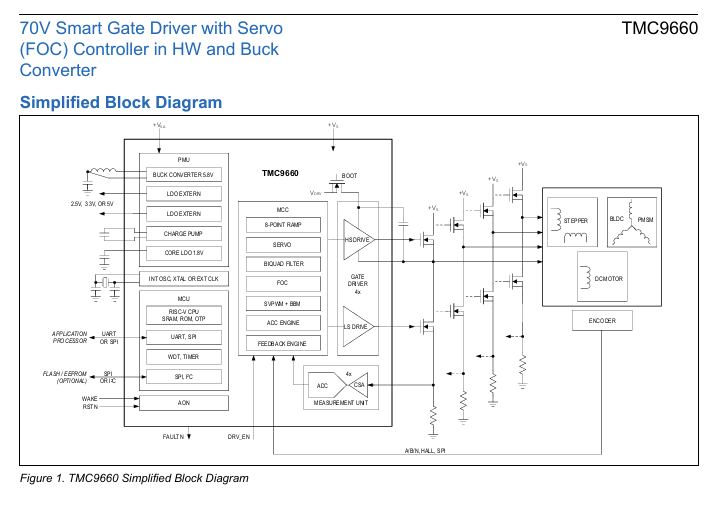

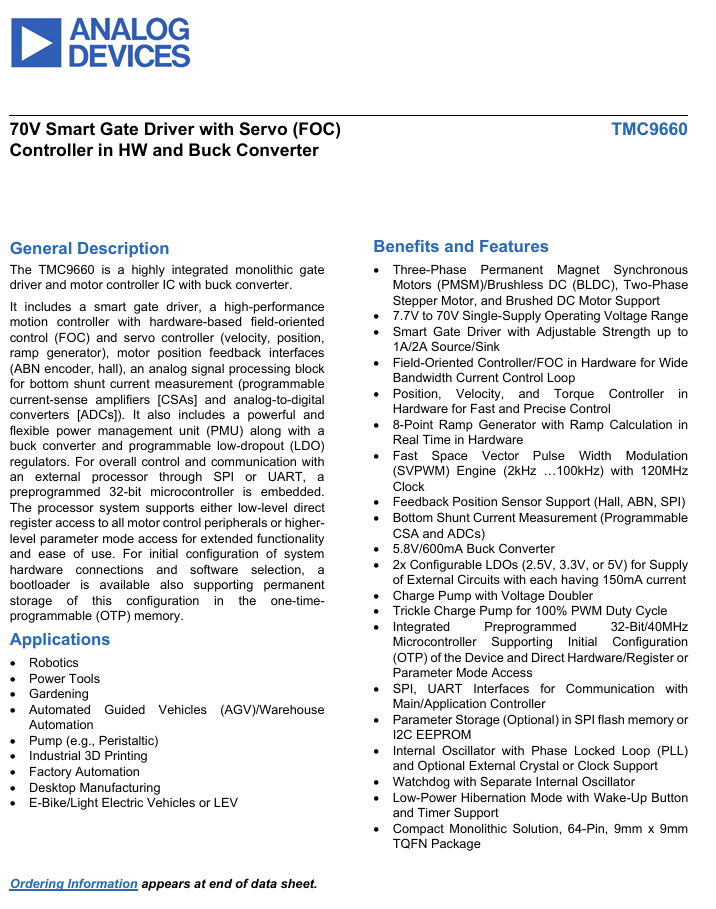

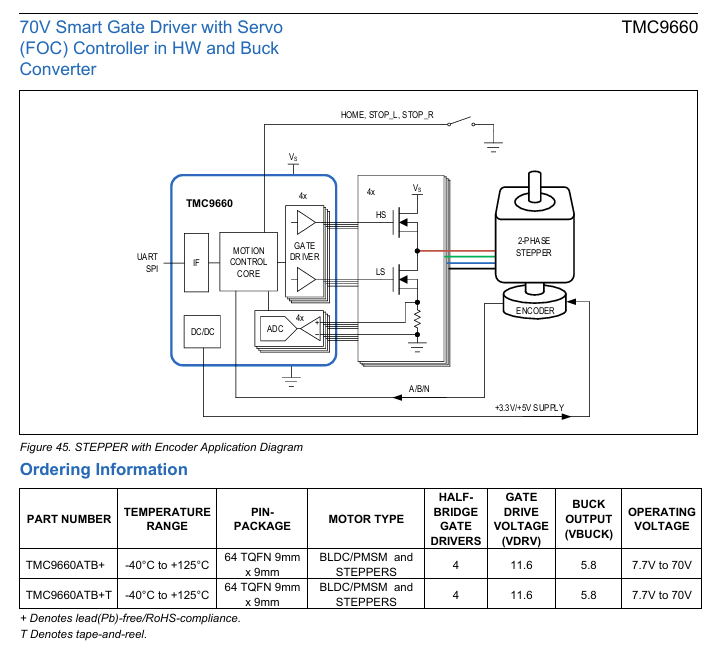

The TMC9660 is a highly integrated monolithic gate driver and motor controller IC with buck converter.
It includes a smart gate driver, a high-performance motion controller with hardware-based field-oriented control (FOC) and servo controller (velocity, position, ramp generator), motor position feedback interfaces (A/B/N encoder, hall), an analog signal processing block for bottom shunt current measurement (programmable current-sense amplifiers [CSAs] and analog-to-digital converters [ADCs]). It also includes a powerful and flexible power management unit (PMU) along with a buck converter and programmable low-dropout (LDO) regulators. For overall control and communication with an external processor through SPI or UART, a preprogrammed 32-bit microcontroller is embedded. The processor system supports either low-level direct register access to all motor control peripherals or higher-level parameter mode access for extended functionality and ease of use. For initial configuration of system hardware connections and software selection, a bootloader is available also supporting permanent storage of this configuration in the one-time-programmable (OTP) memory.
APPLICATIONSRobotics
Power Tools
Gardening
Automated Guided Vehicles (AGV)/Warehouse Automation
Pump (e.g., Peristaltic)
Industrial 3D Printing
Factory Automation
Desktop Manufacturing
E-Bike/Light Electric Vehicles or LEV
