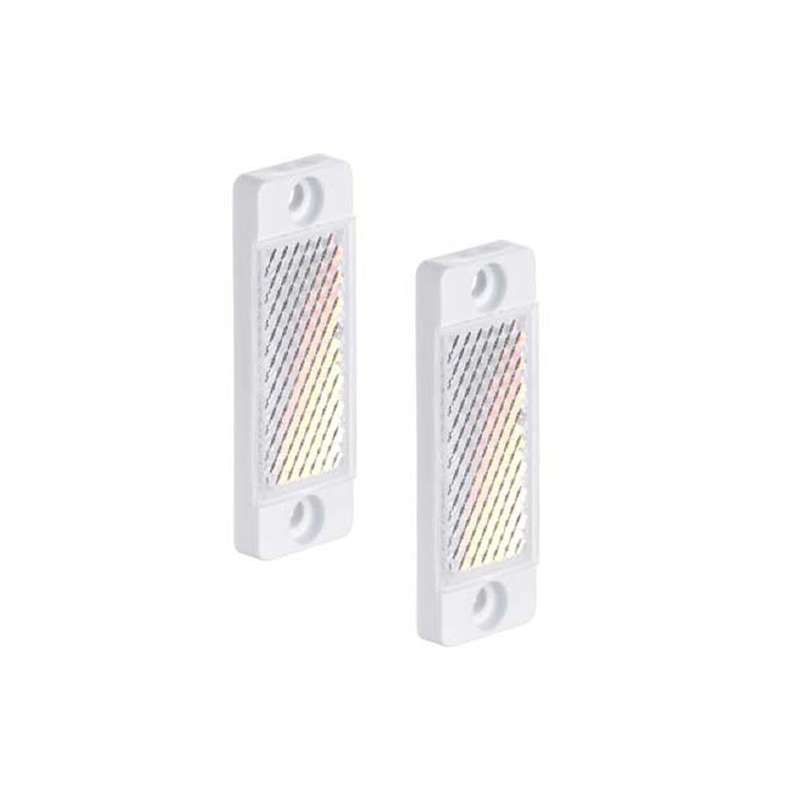

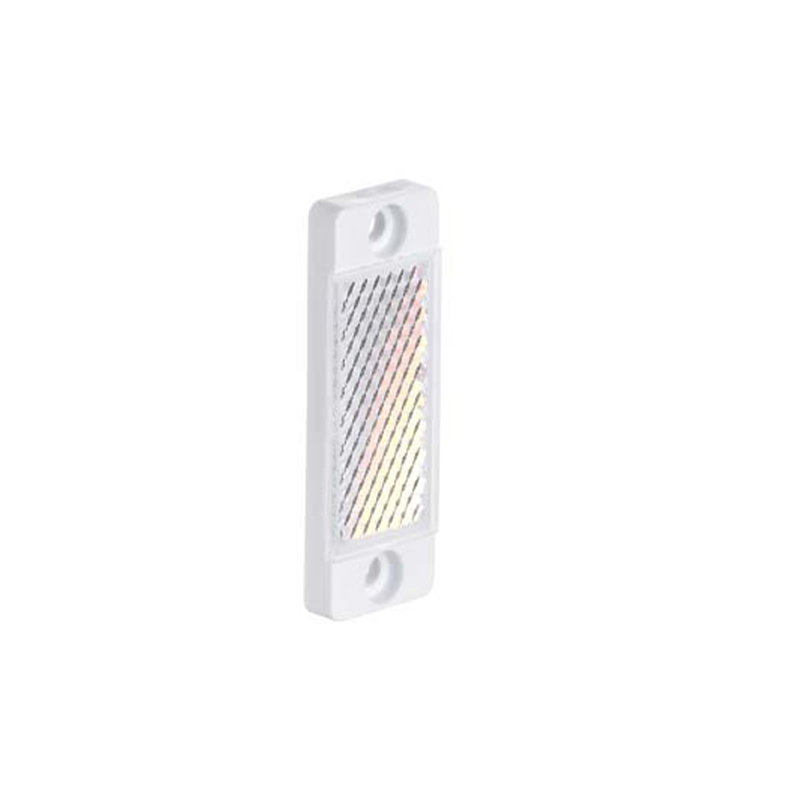

In Stock ! Leuze Reflector TKS 20X40

Part no.: 50081283

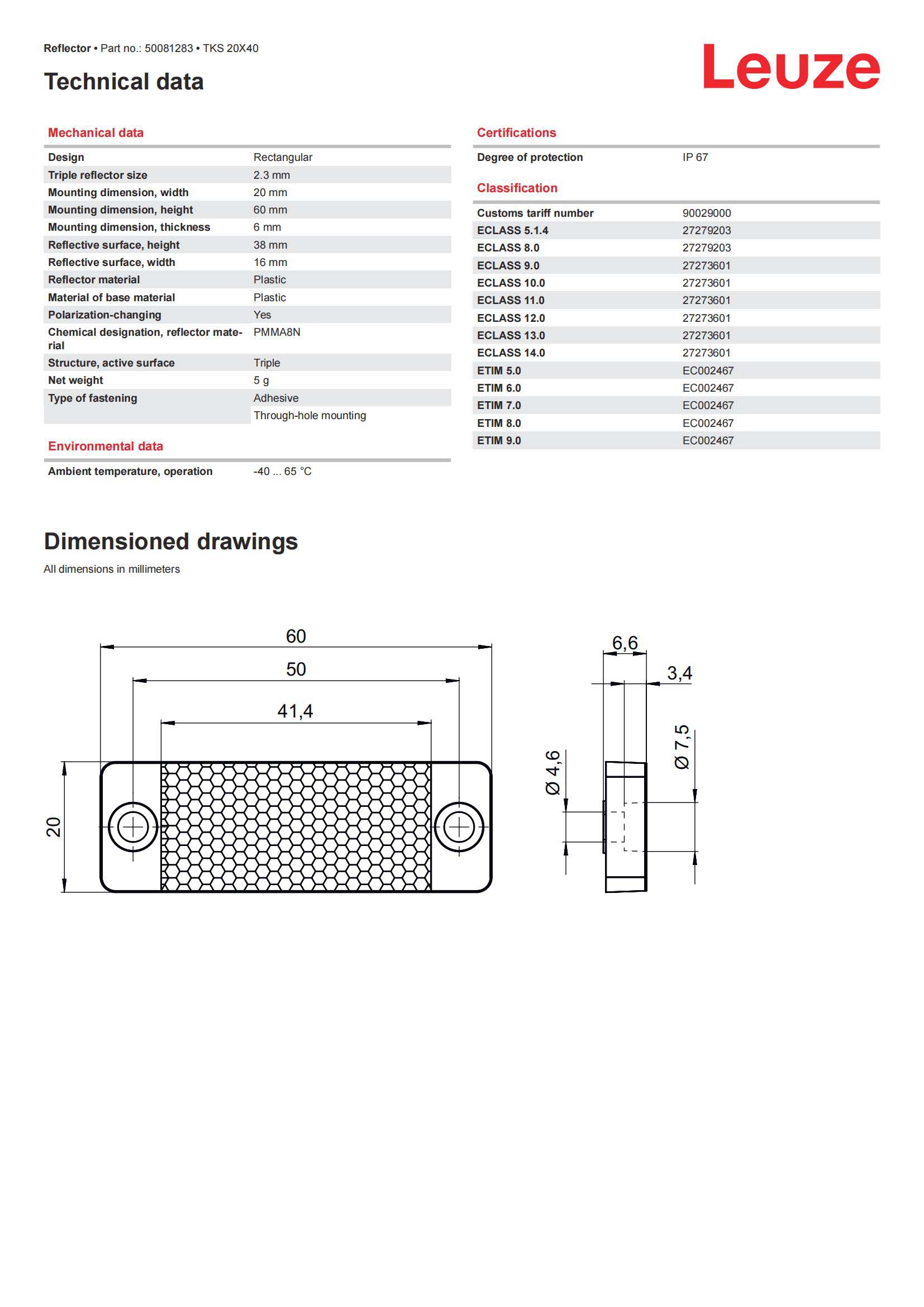

Features：

Triple reflector size：2.3 mm

Mounting dimension, width：20 mm

Mounting dimension, height：60 mm

Mounting dimension, thickness：6 mm

Reflective surface, height：38 mm

Reflective surface, width：16 mm

Reflector material：Plastic

Material of base material：Plastic

Polarization-changing：Yes

Chemical designation, reflector material：PMMA8N

Structure, active surface：Triple

Net weight：5 g

Type of fastening：Adhesive

Through-hole mounting

Ambient temperature, operation：-40 ... 65 °C

Degree of protection：IP 67

Reflectors and reflective tapes

Sensors that operate according to the reflection principle need high-quality reflectors in order to function. Reflectors for all conceivable applications and environmental conditions are available to ensure an optimum detection result at all times.

Standard reflectors

Reflectors in various models and mounting types

For use with sensors with average to large light spot

Reflective element sizes from 2.3 to 4 mm

Micro-triad-type reflectors

Micro-triad-type reflectors in various models and mounting types

For use with sensors with small light spot

Reflective element sizes from 0.3 to 1.2 mm

Reflectors with higher resistance

Special reflectors with chemical resistance in various models and mounting types

For use with sensors with small to large light spot

Reflective element sizes from 0.3 to 4 mm

Reflectors with heating

Reflectors with heating in various models and mounting types

For use with sensors with average to large light spot

Reflective element sizes from 2.3 to 4 mm
