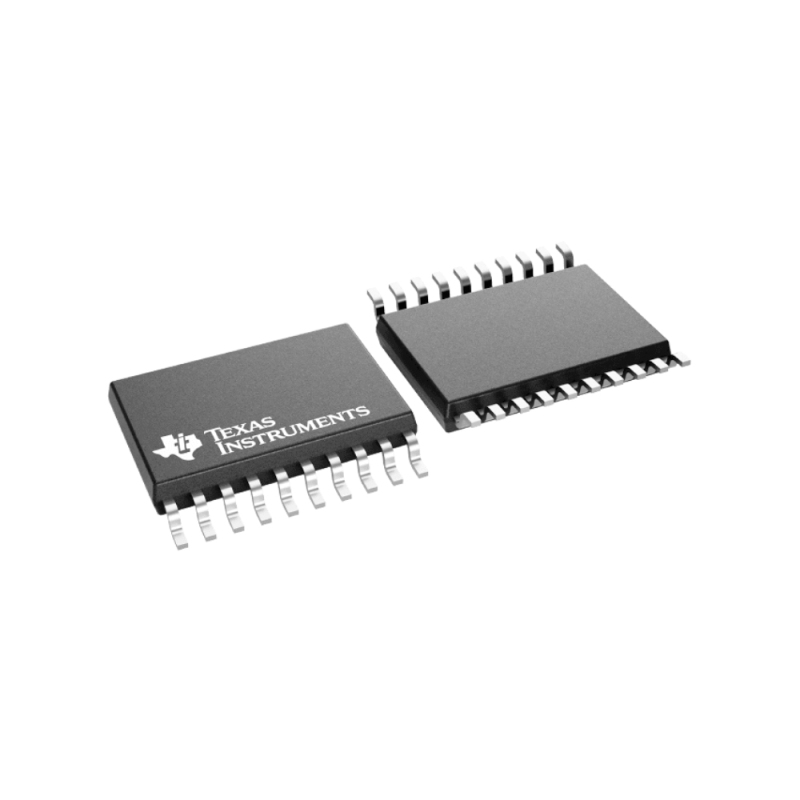

| Brand | Texas Instruments |
| Date Code | 2419 |
| Packing | Reel |
| Package | TSSOP-20 |
| Minimum Packing | 100pcs |
Octal Bus Transceiver With 3-State Outputs
Features：
Quality information
|
RatingCatalog |
|
RoHSYes |
|
REACHYes |
|
Lead finish / Ball materialSN | NiPdAu |
|
MSL rating / Peak reflowLevel-1-260C-UNLIM |
Packaging information
|
Package | PinsTSSOP (PW) | 20 |
|
Operating temperature range (°C)-40 to 125 |
|
Package qty | Carrier2,000 | LARGE T&R |

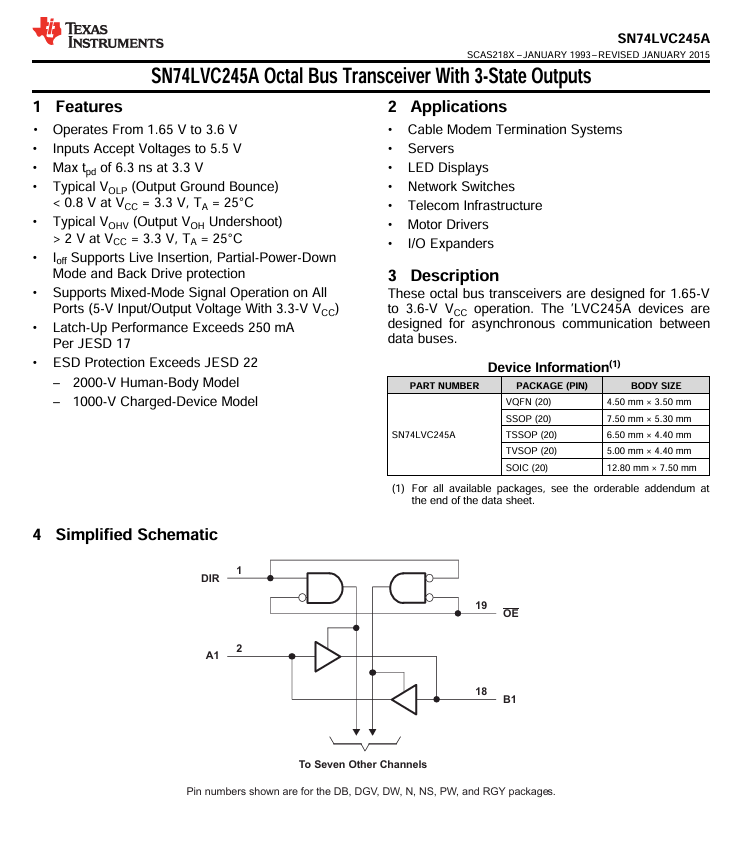

Features for the SN74LVC245A
Operates From 1.65 V to 3.6 V
Inputs Accept Voltages to 5.5 V
Max tpd of 6.3 ns at 3.3 V
Typical VOLP (Output Ground Bounce)
< 0.8 V at VCC = 3.3 V, TA = 25°C
Typical VOHV (Output VOH Undershoot)
> 2 V at VCC = 3.3 V, TA = 25°C
Ioff Supports Live Insertion, Partial-Power-Down
Mode and Back Drive protection
Supports Mixed-Mode Signal Operation on All
Ports (5-V Input/Output Voltage With 3.3-V VCC)
Latch-Up Performance Exceeds 250 mA Per JESD 17
ESD Protection Exceeds JESD 22
2000-V Human-Body Model
1000-V Charged-Device Model
Description for the SN74LVC245A
These octal bus transceivers are designed for 1.65-V to 3.6-V VCC operation. The ’LVC245A devices are designed for asynchronous communication between data buses.
