| Brand | Texas Instruments |
| Date Code | 1706 |
| Packing | Reel |

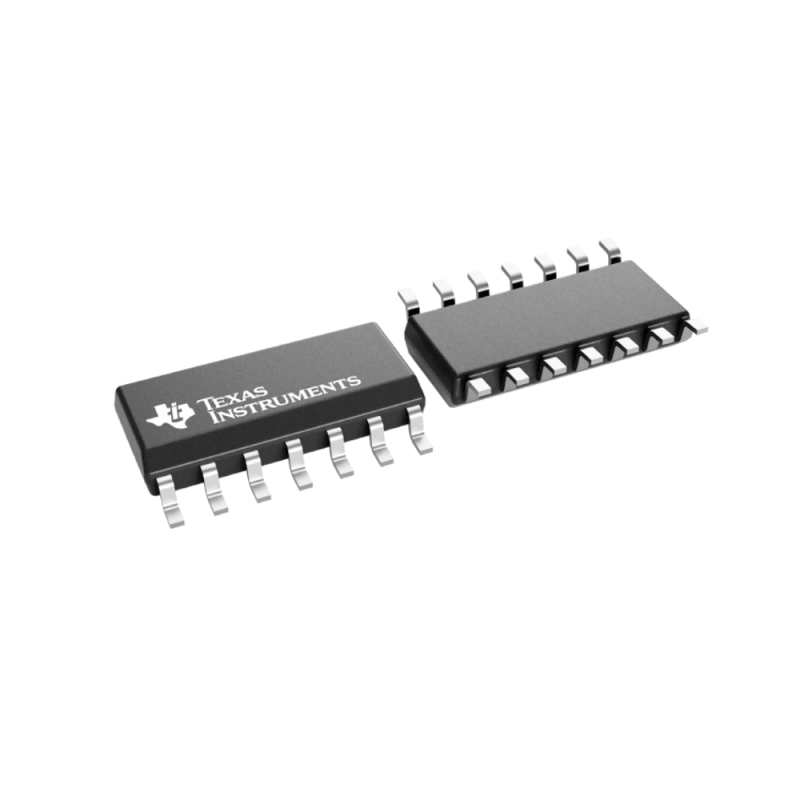

| Package | SOIC-14 |
| Minimum Packing | 2500pcs |
4-ch, 2-V to 6-V buffers with 3-state outputs
Features：
Quality information
|
RatingCatalog |
|
RoHSYes |
|
REACHYes |
|
Lead finish / Ball materialSN | NiPdAu |
|
MSL rating / Peak reflowLevel-1-260C-UNLIM |
|
Quality, reliability View or download |
Packaging information
|
Package | PinsSOIC (D) | 14 |
|
Operating temperature range (°C)-40 to 85 |
|
Package qty | Carrier2,500 | LARGE T&R |

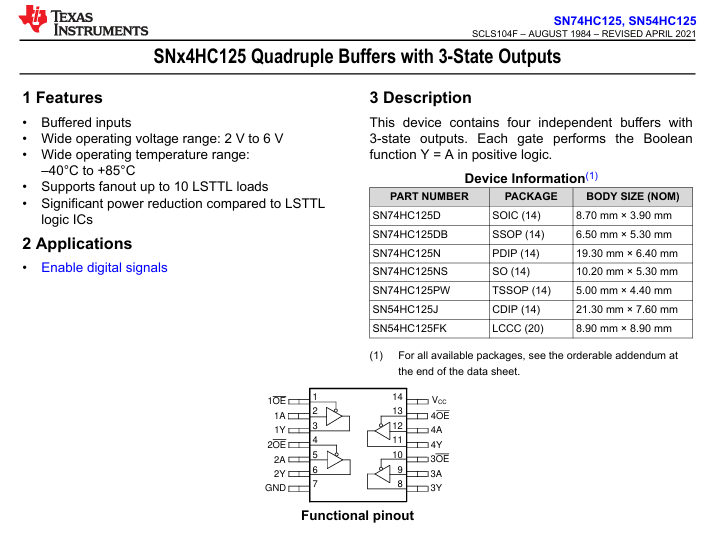

Features for the SN74HC125
Buffered inputs
Wide operating voltage range: 2 V to 6 V
Wide operating temperature range: –40°C to +85°C
Supports fanout up to 10 LSTTL loads
Significant power reduction compared to LSTTL logic ICs
Description for the SN74HC125
This device contains four independent buffers with 3-state outputs. Each gate performs the Boolean function Y = A in positive logic.
