| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 250pcs |

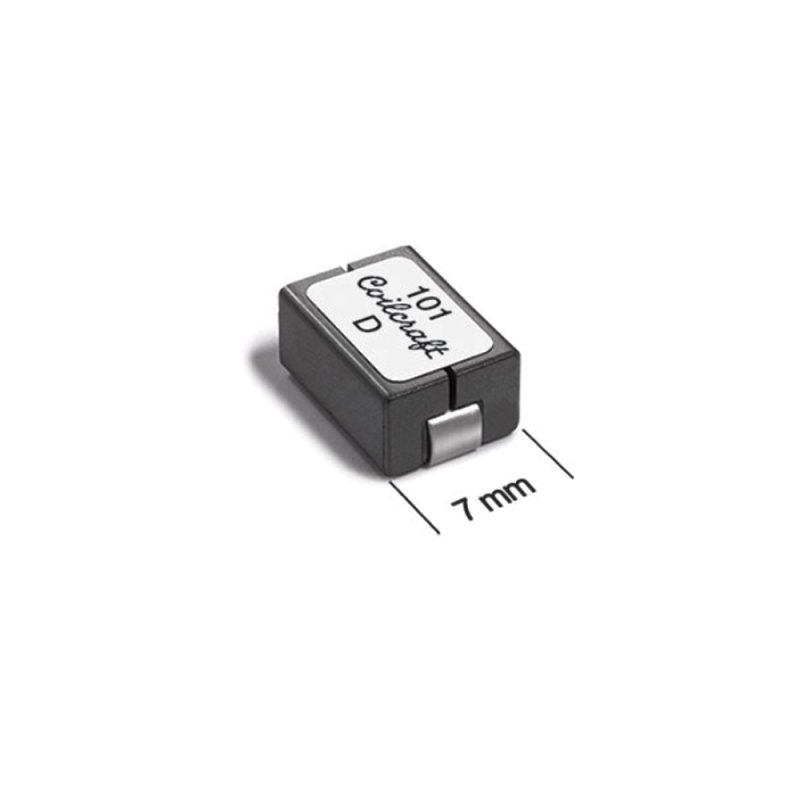

Power Inductors - SMD 150nH Shld 10% 77.1A 390 uOhms
Features：

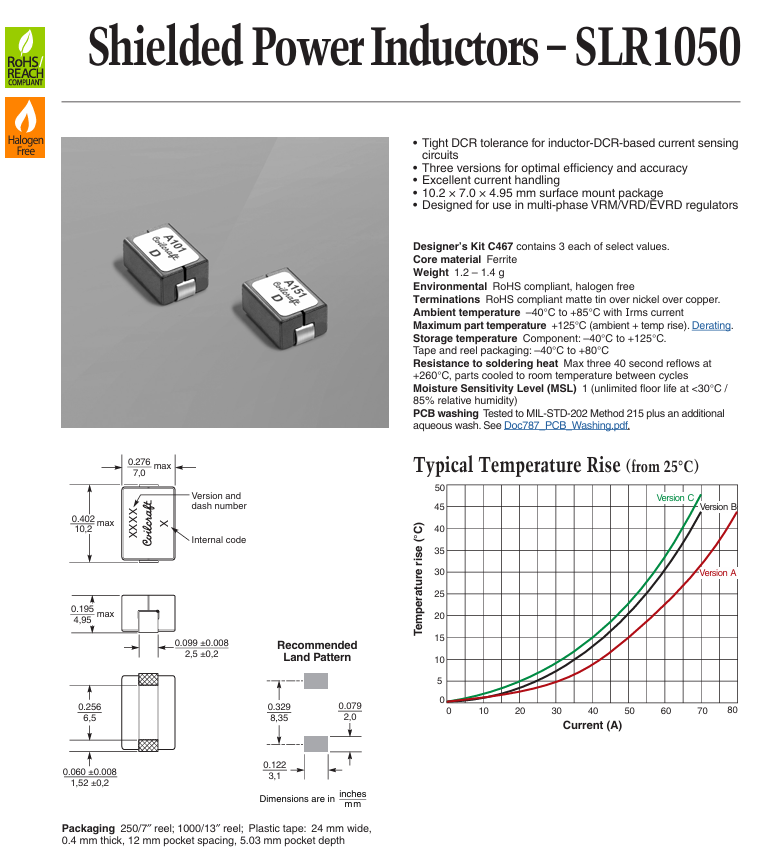

Coilcraft’s SLR1050 Series of high-current shielded power inductors feature sub-milliohm DC resistance and very high current handling. Magnetic shielding and tight DCR tolerances make them ideal for low voltage multi-phase VRM/VRD/EVRD regulators and current sensing circuits.
Tight DCR tolerance for inductor-DCR-based current sensing circuits
Three versions for optimal efficiency and accuracy

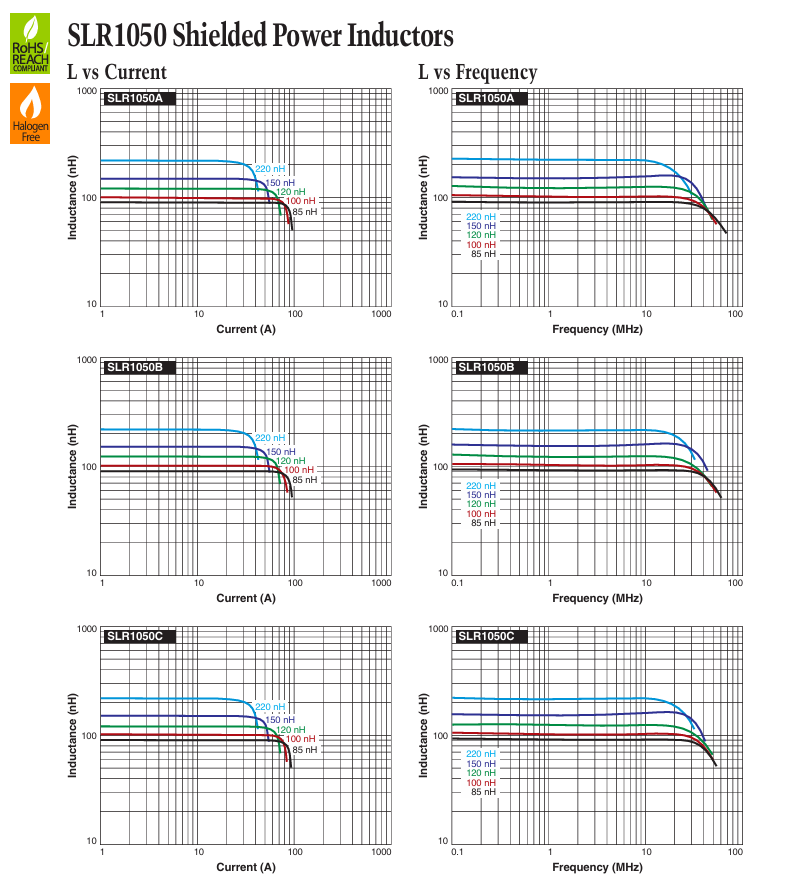

Ferrite construction for flat L vs I with high current
Magnetic shielding allows high-density packaging
Ideal for multi-phase VRM/VRD/EVRD regulators
|
Product Attribute |
Attribute Value |
|
Package / Case: |
10.2 mm x 7 mm x 4.95 mm |
|
Shielding: |
Shielded |
|
Inductance: |
150 nH |
|
Tolerance: |
10 % |
|
Maximum DC Current: |
77.1 A |
|
Maximum DC Resistance: |
390 uOhms |
|
Saturation Current: |
51 A |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 85℃ |
|
Self Resonant Frequency: |
90 MHz |
|
Termination: |
Standard |
|
Length: |
10.2 mm |
|
Width: |
7 mm |
|
Height: |
4.95 mm |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
100 kHz |
Similar Models：
SLR1050A-850KEC SLR1050A-101KEC SLR1050A-121KEC SLR1050A-151KEC SLR1050A-221KEC SLR1050B-850KEC SLR1050B-101KEC SLR1050B-121KEC SLR1050B-151KEC SLR1050B-221KEC SLR1050C-850KEC SLR1050C-101KEC SLR1050C-121KEC SLR1050C-151KEC SLR1050C-221KEC
