| Brand | Coilcraft |
| Date Code | 23+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 500pcs |

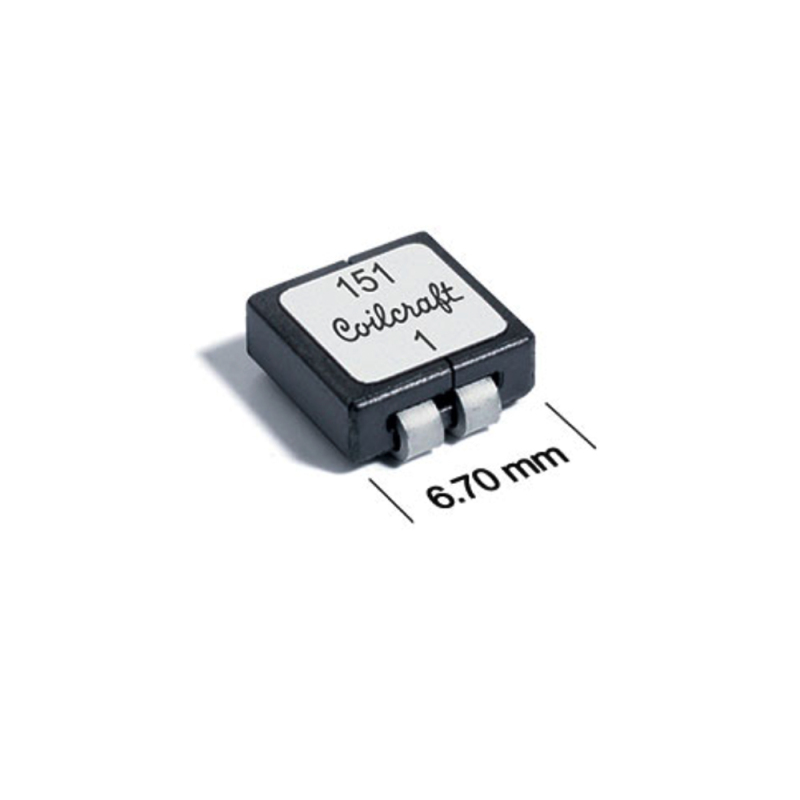

Power Inductors - SMD 50nH Shld 20% 40A 123mOhms
Features：

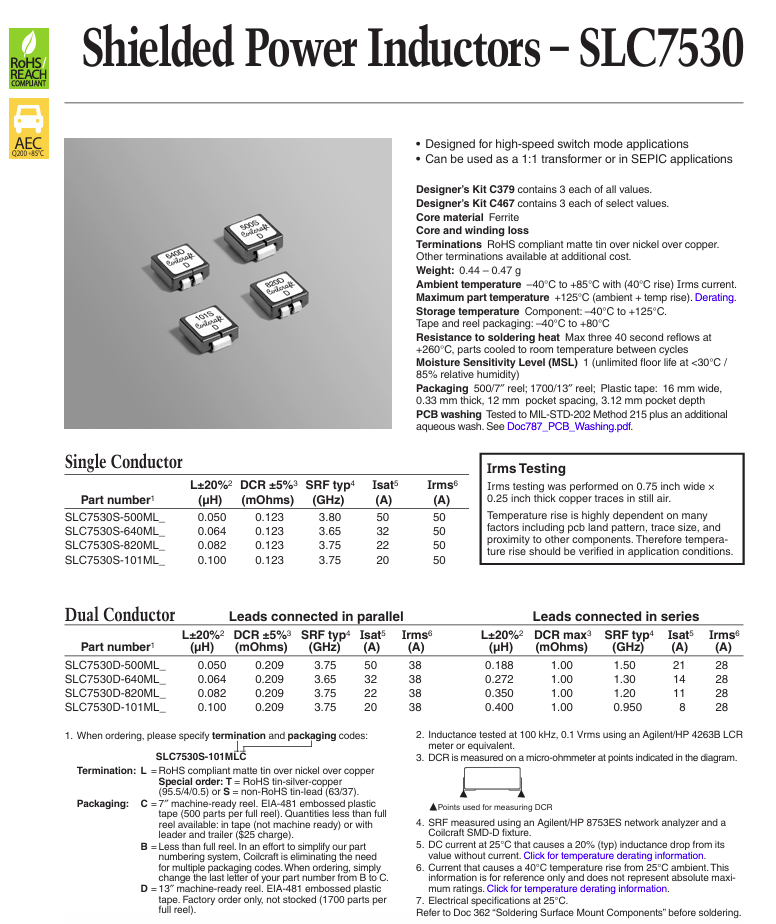

Coilcraft’s SLC7530 Series of high-current shielded power inductors feature sub-milliohm DC resistance and very high current handling. Magnetic shielding and tight DCR tolerances make them ideal for low voltage multi-phase VRM/VRD/EVRD regulators and current sensing circuits.
Sub-milliohm DC resistance and tight DCR tolerance
Ferrite construction for flat L vs I with high current
Magnetic shielding allows high-density packaging
Ideal for multi-phase VRM/VRD/EVRD regulators
AEC-Q200 Grade 3 (−40°C to +85°C)
|
Product Attribute |
Attribute Value |
|

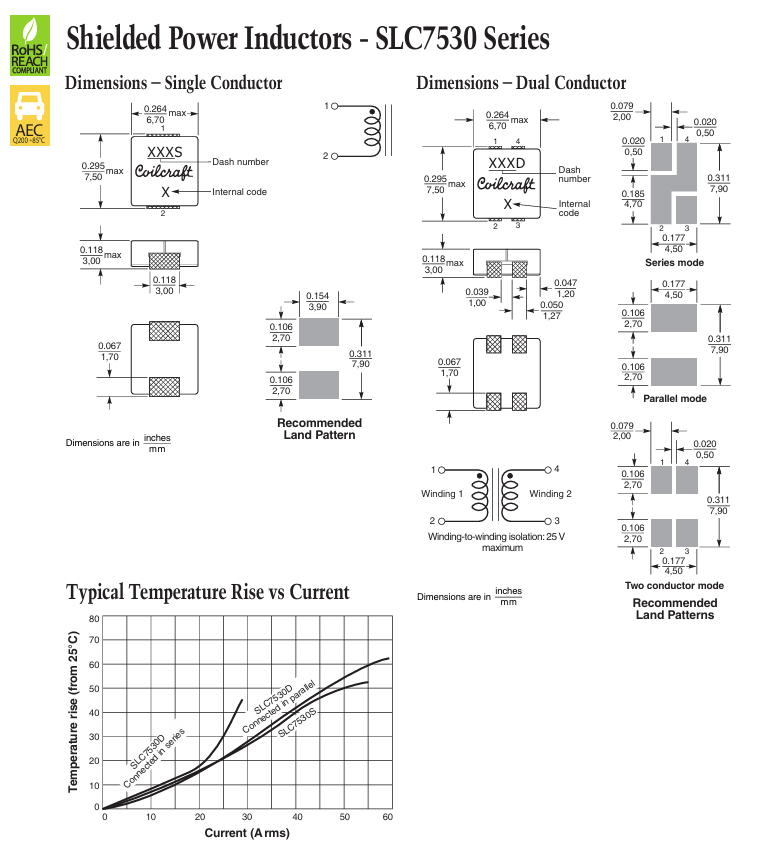

Package / Case: |
6.7 mm x 3 mm x 7.5 mm |
|
Shielding: |
Shielded |
|
Inductance: |
50 nH |
|
Tolerance: |
20 % |
|
Maximum DC Current: |
40 A |
|
Maximum DC Resistance: |
123 uOhms |
|
Saturation Current: |
50 A |
|
Minimum Operating Temperature: |
- 40 C |
|
Maximum Operating Temperature: |
+ 85 C |
|
Self Resonant Frequency: |
3.8 GHz |
|
Termination: |
Standard |
|
Length: |
7.5 mm |
|
Width: |
6.7 mm |
|
Height: |
3 mm |
|
Core Material: |
Ferrite |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
100 kHz |
|
Unit Weight: |
470 mg |
Similar Models：
SLC7530S-500MLC SLC7530S-640MLC SLC7530S-820MLC SLC7530S-101MLC SLC7530D-500MLC SLC7530D-640MLC SLC7530D-820MLC SLC7530D-101MLC
