| Brand | Coilcraft |
| Date Code | 25+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 200pcs |

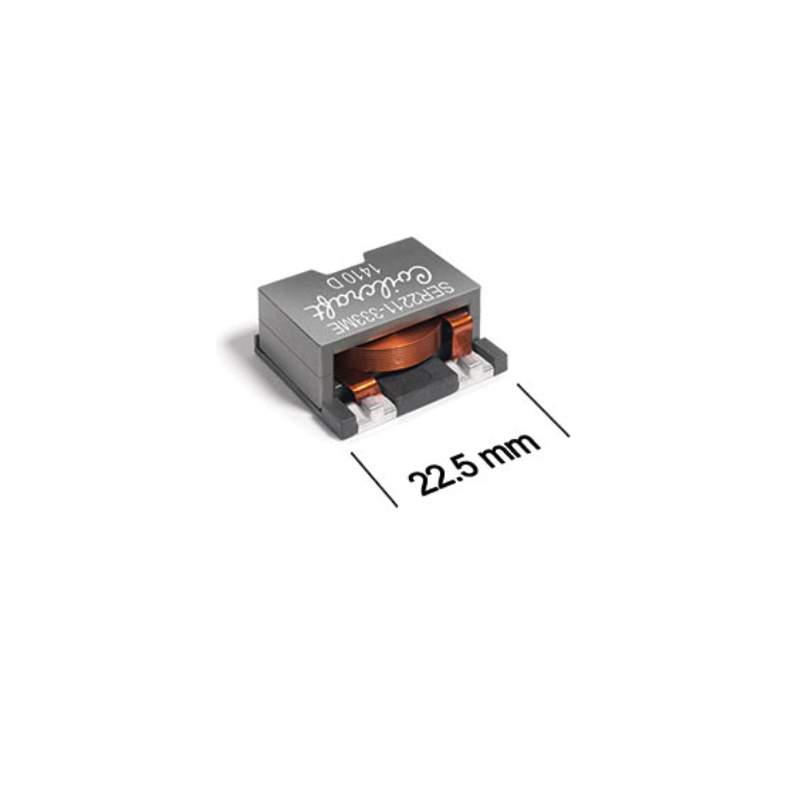

Power Inductors - SMD 47uH Shld 20% 7.6A 10.7mOhms
Features：

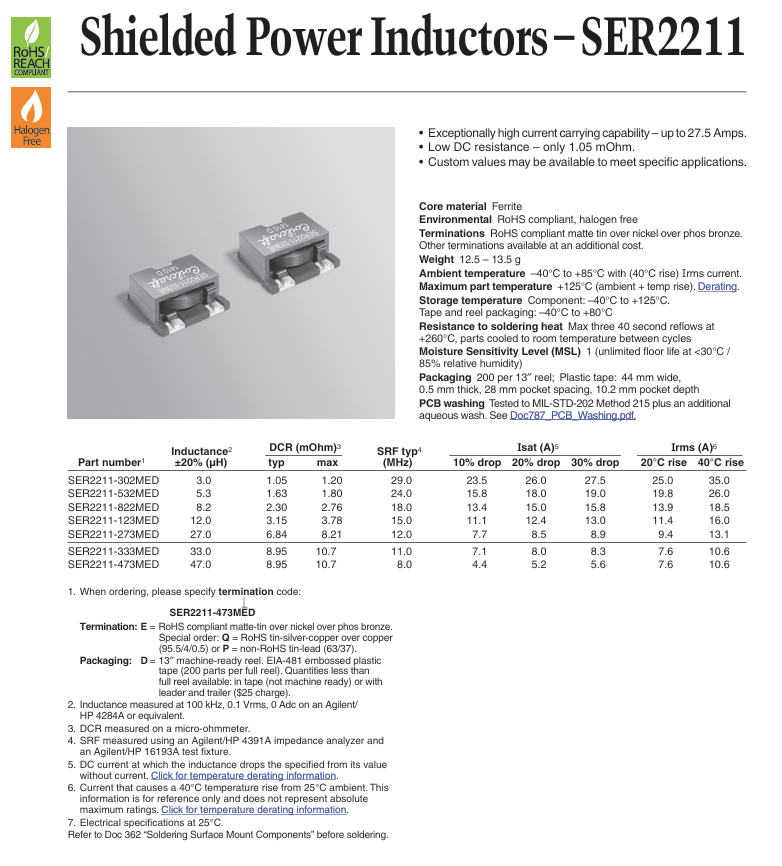

SER2211 Series high-current, high-inductance power inductors feature a flat-wire construction, resulting in exceptionally low DC resistance. They come in a wide range of sizes and inductance values for POL, VRM, VRD, and other high power applications.
Rugged flat wire construction
Exceptionally low DC resistance
Ferrite core for flat L vs. I characteristics
Magnetically shielded to minimize EMI
|
Product Attribute |
Attribute Value |
|
Package / Case: |
19.2 mm x 10.5 mm x 22.5 mm |
|
Shielding: |
Shielded |
|
Inductance: |
47 uH |
|
Tolerance: |
20 % |
|
Maximum DC Current: |
10.6 A |
|
Maximum DC Resistance: |
10.7 mOhms |
|
Saturation Current: |
5.6 A |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 85℃ |
|
Self Resonant Frequency: |
8 MHz |
|
Termination: |
Standard |
|

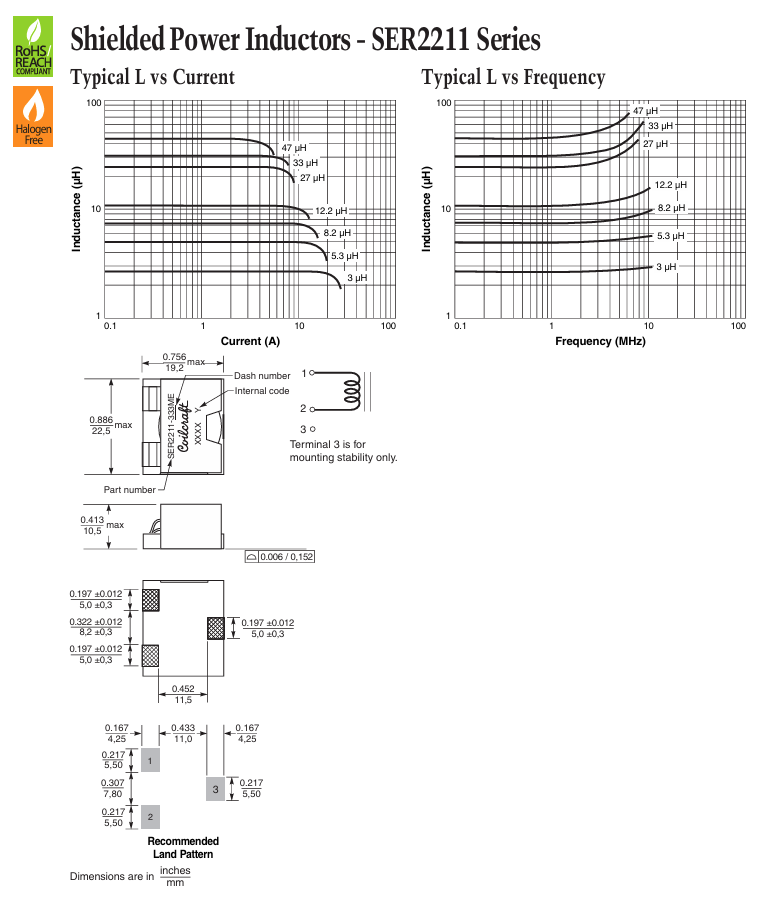

Length: |
22.5 mm |
|
Width: |
19.2 mm |
|
Height: |
10.5 mm |
|
Core Material: |
Ferrite |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
100 kHz |
|
Unit Weight: |
13.500 mg |
Similar Models：
SER2211-302MED SER2211-532MED SER2211-822MED SER2211-123MED SER2211-273MED SER2211-333MED SER2211-473MED
