| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 200pcs |

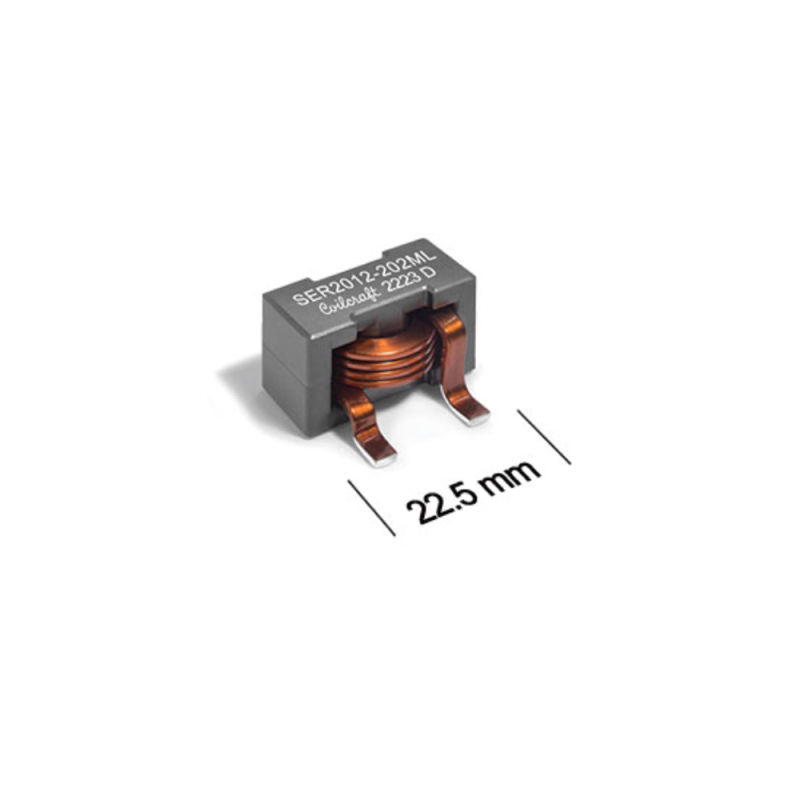

Power Inductors - SMD 1uH Shld 20% 45A 1mOhms AECQ2
Features：

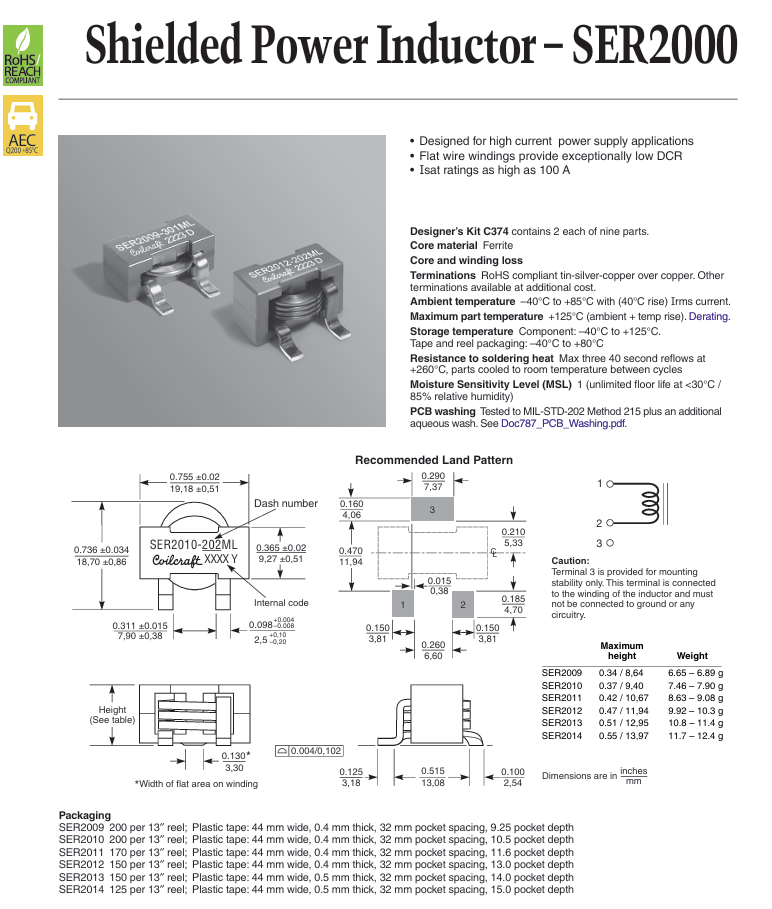

SER20xx (SER2000) Series high-current, high-inductance power inductors feature a flat-wire construction, resulting in exceptionally low DC resistance. They come in a wide range of sizes and inductance values for POL, VRM, VRD, and other high power applications.
Rugged flat wire construction
Exceptionally low DC resistance

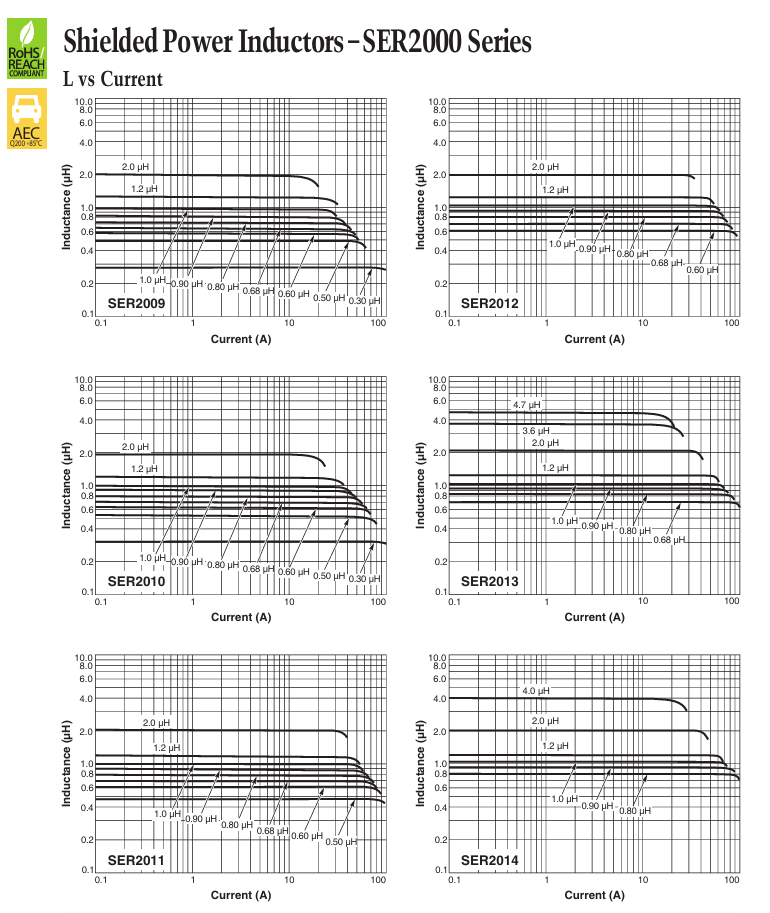

Ferrite core for flat L vs. I characteristics
Magnetically shielded to minimize EMI
AEC-Q200 qualified
|

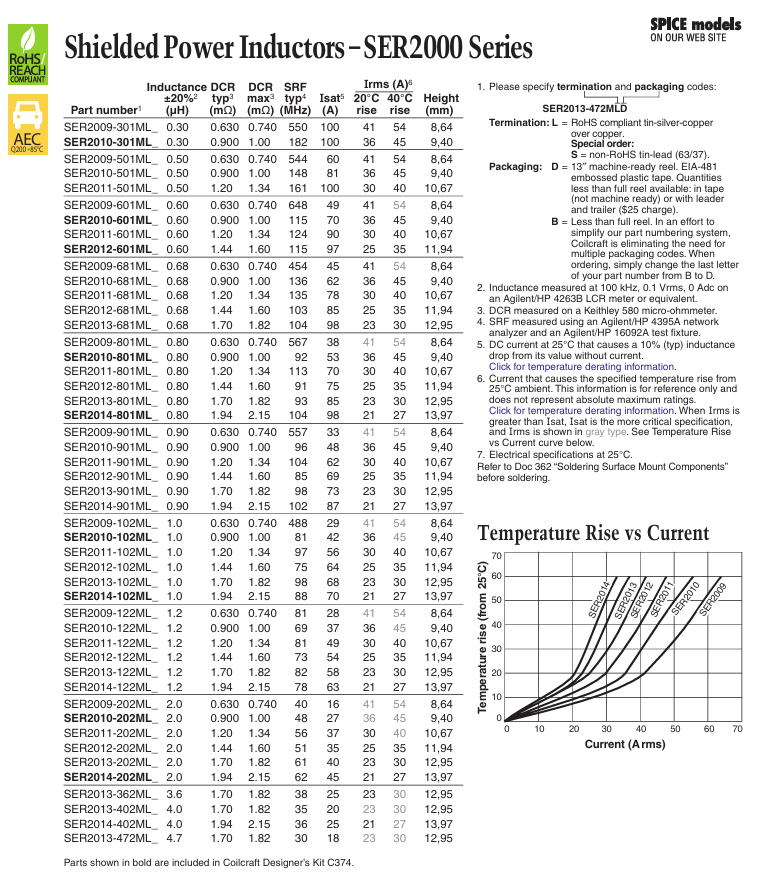

Product Attribute |
Attribute Value |
|
Inductance: |
1 uH |
|
Tolerance: |
20 % |
|
Maximum DC Current: |
45 A |
|
Maximum DC Resistance: |
1 mOhms |
|
Saturation Current: |
42 A |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 85℃ |
|
Self Resonant Frequency: |
81 MHz |
|
Termination: |
Standard |
|
Length: |
19.18 mm |
|
Width: |
18.7 mm |
|
Height: |
9.4 mm |
|
Core Material: |
Ferrite |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
100 kHz |
|
Unit Weight: |
7.600 g |
Similar Models：
SER2009-301MLD SER2010-301MLD SER2009-501MLD SER2010-501MLD SER2011-501MLD SER2009-601MLD SER2010-601MLD SER2011-601MLD SER2012-601MLD SER2009-681MLD SER2010-681MLD SER2011-681MLD SER2012-681MLD SER2013-681MLD SER2009-801MLD SER2010-801MLD SER2011-801MLD SER2012-801MLD SER2013-801MLD SER2014-801MLD SER2009-901MLD SER2010-901MLD SER2011-901MLD SER2012-901MLD SER2013-901MLD SER2014-901MLD SER2009-102MLD SER2010-102MLD SER2011-102MLD SER2012-102MLD SER2013-102MLD SER2014-102MLD SER2009-122MLD SER2010-122MLD SER2011-122MLD SER2012-122MLD SER2013-122MLD SER2014-122MLD SER2009-202MLD SER2010-202MLD SER2011-202MLD SER2012-202MLD SER2013-202MLD SER2014-202MLD SER2013-362MLD SER2013-402MLD SER2014-402MLD SER2013-472MLD
