| Brand | Coilcraft |
| Date Code | 2222 |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 250pcs |

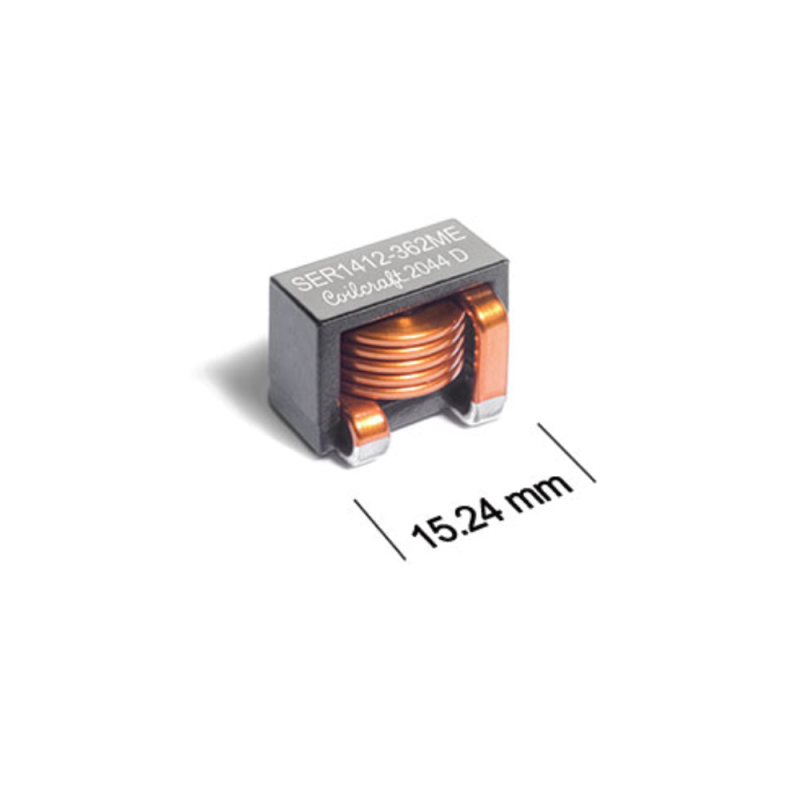

Power Inductors - SMD 1uH Shld 20% 37A 1.43mOhms AECQ2
Features：

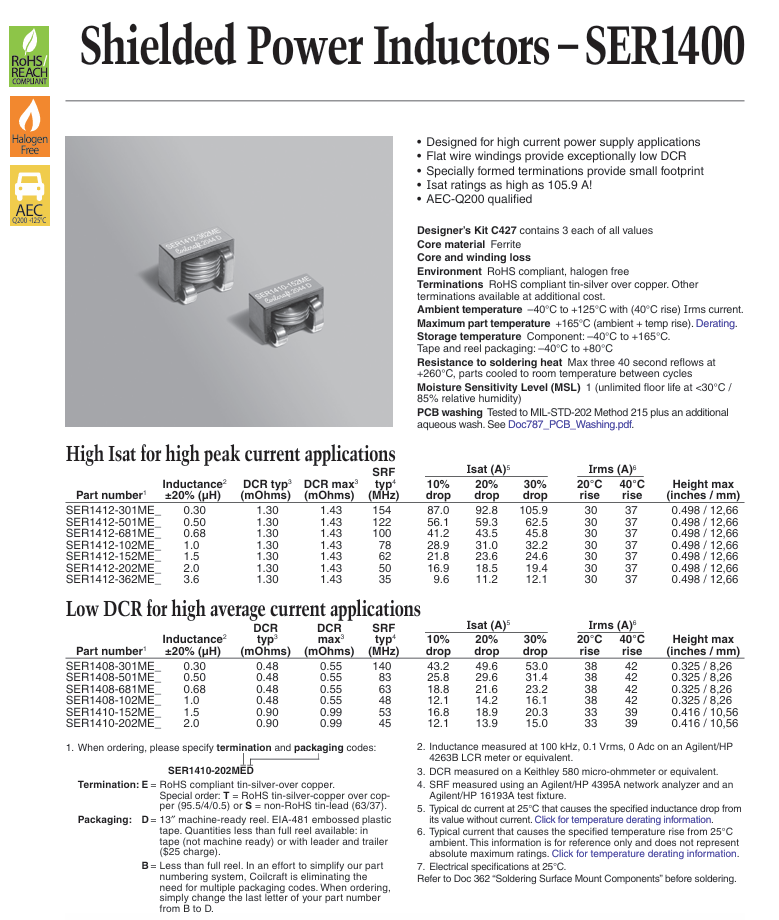

SER14xx (or SER1400) Series high-current, high-inductance power inductors feature a flat-wire construction, resulting in exceptionally low DC resistance. They come in a wide range of sizes and inductance values for POL, VRM, VRD, and other high power applications.
Rugged flat wire construction
Exceptionally low DC resistance
Ferrite core for flat L vs. I characteristics
Magnetically shielded to minimize EMI
AEC-Q200 qualified
|
Product Attribute |
Attribute Value |
|

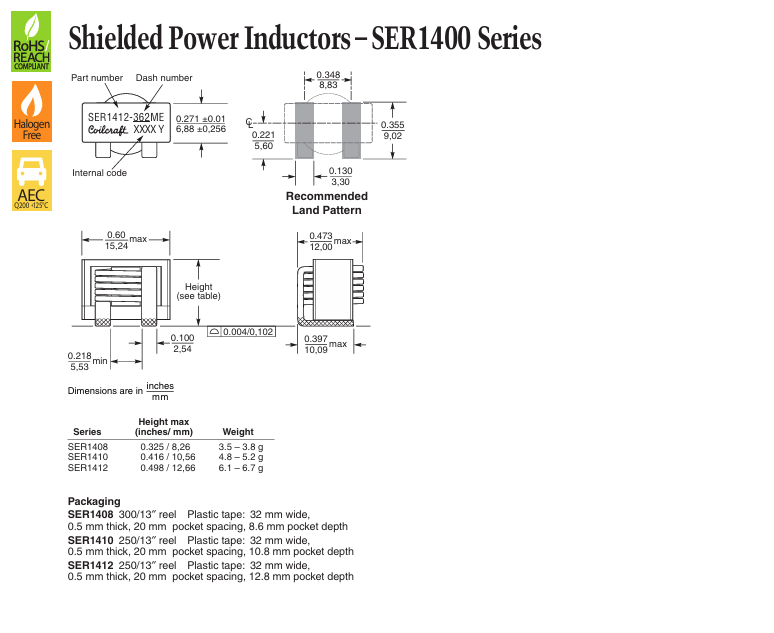

Package / Case: |
12 mm x 12.66 mm x 15.24 mm |
|
Shielding: |
Shielded |
|

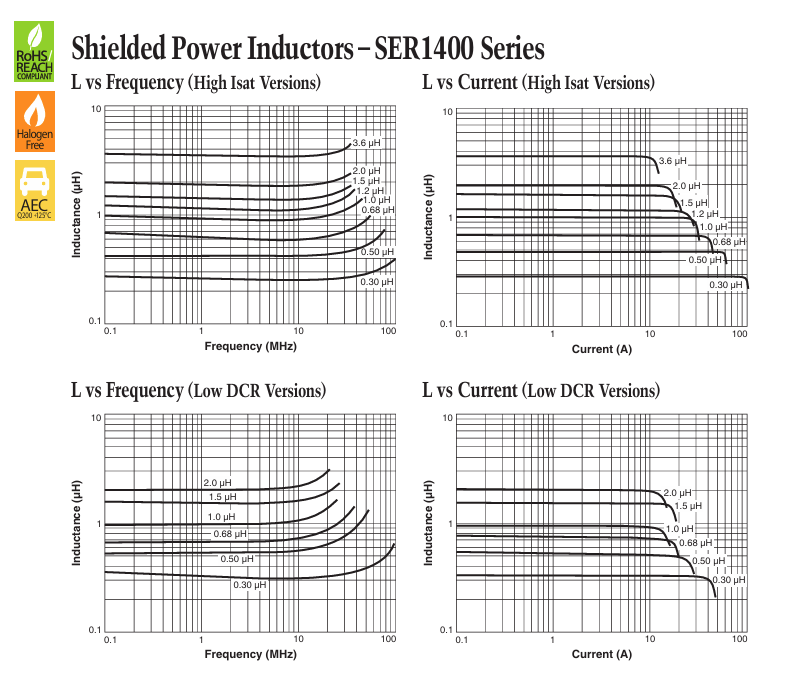

Inductance: |
1 uH |
|
Tolerance: |
20 % |
|
Maximum DC Current: |
37 A |
|
Maximum DC Resistance: |
1.43 mOhms |
|
Saturation Current: |
32.2 A |
|
Minimum Operating Temperature: |
- 40 C |
|
Maximum Operating Temperature: |
+ 125 C |
|
Self Resonant Frequency: |
78 MHz |
|
Termination: |
Standard |
|
Length: |
15.24 mm |
|
Width: |
12 mm |
|
Height: |
12.66 mm |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
100 kHz |
|
Unit Weight: |
6.700 g |
Similar Models：
SER1408-301MED SER1412-301MED SER1408-501MED SER1412-501MED SER1408-81MED SER1412-681MED SER1408-102MED SER1412-102MED SER1410-152MED SER1412-152MED SER1410-202MED SER1412-202MED SER1412-362MED
