Home > In Stock ! LEUZE Safety switch S20-P4C3-M20-LH
  • LEUZE S20-P4C3-M20-LH
  • LEUZE S20-P4C3-M20-LH
  • LEUZE S20-P4C3-M20-LH
  • LEUZE S20-P4C3-M20-LH
1/1
  • LEUZE S20-P4C3-M20-LH
  • LEUZE S20-P4C3-M20-LH
  • LEUZE S20-P4C3-M20-LH
  • LEUZE S20-P4C3-M20-LH

In Stock ! LEUZE Safety switch S20-P4C3-M20-LH

Brand:LEUZE
Date Code:25+
Packing:Box
Package:Sensor
Minimum Packing:1pcs
$0.00 $39.10
Received successfully
Coupon Code
CONTINUE SHOPPING
Discount
  • GET $10.00 OFF ON ORDERS OVER $100.00
Quantity
-
+
0 In Stock ; Ship In 48 Hours
  • LEUZE S20-P4C3-M20-LH
  • LEUZE S20-P4C3-M20-LH
  • LEUZE S20-P4C3-M20-LH
  • LEUZE S20-P4C3-M20-LH
  • LEUZE S20-P4C3-M20-LH
  • LEUZE S20-P4C3-M20-LH
  • LEUZE S20-P4C3-M20-LH
  • LEUZE S20-P4C3-M20-LH
1/1
  • LEUZE S20-P4C3-M20-LH
  • LEUZE S20-P4C3-M20-LH
  • LEUZE S20-P4C3-M20-LH
  • LEUZE S20-P4C3-M20-LH

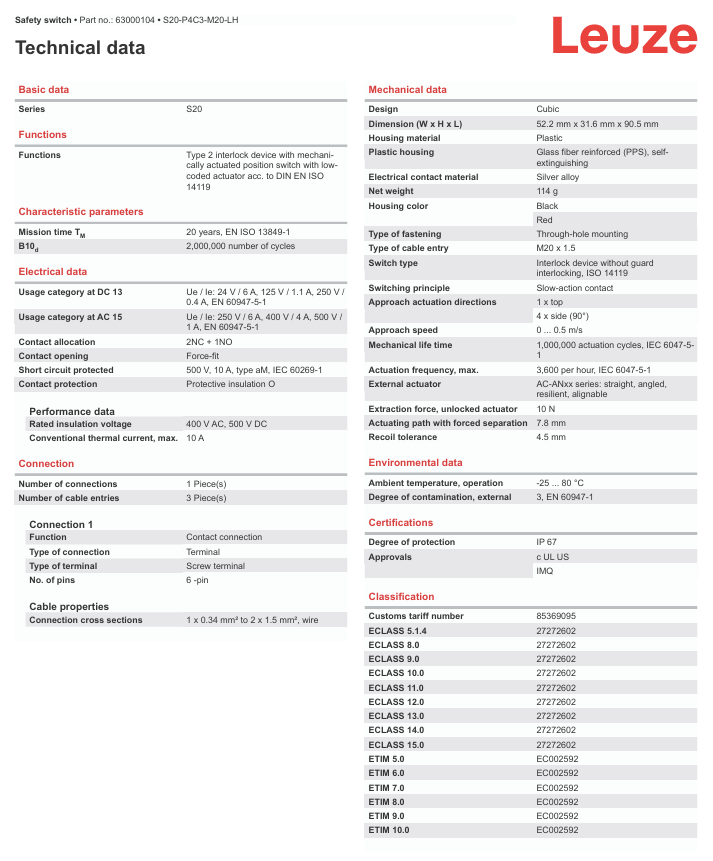

  • Description
Part no.: 63000104

Series:S20
Rated insulation voltage:400 V AC, 500 V DC
Conventional thermal current, max.:10 A
Design:Cubic
Dimension (W x H x L):52.2 mm x 31.6 mm x 90.5 mm
Housing material:Plastic
Plastic housing:Glass fiber reinforced (PPS), self-extinguishing
Electrical contact material:Silver alloy
Net weight:114 g
Housing color:Black  Red
Type of fastening:Through-hole mounting
Type of cable entry:M20 x 1.5
Approach speed:0 ... 0.5 m/s
Mechanical life time:1,000,000 actuation cycles, IEC 6047-5-1
Actuation frequency, max.:3,600 per hour, IEC 6047-5-1
External actuator:AC-ANxx series: straight, angled, resilient, alignable
Extraction force, unlocked actuator:10 N
Actuating path with forced separation:7.8 mm
Recoil tolerance:4.5 mm
