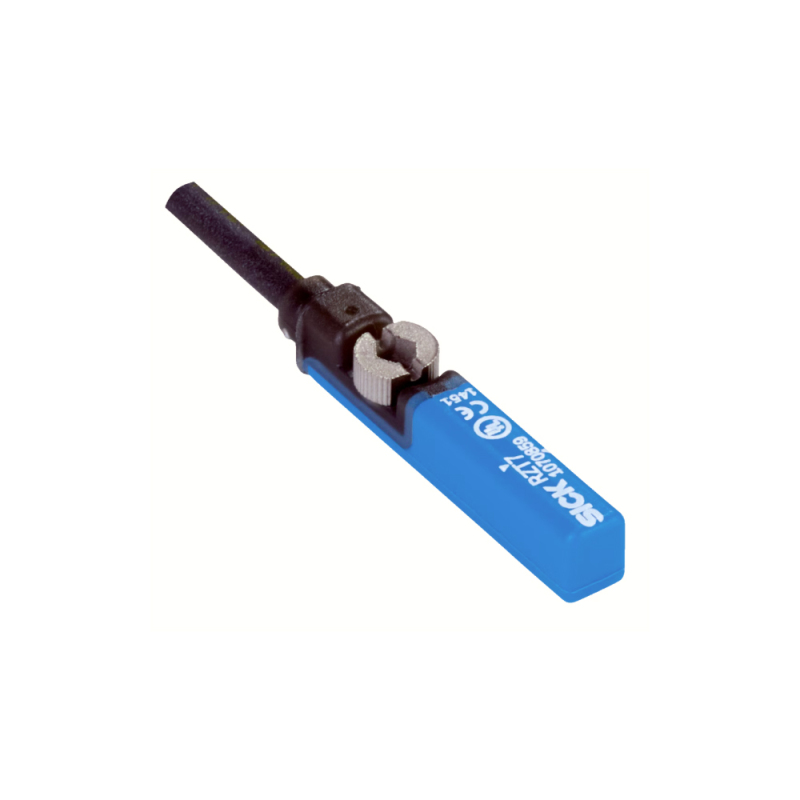

In Stock ! SICK Cylinder sensors RZT7-03ZRS-KWB

Part no.: 1070853

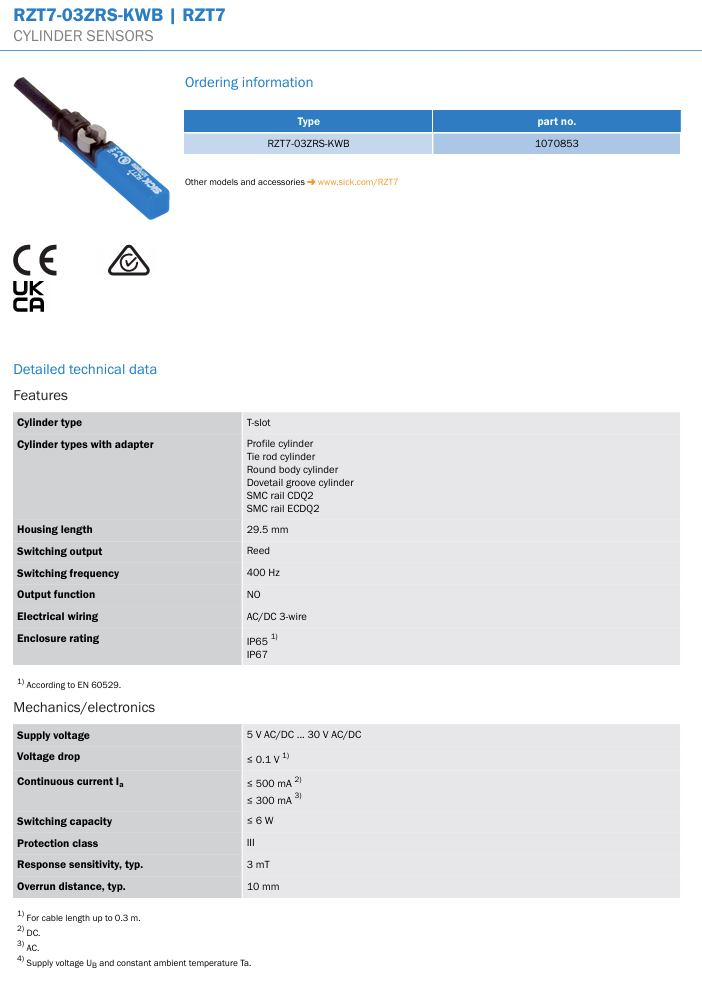

Features：

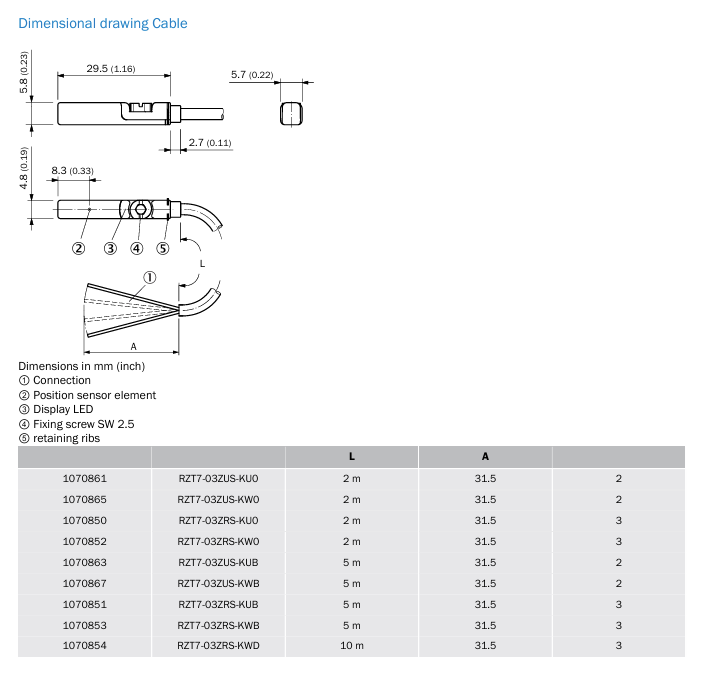

Housing length：29.5 mm

Switching output：Reed

Switching frequency：400 Hz

Output function：NO

Electrical wiring：AC/DC 3-wire

Enclosure rating：IP65  IP67

Supply voltage：5 V AC/DC ... 30 V AC/DC

Voltage drop：≤ 0.1 V

Continuous current Ia：≤ 500 mA   ≤ 300 mA

Switching capacity：≤ 6 W

Protection class：III

Response sensitivity, typ.：3 mT

Overrun distance, typ.：10 mm

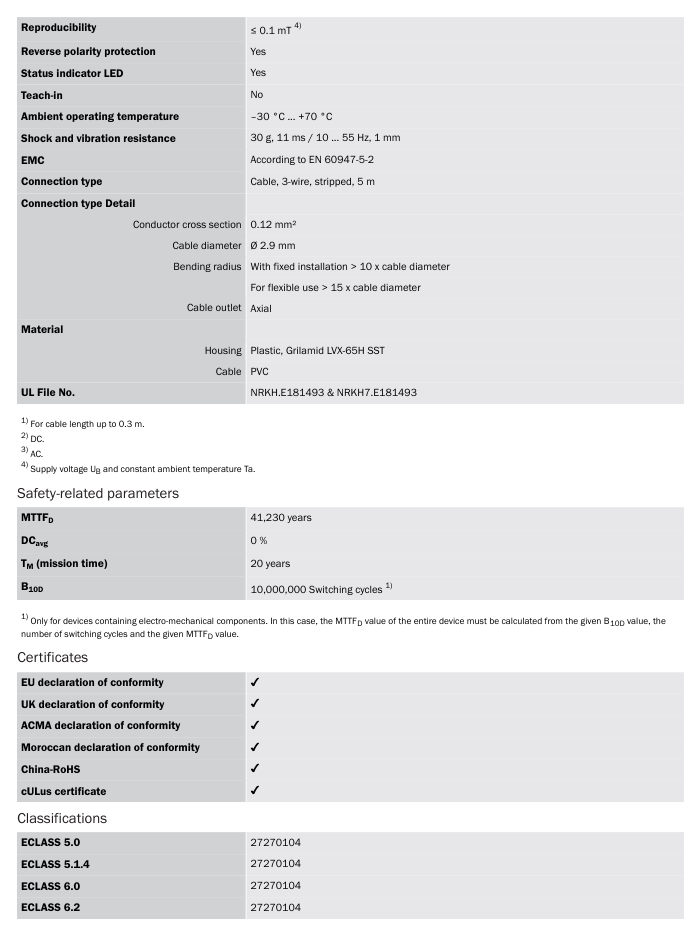

Reproducibility：≤ 0.1 mT

Reverse polarity protection：Yes

Status indicator LED：Yes

Teach-in：No

Ambient operating temperature：–30 °C ... +70 °C

Shock and vibration resistance：30 g, 11 ms / 10 ... 55 Hz, 1 mm

Conductor cross section：0.12 mm²

Cable diameter：Ø 2.9 mm

Cylinder sensors

RZT7Reed contact cylinder sensors: for T-slot cylinders

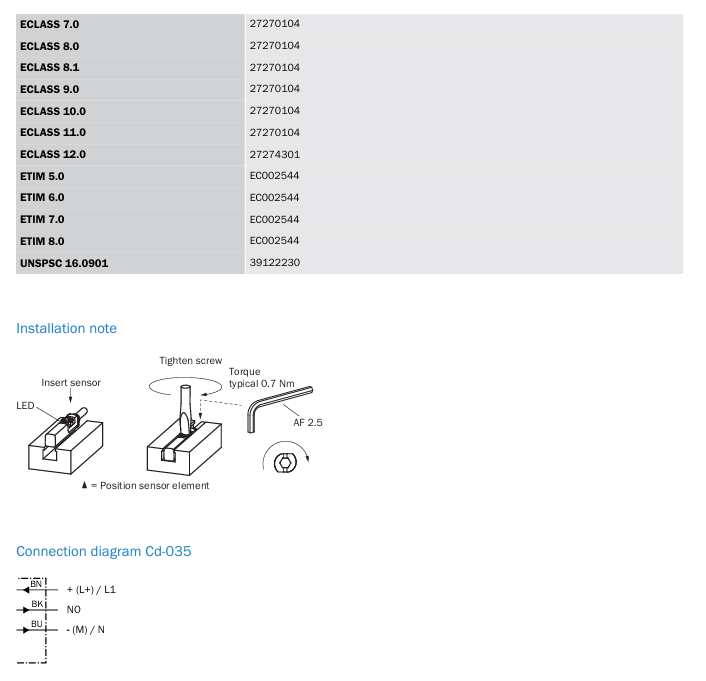

The SICK RZT7 cylinder sensor with reed contact reliably detects the piston position in pneumatic drives. The RZT7 can be mounted directly into all cylinders with standard T-slots. SICK also has an extensive range of adapters which enable the RZT7 to be used with other cylinder types. The RZT7 is characterized by its simple mounting principle: Insert the sensor into the slot and rotate the fixing screw a quarter turn to fix it securely to the cylinder.
