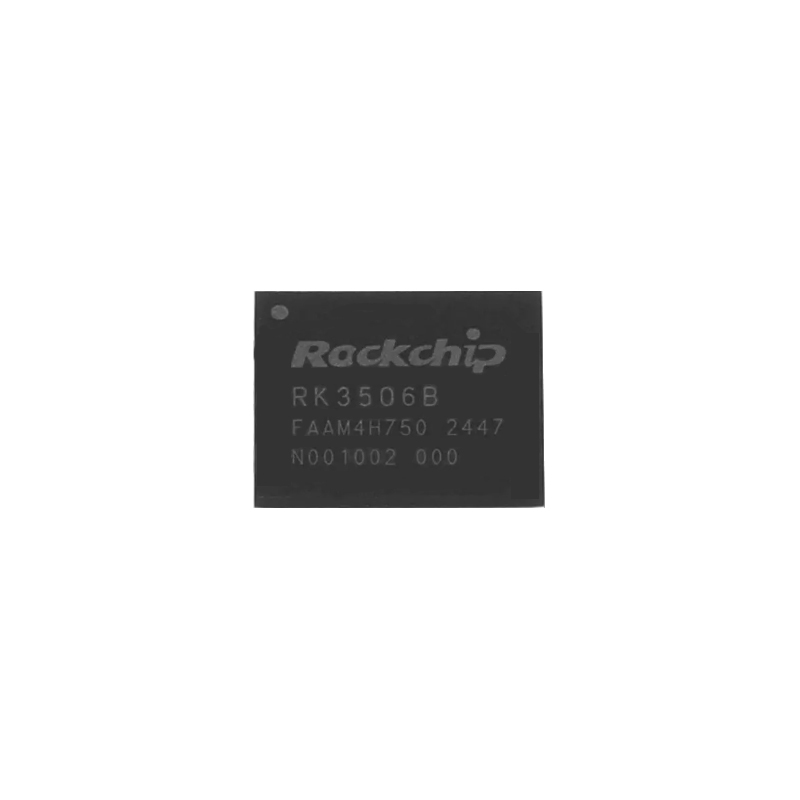

RK3506B is a high‑performance triple‑core Cortex‑A7 application processor designed for smart voice interaction, audio input/output processing, image output processing and other digital multimedia applications. It integrates a 2D hardware engine and display output engine to minimize CPU overhead and satisfy image display requirements. Embedded with abundant peripheral interfaces such as SAI, PDM, SPDIF, Audio DSM, Audio ADC, USB2 OTG, RMII, CAN, etc., the processor meets diverse application‑development requirements and reduces hardware‑development complexity and costs. The RK3506B features a high‑performance external memory interface (DDR2/DDR3/DDR3L) to meet stringent memory‑bandwidth requirements.
Triple‑core ARM Cortex‑A7 CPU
ARM architecture v7‑A instruction set
Supports ARM Neon advanced SIMD (Single Instruction Multiple Data) for accelerated media and signal‑processing computations
Incorporates VFPv4‑D32 hardware supporting single‑precision and double‑precision arithmetic operations
Integrated 16 KB L1 instruction cache, 16 KB L1 data cache
128 KB unified system L2 cache
TrustZone technology support
One independent voltage domain with DVFS support
BootROM
System SRAM
