| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 250pcs |

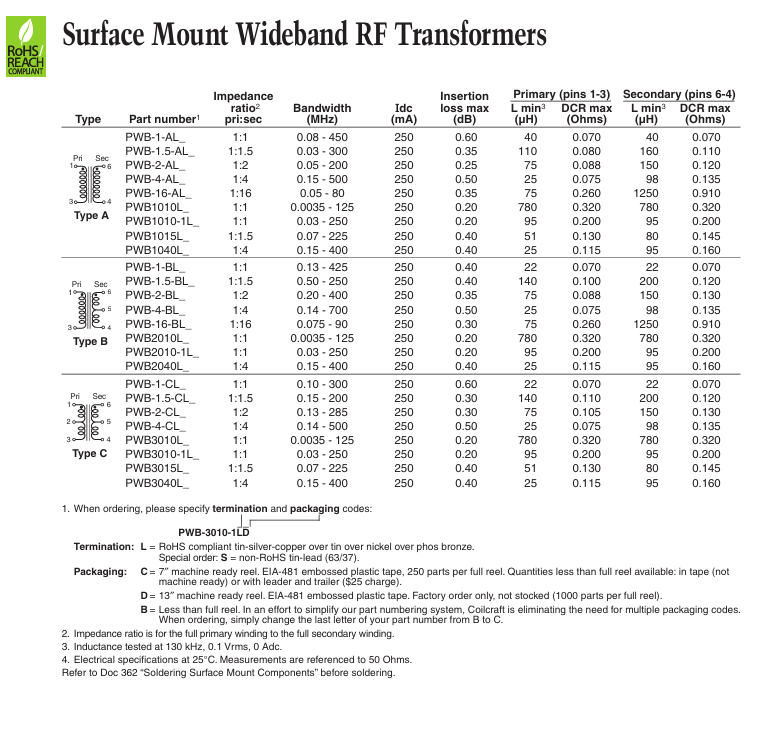

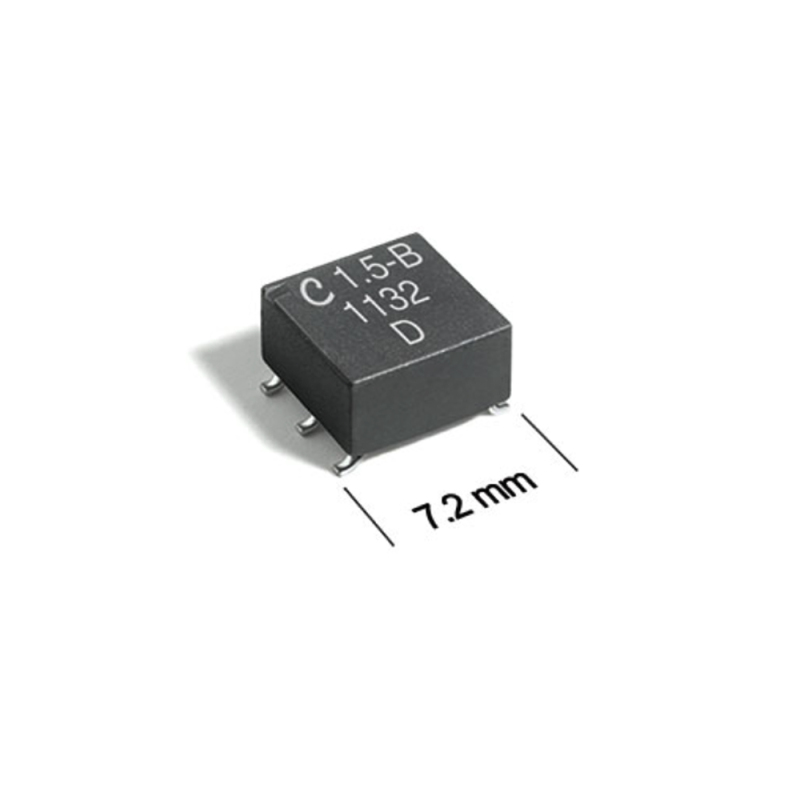

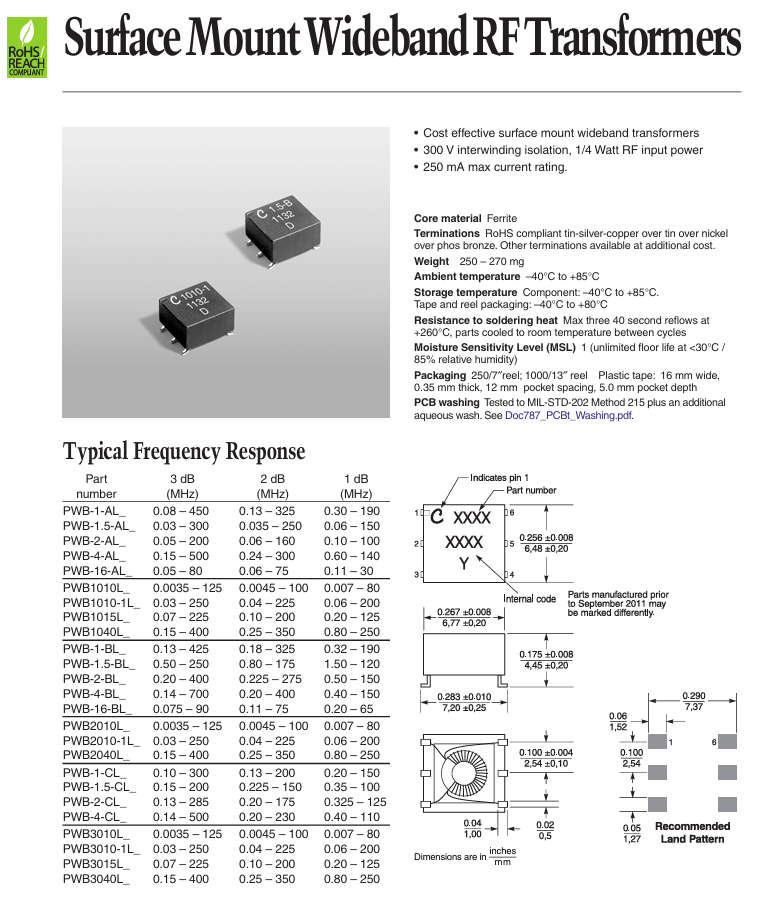

Audio Transformers / Signal Transformers PWB Wideband RF 1:1 0.0035-125 MHz
Features：
|
Product Attribute |
Attribute Value |
|
Frequency Range: |
3.5 kHz to 125 MHz |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 85℃ |
|
Number of Channels: |
Single |
|
Application: |
Wideband |
|
Length: |
6.77 mm |
|
Width: |
6.48 mm |
|
Height: |
4.45 mm |
|
Product Type: |
Audio & Signal Transformers |
|
Unit Weight: |
270 mg |
Similar Models：
PWB-1.5-ALC PWB-1.5-BLC PWB-1.5-CLC PWB1010LC PWB1010-1LC PWB1015LC PWB1040LC PWB-16-ALC PWB-16-BLC PWB-1-ALC PWB-1-BLC PWB-1-CLC PWB2010LC PWB2010-1LC PWB2040LC PWB-2-ALC PWB-2-BLC PWB-2-CLC PWB3010LC PWB3010-1LC PWB3015LC PWB3040LC PWB-4-ALC PWB-4-BLC PWB-4-CLC
