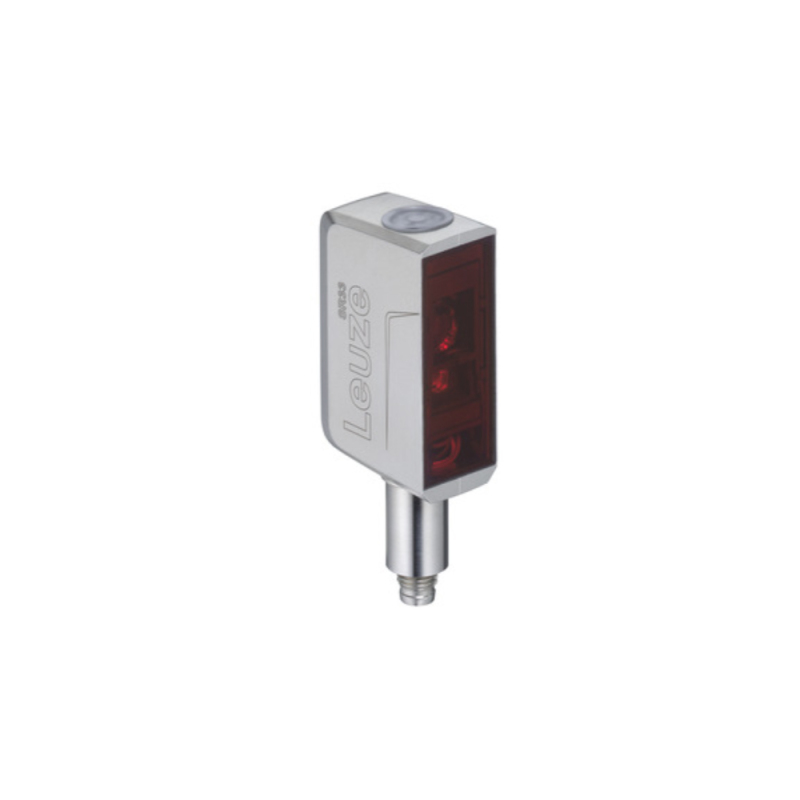

Polarized retro-reflective photoelectric sensor
Features：Series：33C
Operating principle：Reflection principle
Operating range：0.05 ... 14 m (guaranteed operating range), With reflector TK(S) 100x100
Operating range limit：0.05 ... 16 m (typical operating range), With reflector TK(S) 100x100
Light source：Power PinPoint® LED, Red
Wavelength：645 nm
Supply voltage UB：10 ... 30 V, DC, Incl. residual ripple
Residual ripple：0 ... 15 %, From UB
Open-circuit current：0 ... 20 mA
Switching frequency：1,500 Hz
Response time：0.33 ms
Readiness delay：300 ms

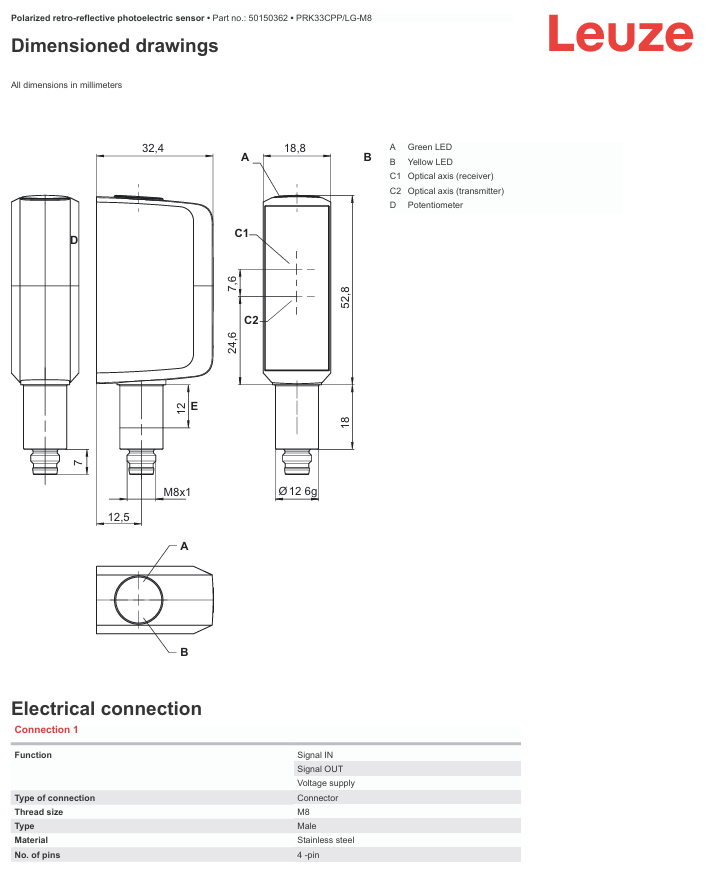

Dimension (W x H x L)：18.8 mm x 52.8 mm x 32.4 mm
Net weight：120 g
Ambient temperature, operation：-40 ... 70 °C
Ambient temperature, storage：-40 ... 70 °C
Degree of protection：IP 67 IP 68 IP 69K
Similar Models:PRK 18/44 L.43 IPRK 18/V L.03 IPRK 18/A L.46 IPRK 18/A.1 L.4 PRK 18/24 DL.42
IPRK 18/4 DL.41 PRK 18/24 DL.46 IPRK 18/A L.4 PRK18B.XT3/P4-M12 PRK18B.TT3/6G-M12
PRK18B.TT3/P4-M12 PRK18B.XT2/4P-M12 PRK18B.XT3/4P-M12 PRK18B.XTT3/4P-M12
PRK18B.FXT3/2T-6000 PRK18B.TT3/LP-M12 PRK18B.TT3/4P-M12 PRK18B.TT3/2N-M12
PRK18B.TT3/2N-6000 RK18B.T2/4P-M12 RK18B.T2/2N-M12 RK18B.1/4P-M12
RK18B.1/4P-6000 RK18B.1/2N-M12 RK18B.1/2N-6000 PRK18B.FXT3/4P-M12
PRK18B.FXT3/2N-M12 PRK18B.T3/4P-M12 PRK18B.T3/2N-M12
