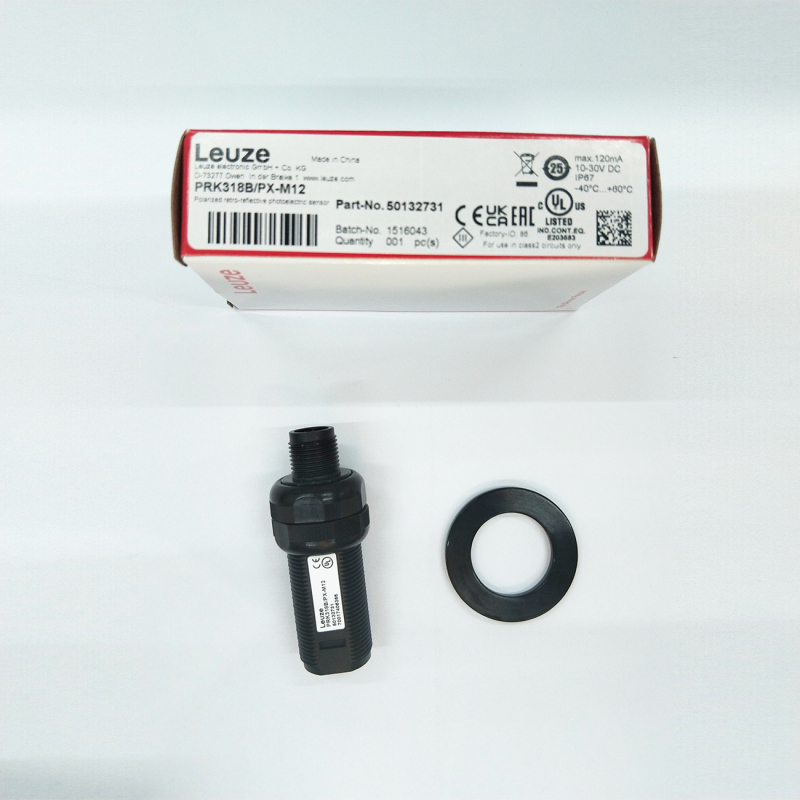

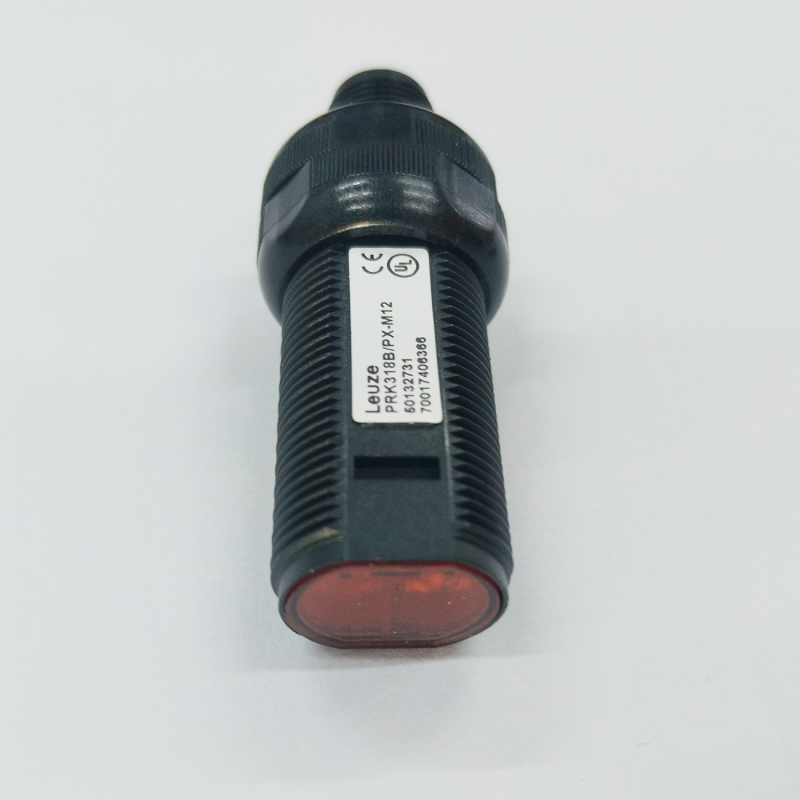

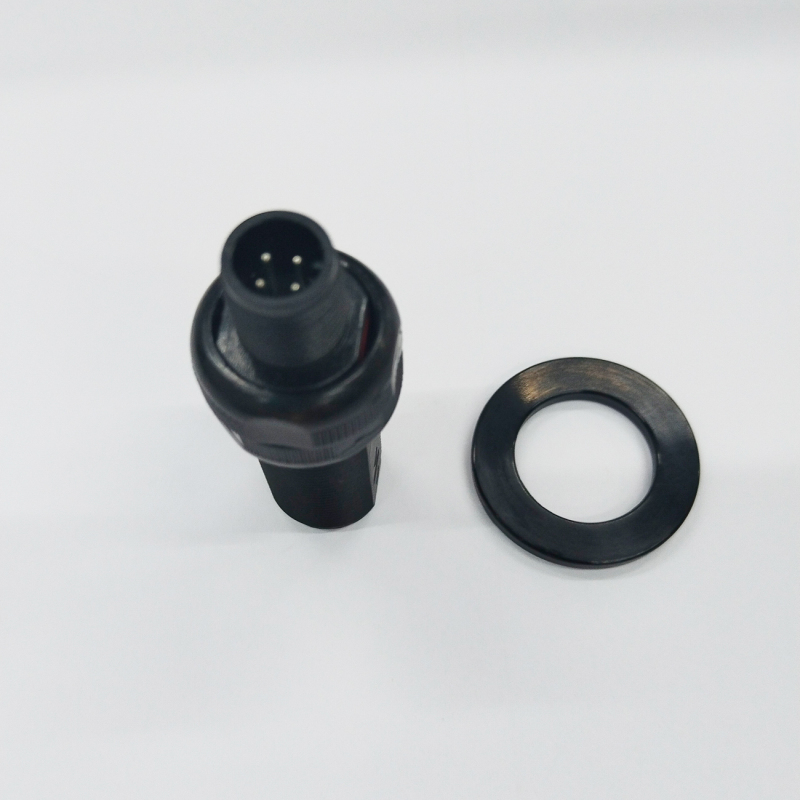

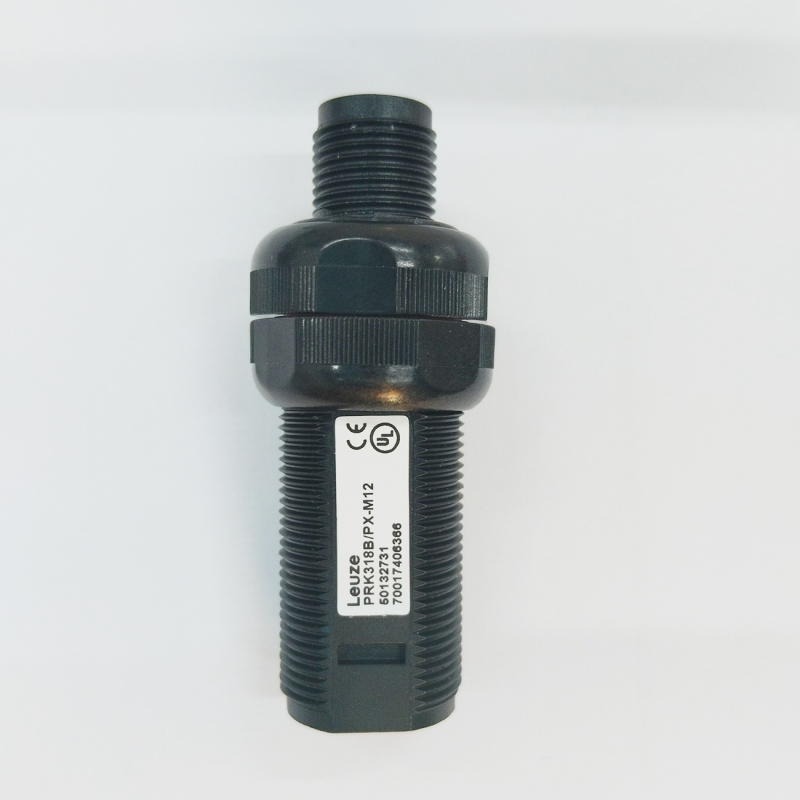

Polarized retro-reflective photoelectric sensor
Part no.: 50132731

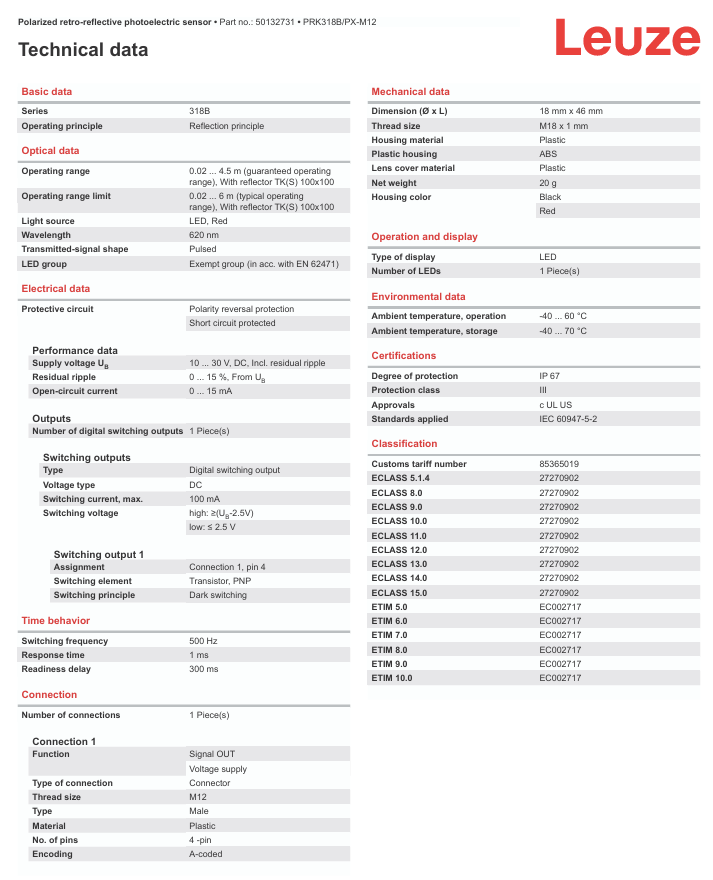

Features:Series:318B
Operating principle:Reflection principle

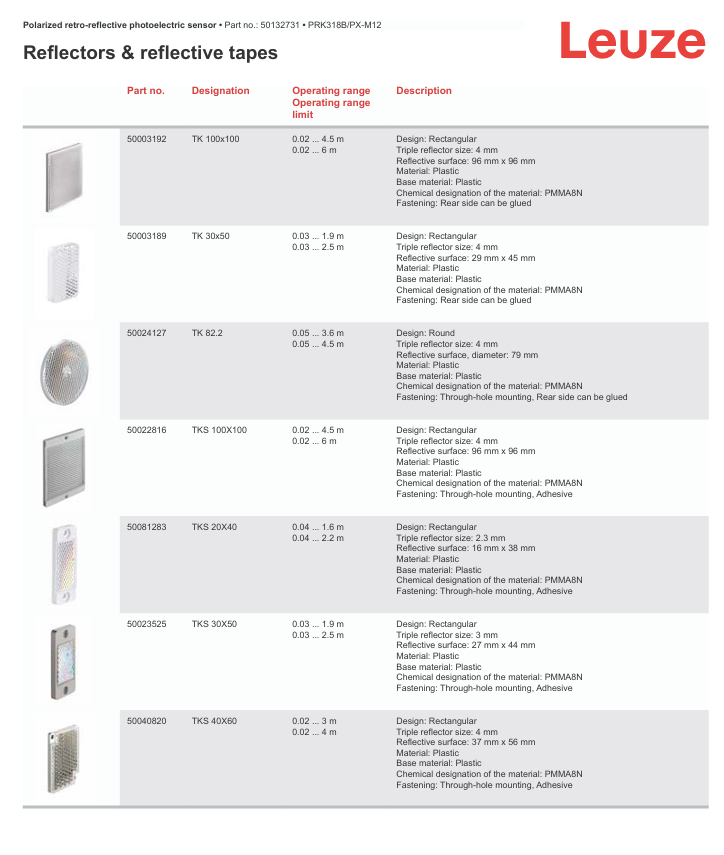

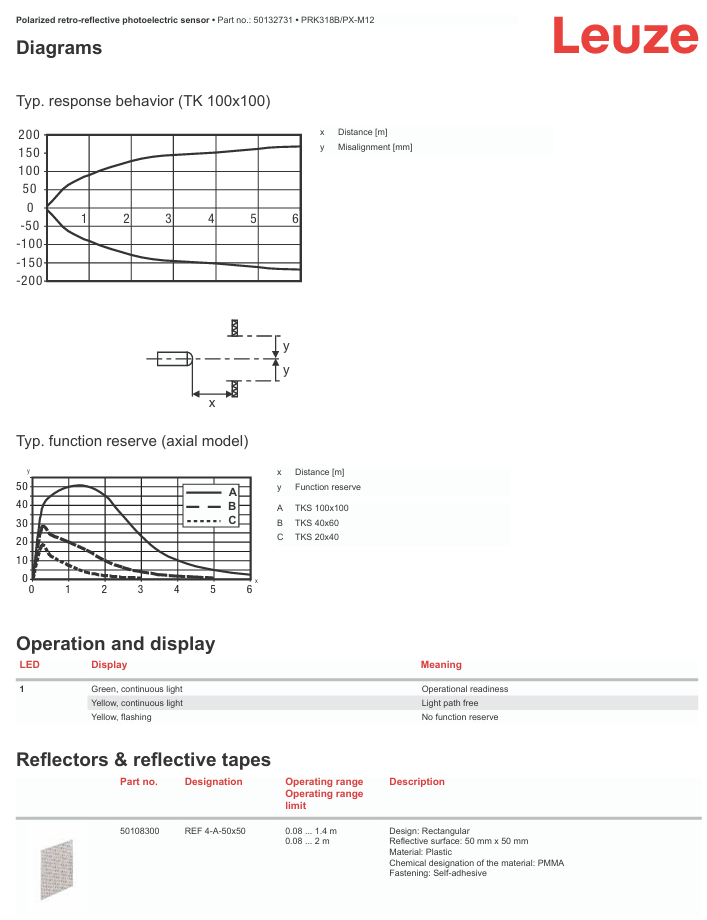

Operating range:0.02 ... 4.5 m (guaranteed operating range), With reflector TK(S) 100x100
Operating range limit:0.02 ... 6 m (typical operating range), With reflector TK(S) 100x100
Light source:LED, Red
Wavelength:620 nm
Supply voltage UB:10 ... 30 V, DC, Incl. residual ripple
Residual ripple:0 ... 15 %, From UB
Open-circuit current:0 ... 15 mA
Switching frequency:500 Hz
Response time:1 ms
Readiness delay:300 ms

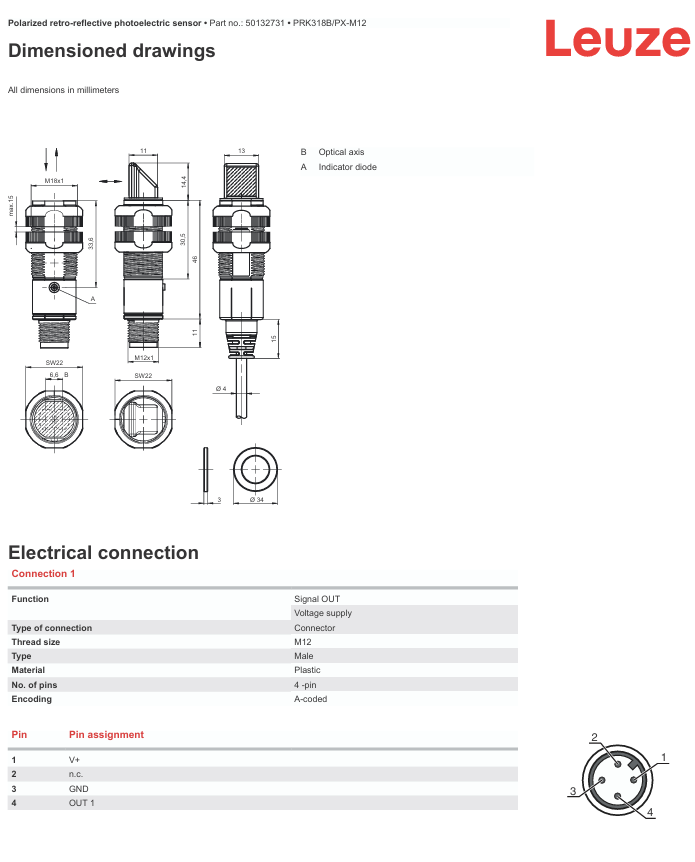

Dimension (Ø x L):18 mm x 46 mm
Thread size:M18 x 1 mm
Ambient temperature, operation:-40 ... 60 °C
Ambient temperature, storage:-40 ... 70 °C
Degree of protection:IP 67
