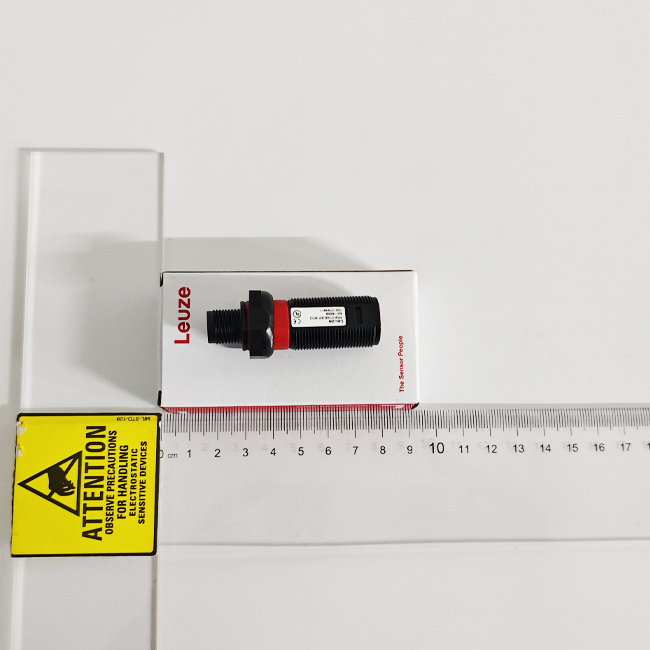

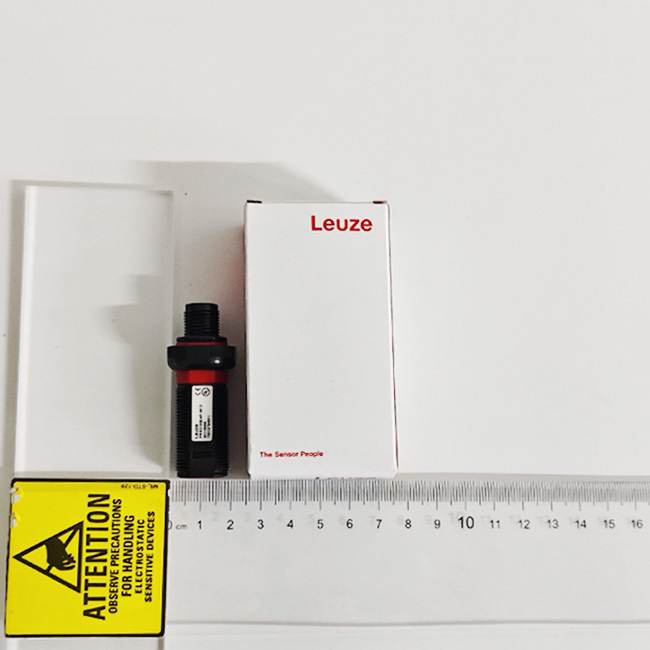

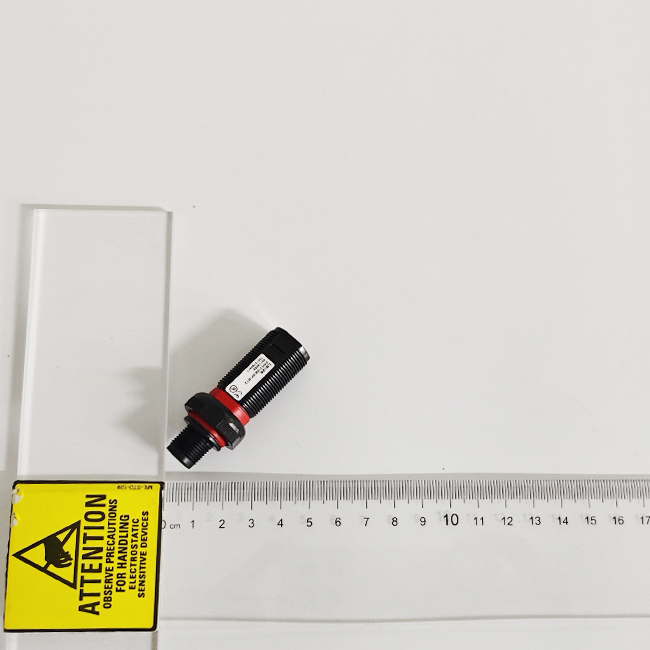

Polarized retro-reflective photoelectric sensor

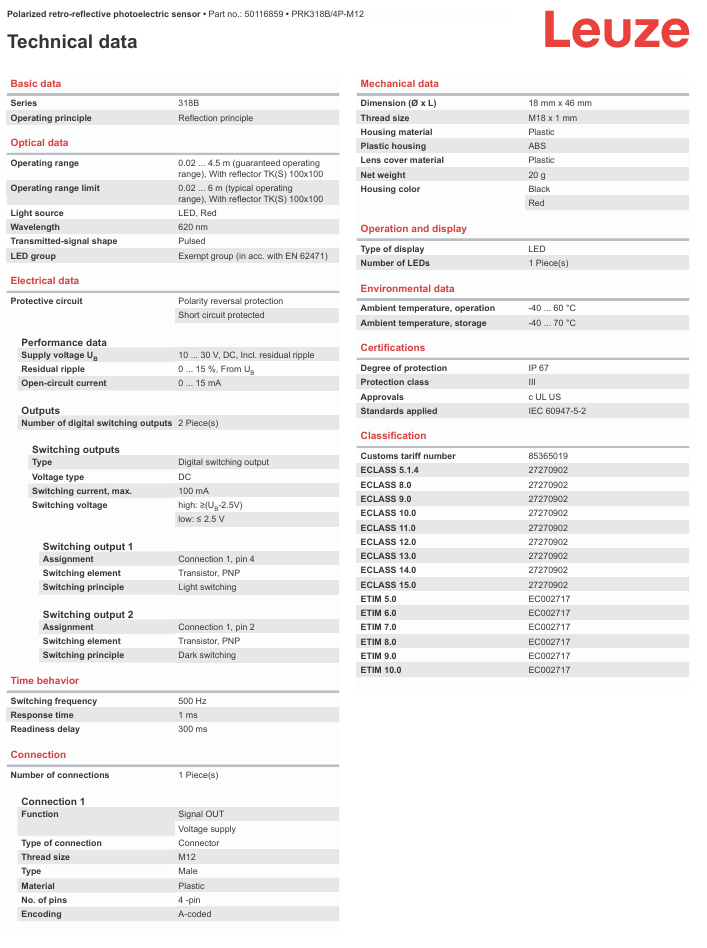

Features：Series：318B
Operating principle：Reflection principle

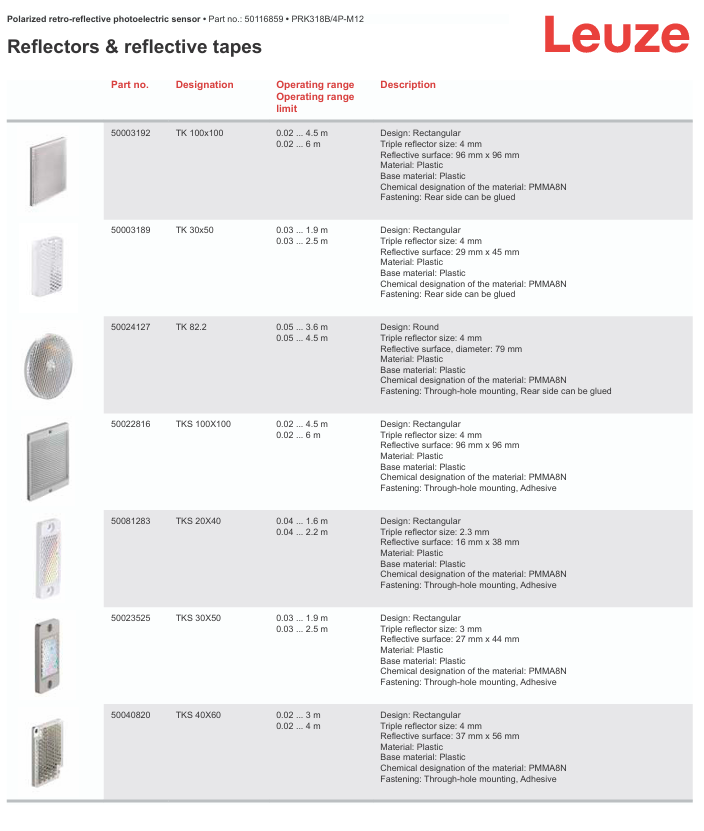

Operating range：0.02 ... 4.5 m (guaranteed operating range), With reflector TK(S) 100x100
Operating range limit：0.02 ... 6 m (typical operating range), With reflector TK(S) 100x100
Light source：LED, Red
Wavelength：620 nm
Supply voltage UB：10 ... 30 V, DC, Incl. residual ripple
Residual ripple：0 ... 15 %, From UB
Open-circuit current：0 ... 15 mA
Switching frequency：500 Hz
Response time：1 ms
Readiness delay：300 ms

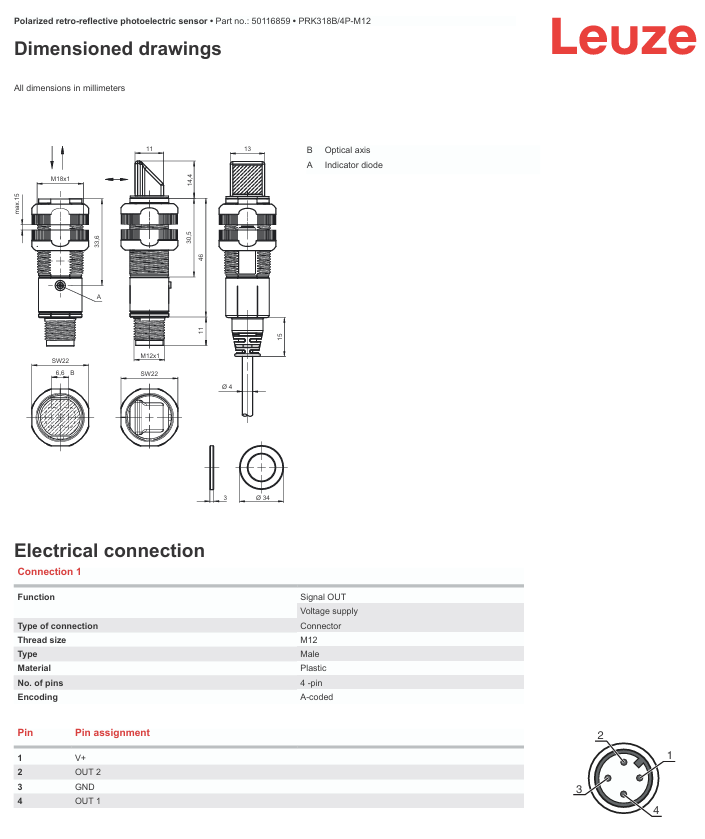

Dimension (Ø x L)：18 mm x 46 mm
Thread size：M18 x 1 mm
Housing material：Plastic
Plastic housing：ABS
Lens cover material：Plastic
Net weight：20 g
Ambient temperature, operation：-40 ... 60 °C
Ambient temperature, storage：-40 ... 70 °C
Degree of protection：IP 67
