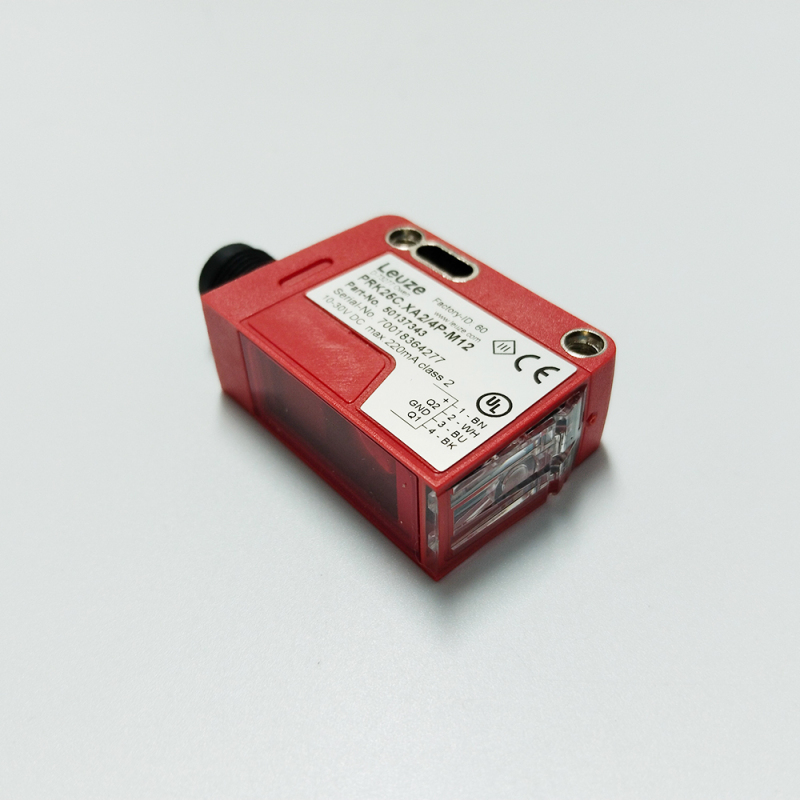

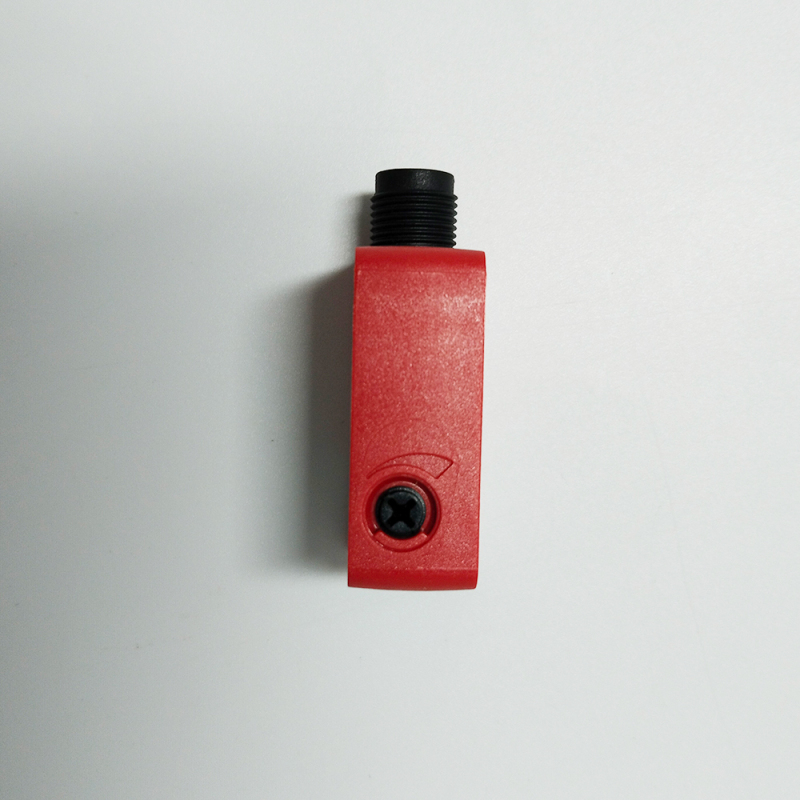

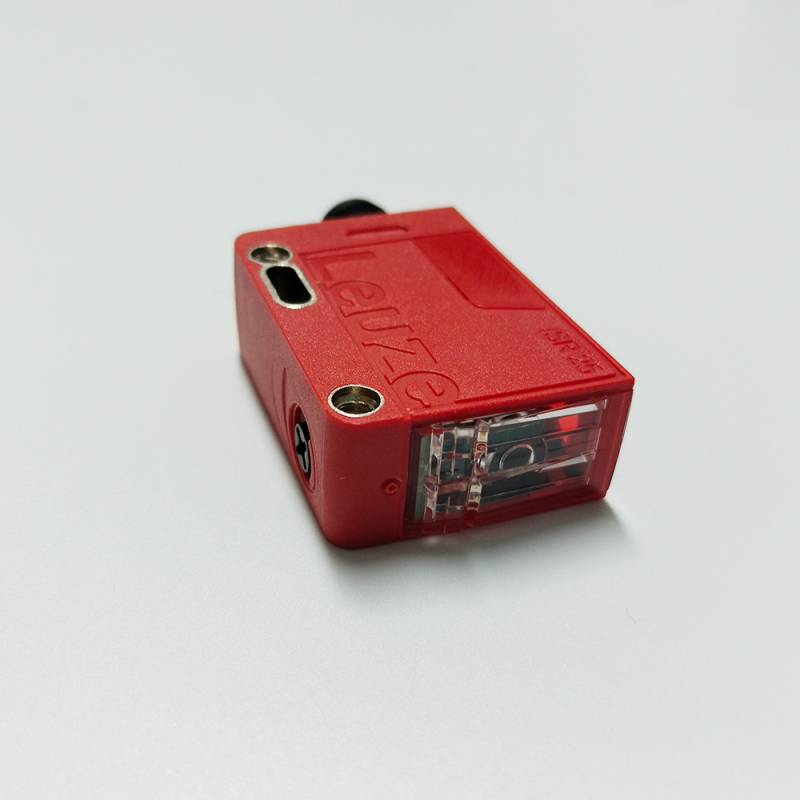

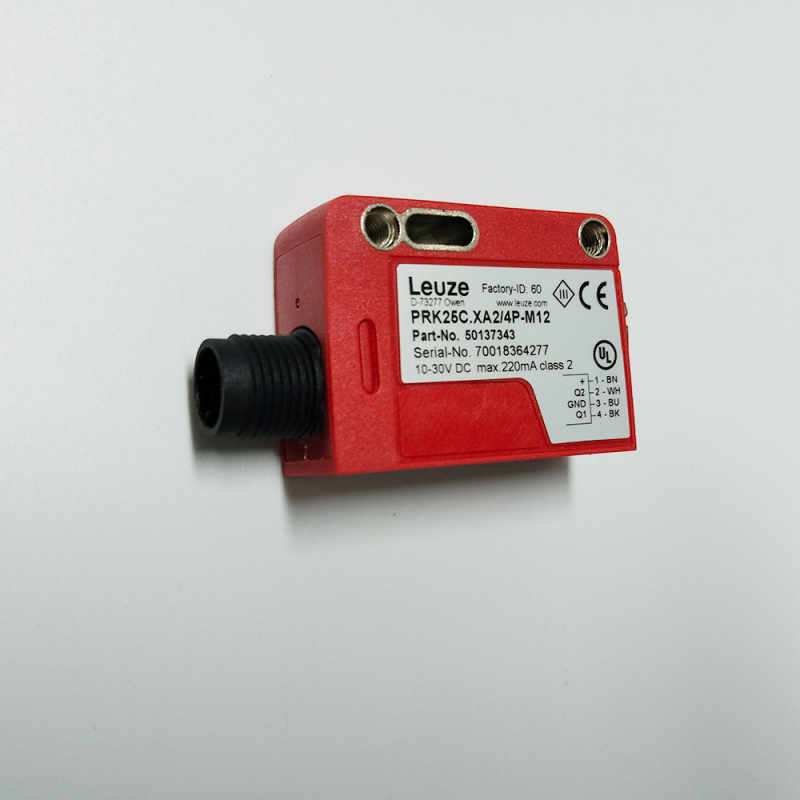

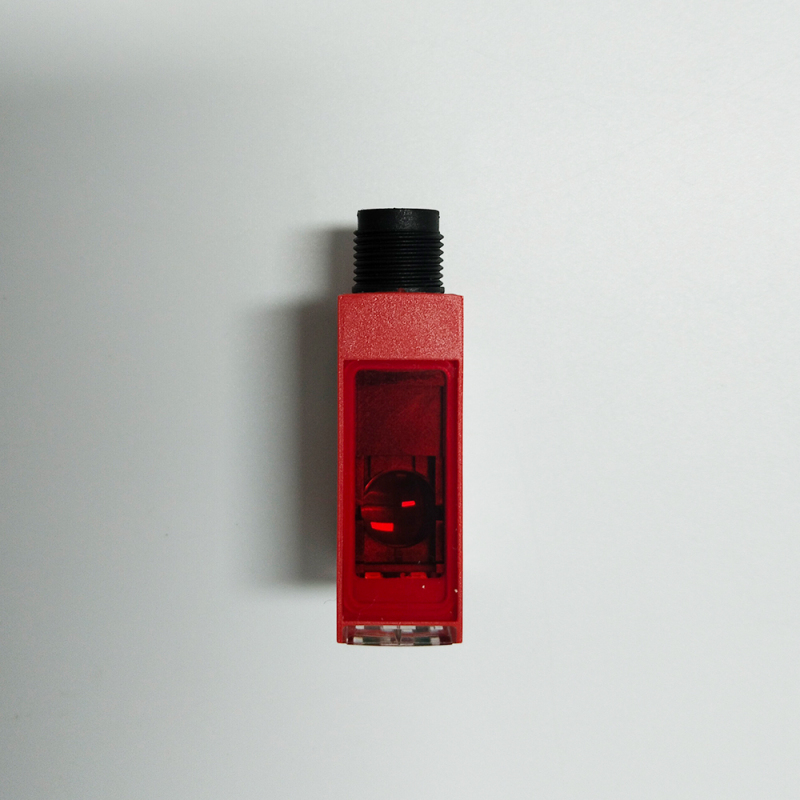

In Stock ! LEUZE Polarized retro-reflective photoelectric sensor PRK25C.XA2/4P-M12

Name: In Stock ! LEUZE Polarized retro-reflective photoelectric sensor PRK25C.XA2/4P-M12
Brand: YW SHOP
SKU: In Stock ; Ship In 48 Hours
Price: 92.2 USD
Availability: InStock

Brand：LEUZE
Date Code：25+

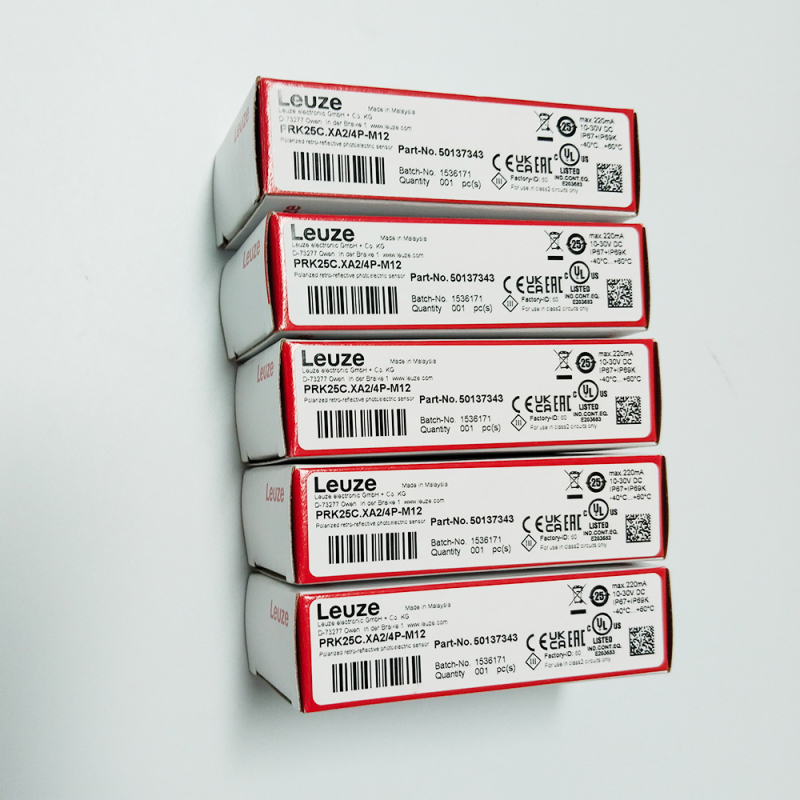

Packing：Bag
Package：Sensor
Minimum Packing：1pcs

$92.20

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET $10.00 OFF ON ORDERS OVER $100.00

Add to Favorites

1/1

Description

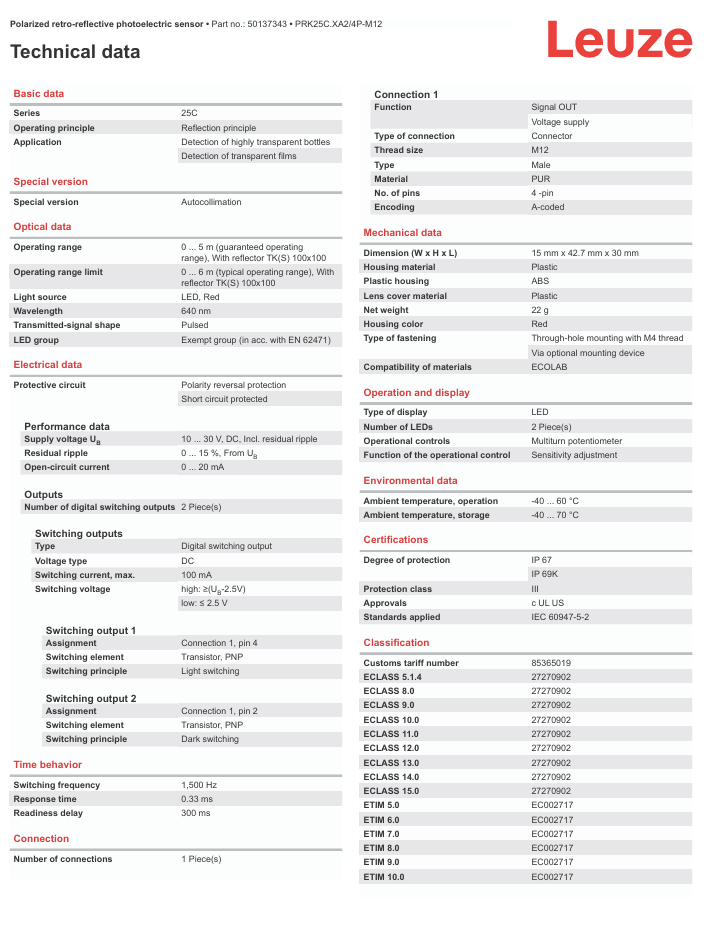

Polarized retro-reflective photoelectric sensor

Part no.: 50137343

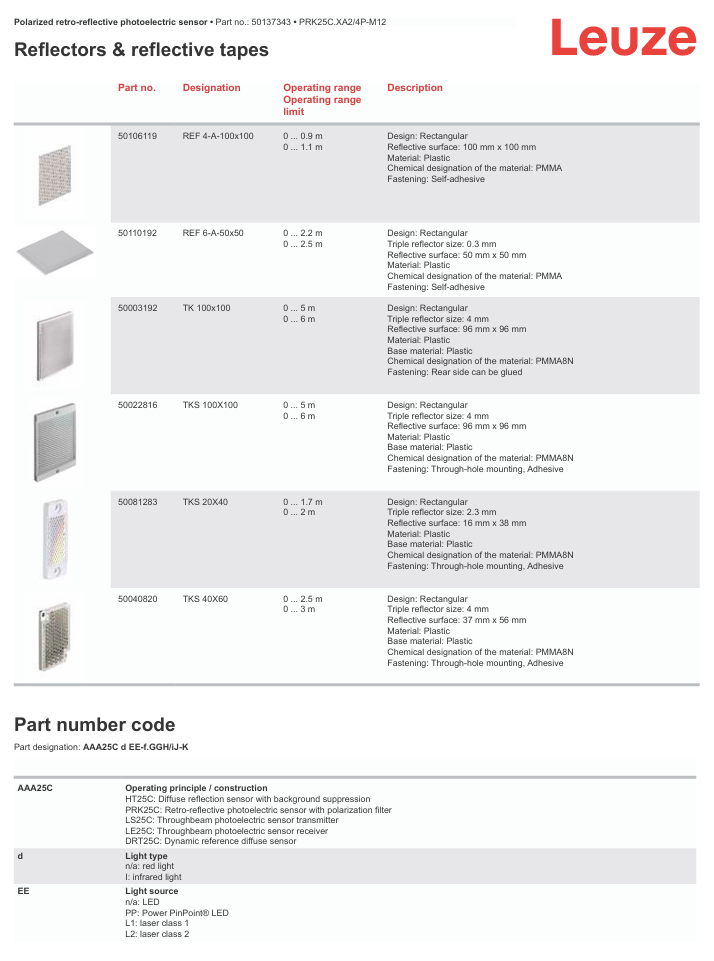

Operating range：0 ... 5 m (guaranteed operating range), With reflector TK(S) 100x100
Operating range limit：0 ... 6 m (typical operating range), With reflector TK(S) 100x100
Light source：LED, Red
Wavelength：640 nm
Supply voltage UB：10 ... 30 V, DC, Incl. residual ripple
Residual ripple：0 ... 15 %, From UB
Open-circuit current：0 ... 20 mA
Switching frequency：1,500 Hz
Response time：0.33 ms
Readiness delay：300 ms

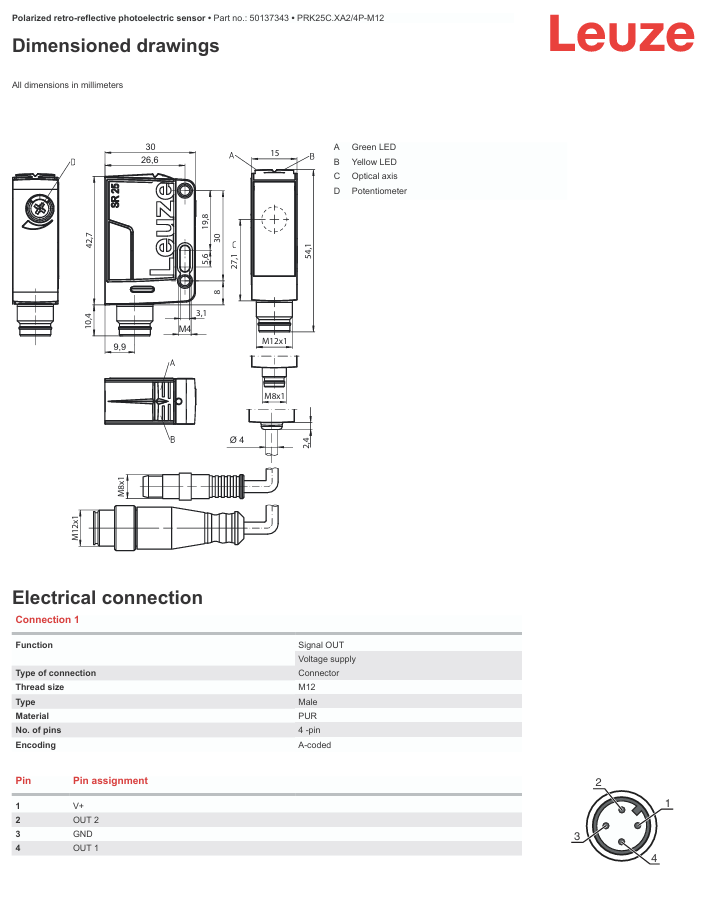

Dimension (W x H x L)：15 mm x 42.7 mm x 30 mm
Housing material：Plastic
Plastic housing：ABS
Lens cover material：Plastic
Net weight：22 g
Housing color：Red
Ambient temperature, operation：-40 ... 60 °C
Ambient temperature, storage：-40 ... 70 °C
Degree of protection：IP 67 / IP 69K
