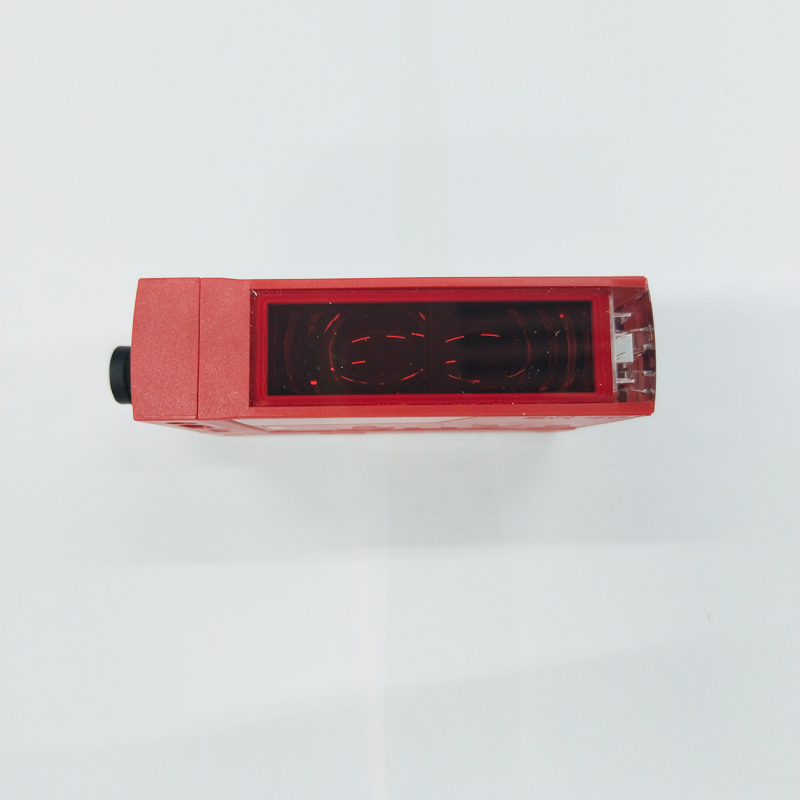

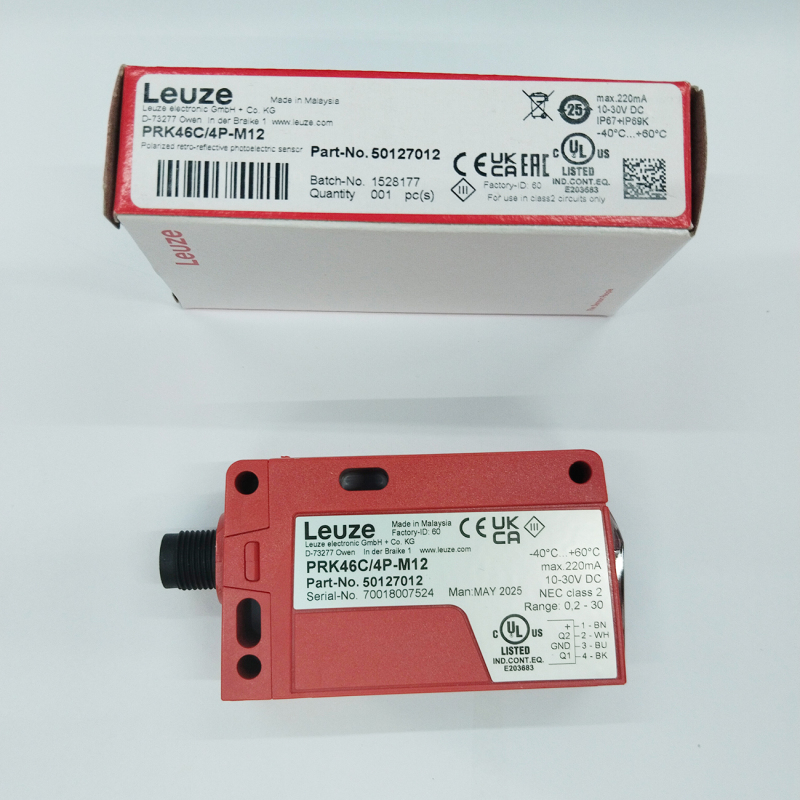

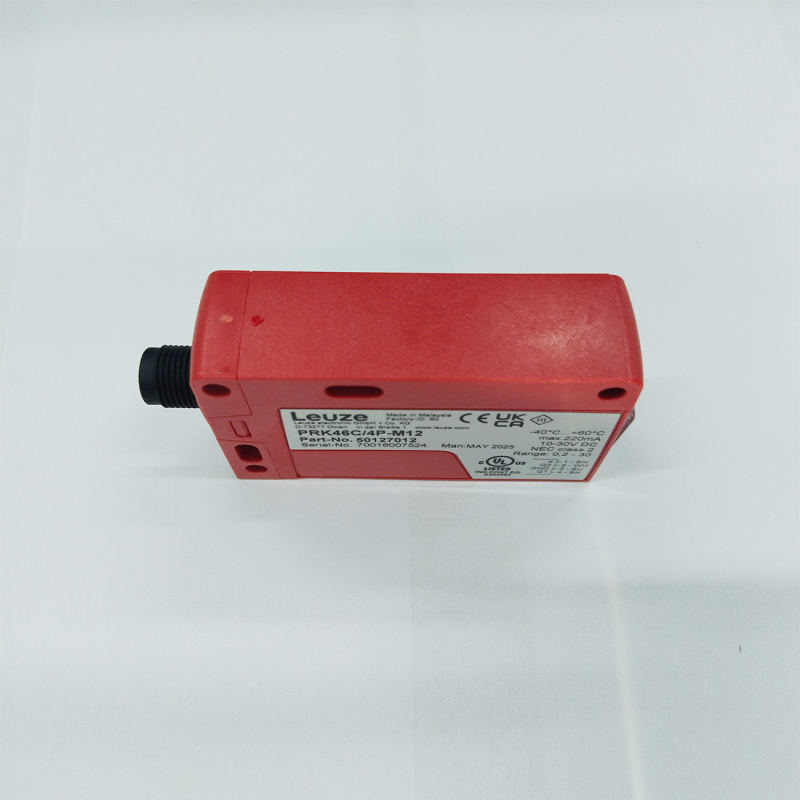

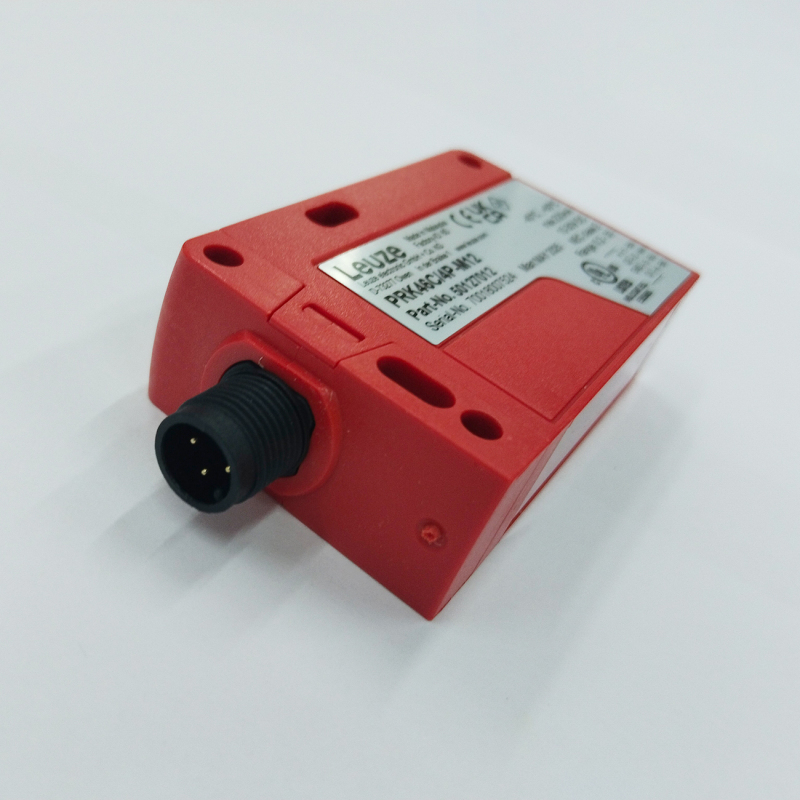

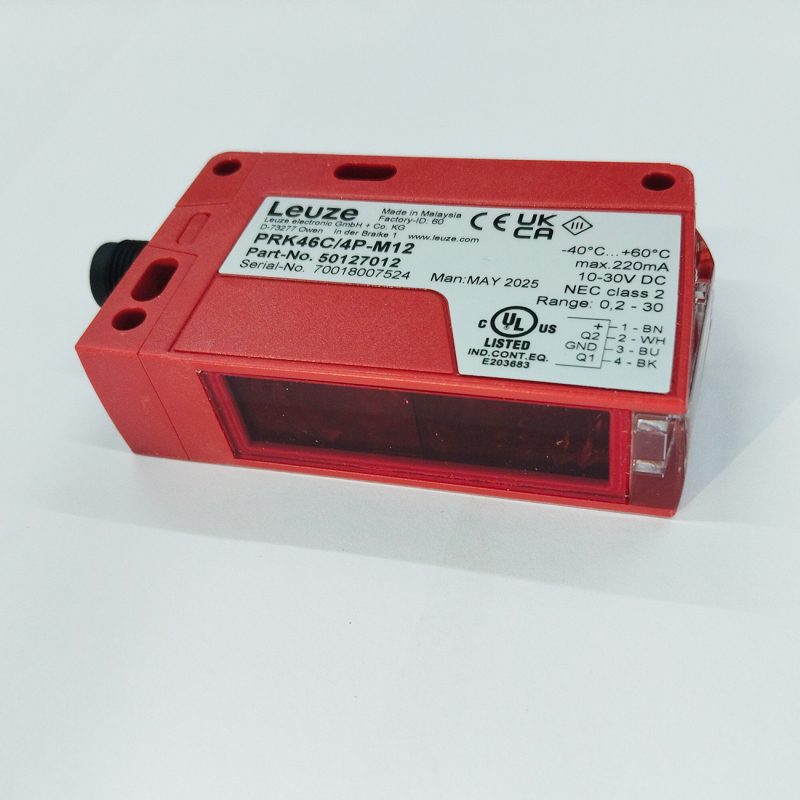

Polarized retro-reflective photoelectric sensor

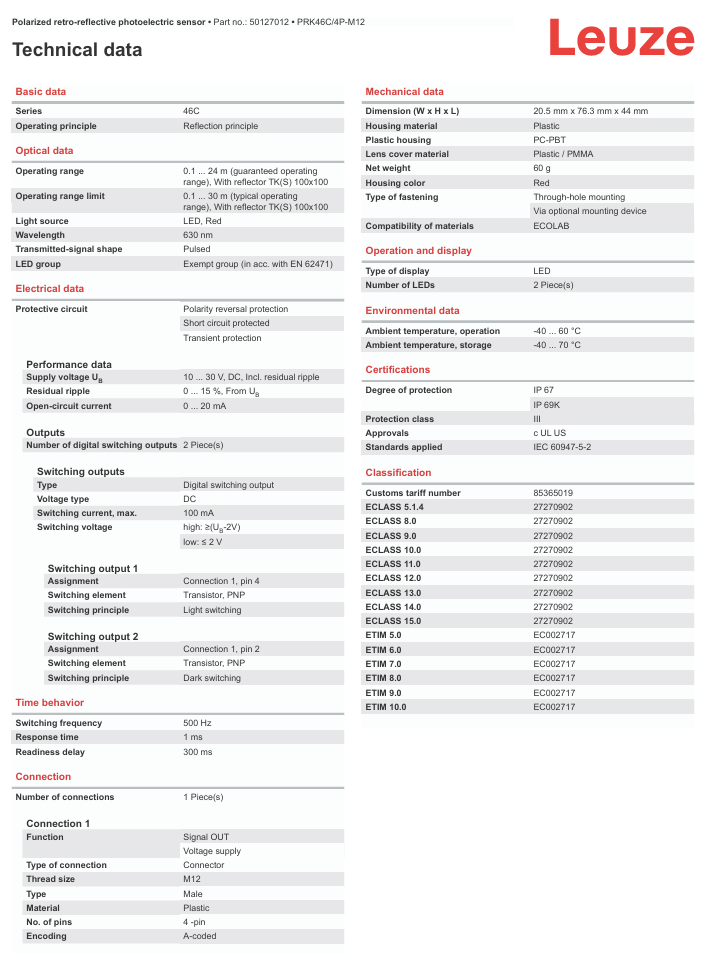

Features：Series：46C
Operating principle：Reflection principle
Operating range：0.1 ... 24 m (guaranteed operating range), With reflector TK(S) 100x100
Operating range limit：0.1 ... 30 m (typical operating range), With reflector TK(S) 100x100
Light source：LED, Red
Wavelength：630 nm
Transmitted-signal shape：Pulsed
Supply voltage UB：10 ... 30 V, DC, Incl. residual ripple
Residual ripple：0 ... 15 %, From UB
Open-circuit current：0 ... 20 mA
Switching frequency：500 Hz
Response time：1 ms
Readiness delay：300 ms

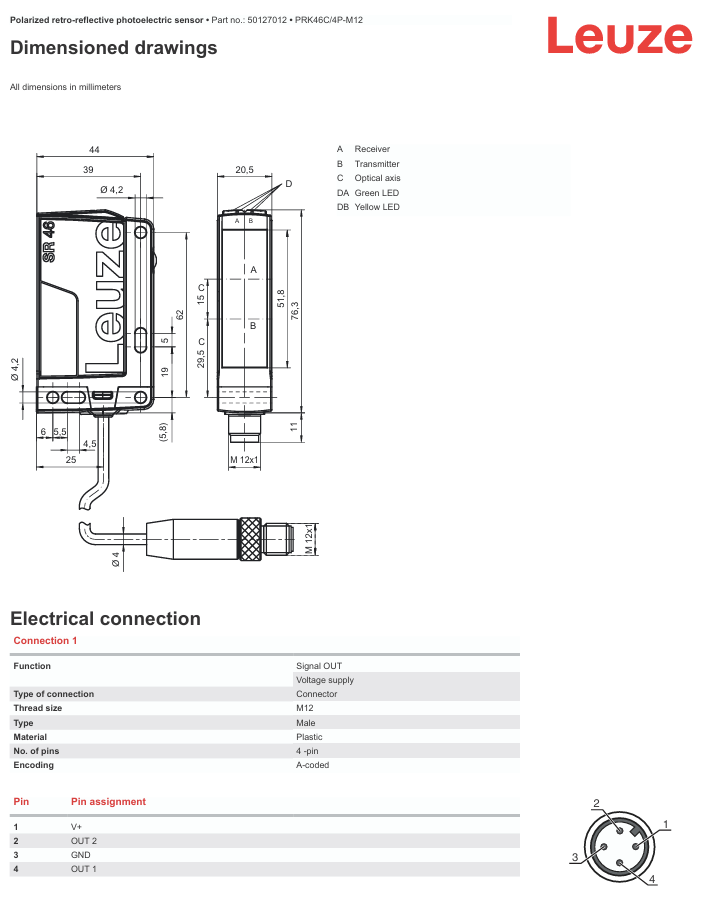

Dimension (W x H x L)：20.5 mm x 76.3 mm x 44 mm
Net weight：60 g
Housing color：Red
Ambient temperature, operation：-40 ... 60 °C
Ambient temperature, storage：-40 ... 70 °C
Degree of protection：IP 67 IP 69K
