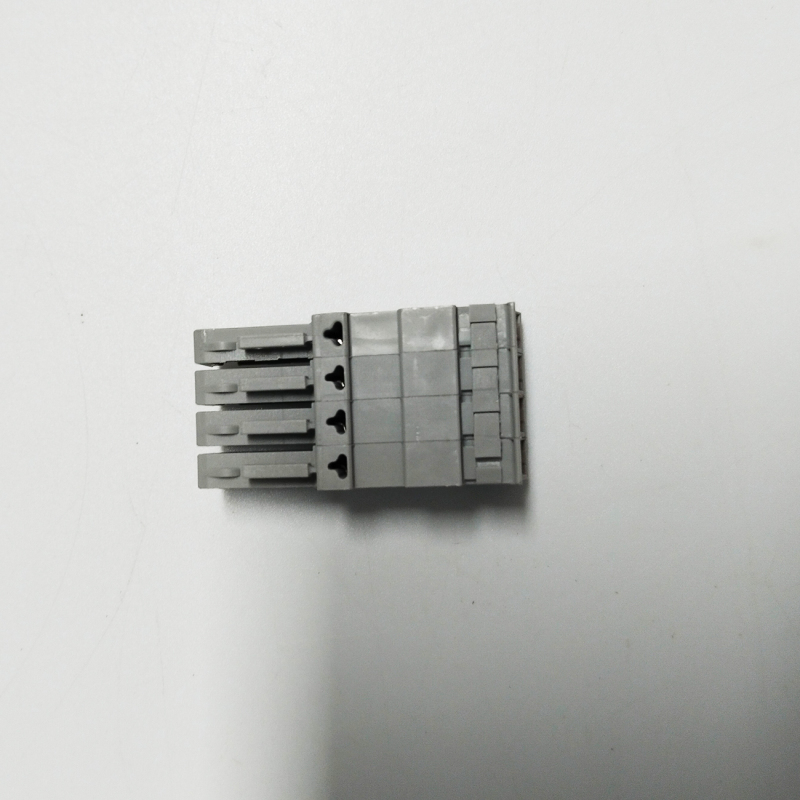

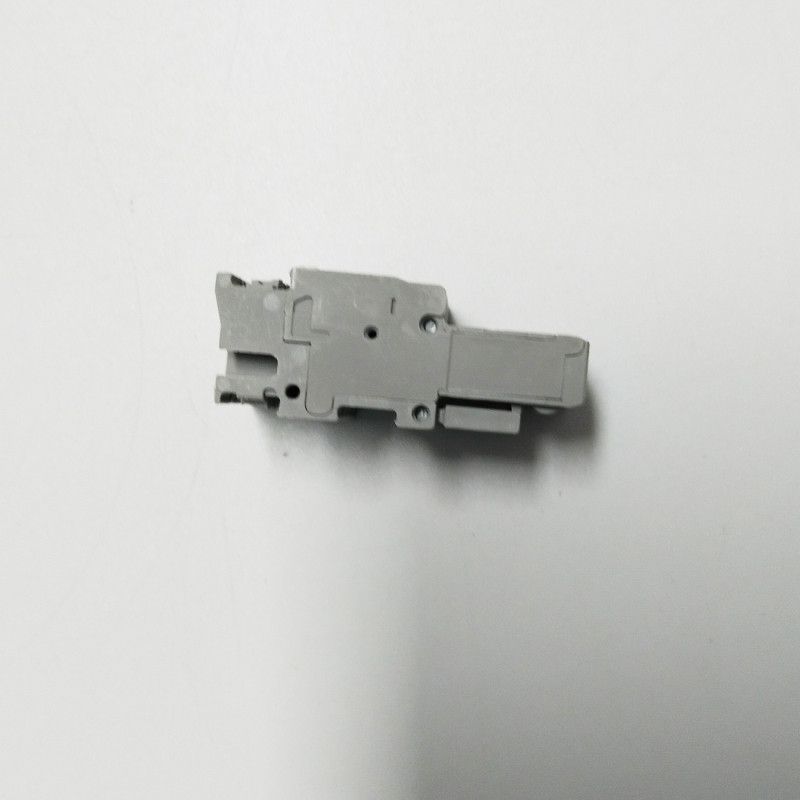

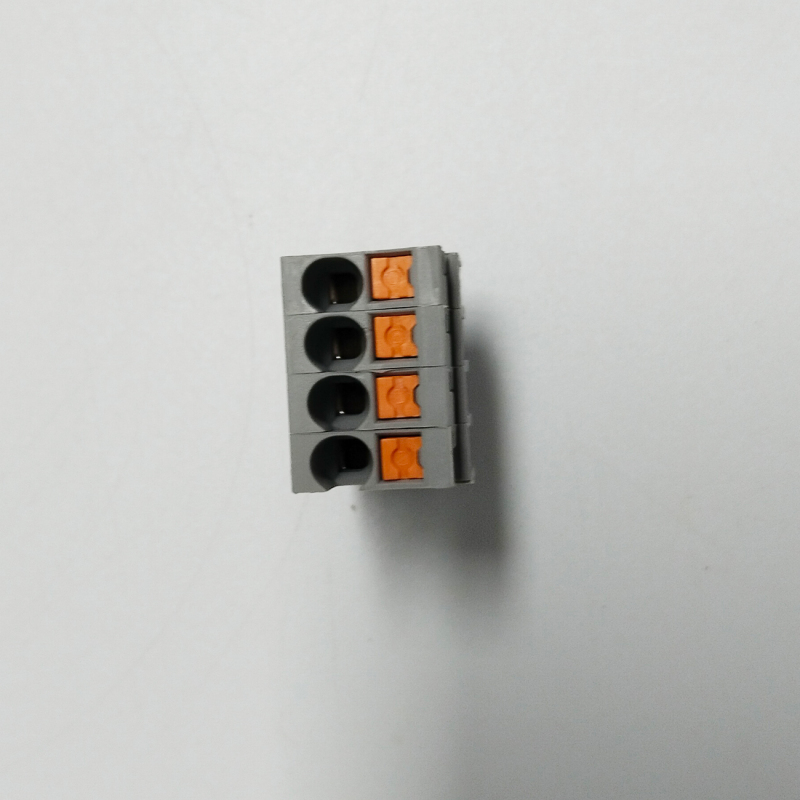

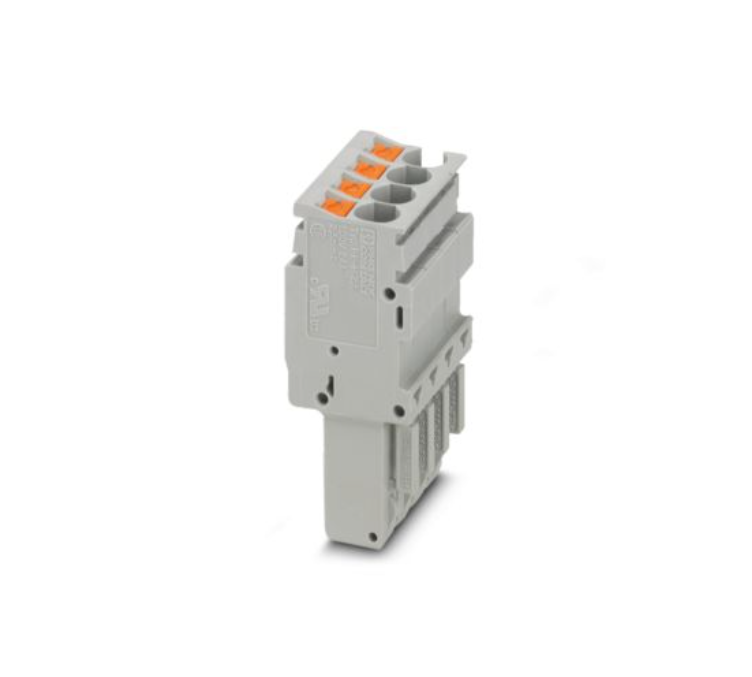

Plug, nom. voltage: 500 V, nominal current: 24 A, number of connections: 4, number of positions: 4, connection method: Push-in connection, Rated cross section: 2.5 mm2, 1 level, cross section: 0.14 mm2 - 4 mm2, color: gray
Features：

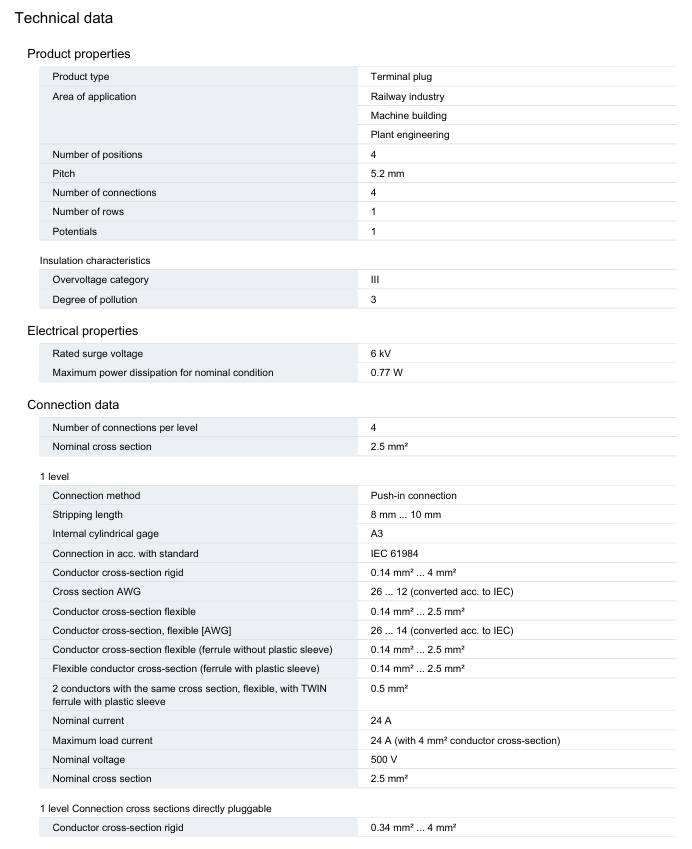

Rated surge voltage：6 kV
Maximum power dissipation for nominal condition：0.77 W
Connection method：Push-in connection
Stripping length：8 mm ... 10 mm
Internal cylindrical gage：A3
Conductor cross-section rigid：0.14 mm² ... 4 mm²
Cross section AWG：26 ... 12 (converted acc. to IEC)
Conductor cross-section flexible：0.14 mm² ... 2.5 mm²
Nominal current：24 A

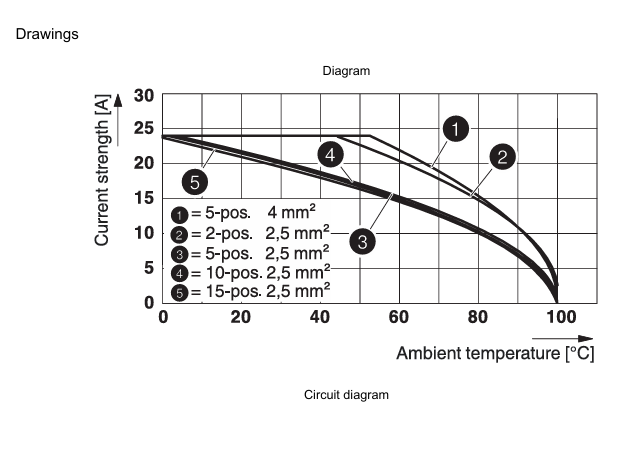

Maximum load current：24 A (with 4 mm² conductor cross-section)
Nominal voltage：500 V
Nominal cross section：2.5 mm²
DI

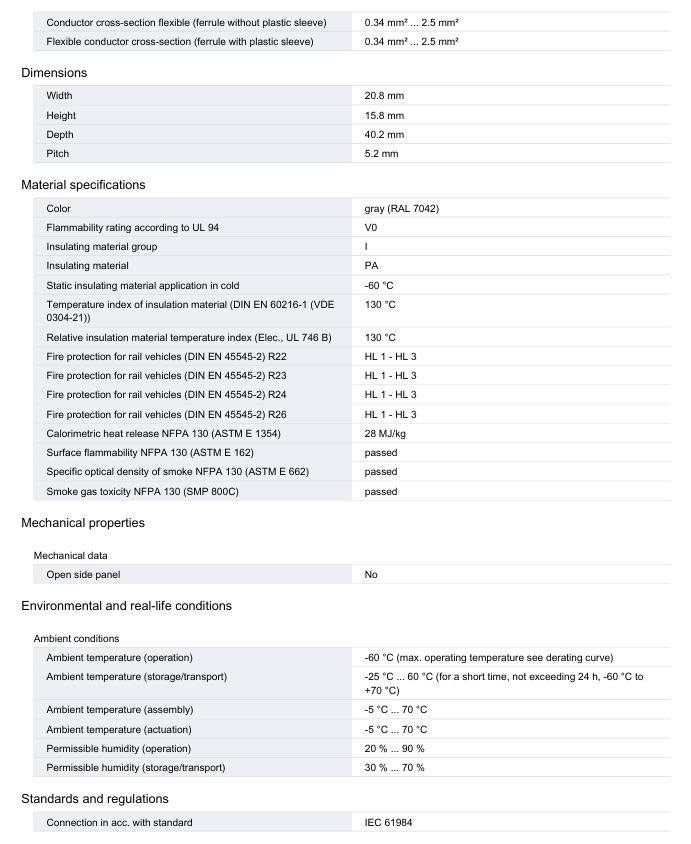

Width：20.8 mm
Height：15.8 mm
Depth：40.2 mm
Pitch：5.2 mm
Static insulating material application in cold：-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))：130 °C
Relative insulation material temperature index (Elec., UL 746 B)：130 °C
