| Brand | Coilcraft |
| Date Code | 18+ |
| Packing | Reel |
| Package | SMD |
| Minimum Packing | 2000pcs |
Power Inductors - SMD 10uH Shld 20% 670mA 680mOhms
Features：

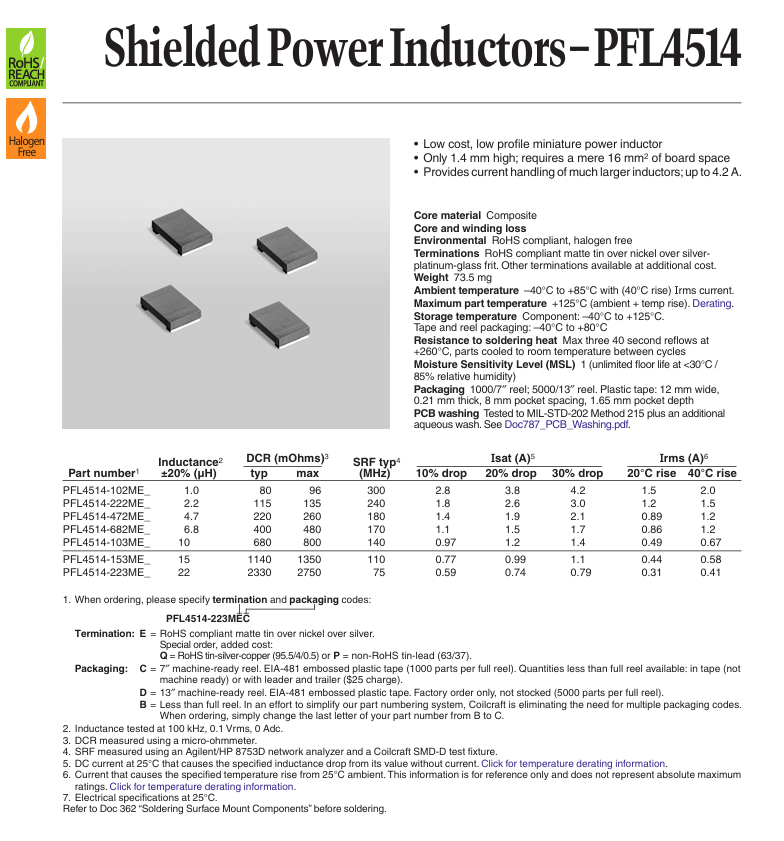

PFL4514 ultra-small molded power inductors offer the perfect combination of size, performance and price. PFL inductors feature soft saturation for high peak currents and magnetic shielding for high-density packaging.
Tiny, cost-effective molded power inductors
Soft saturation for peak current handling
Magnetically shielded
No thermal aging
|
Product Attribute |
Attribute Value |
|
Package / Case: |

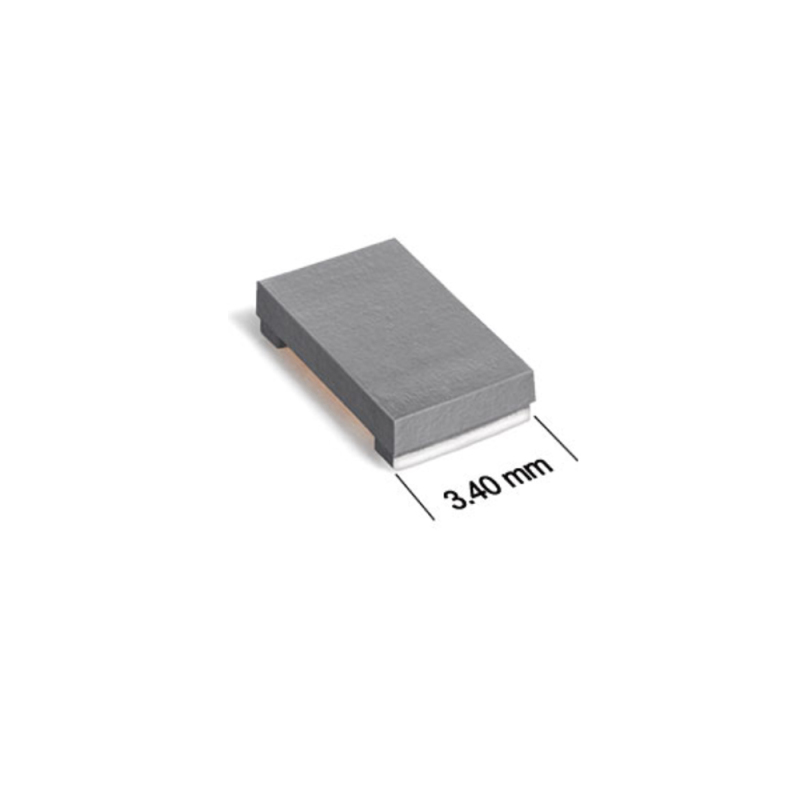

3.4 mm x 1.4 mm x 4.9 mm |
|
Shielding: |
Shielded |
|
Inductance: |
10 uH |
|
Tolerance: |
20 % |
|
Maximum DC Current: |
670 mA |
|
Maximum DC Resistance: |
800 mOhms |
|
Saturation Current: |
1.4 A |
|
Minimum Operating Temperature: |
- 40 C |
|
Maximum Operating Temperature: |
+ 85 C |
|
Self Resonant Frequency: |
140 MHz |
|
Termination: |
Standard |
|
Length: |
4.9 mm |
|
Width: |
3.4 mm |
|
Height: |
1.4 mm |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
100 kHz |
|
Unit Weight: |
73 mg |
Similar Models：
PFL4514-102MEC PFL4514-222MEC PFL4514-472MEC PFL4514-682MEC PFL4514-103MEC PFL4514-153MEC PFL4514-223MEC
