| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 2000pcs |

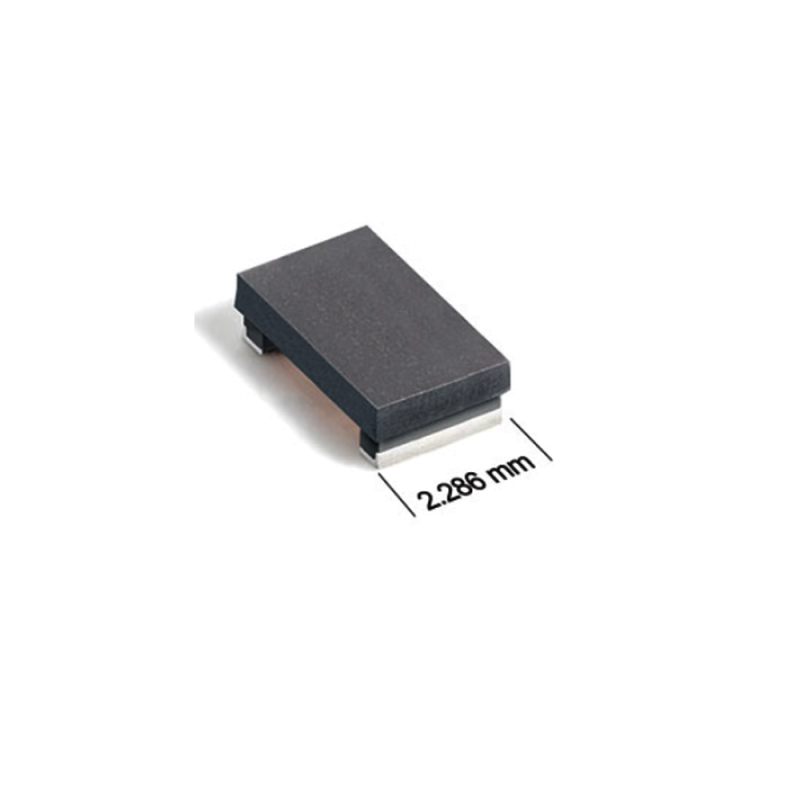

Power Inductors - SMD 1uH Shld 20% 1.9A 83mOhms
Features：

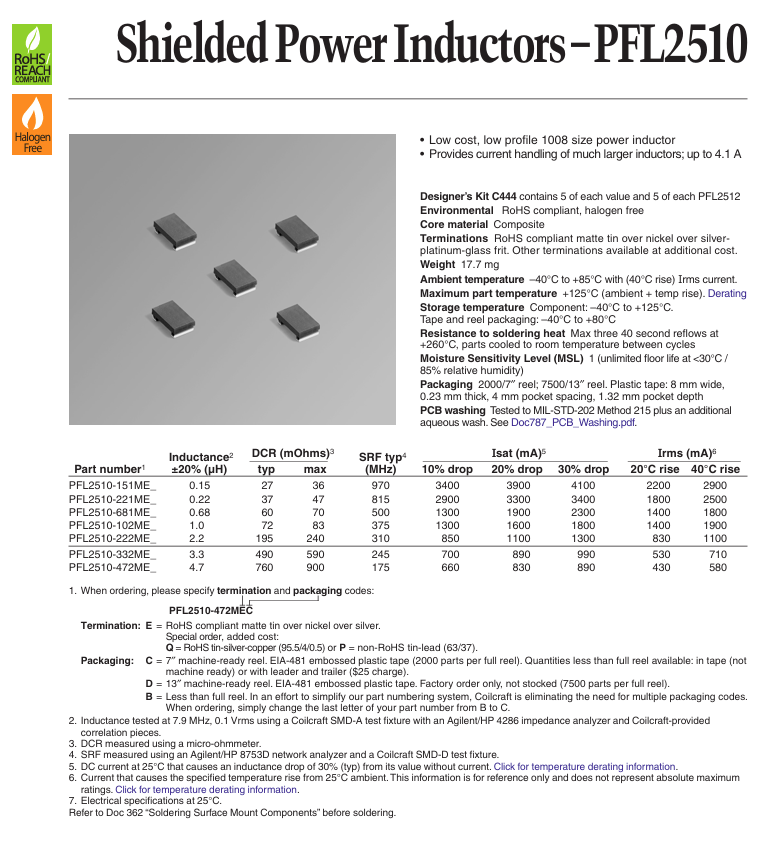

PFL2510 ultra-small molded power inductors offer the perfect combination of size, performance and price. PFL inductors feature soft saturation for high peak currents and magnetic shielding for high-density packaging.
Only 1 mm high; requires only 6.4 mm2 of board space
Tiny, cost-effective molded power inductors
Soft saturation for peak current handling
Magnetically shielded
No thermal aging
|
Product Attribute |
Attribute Value |
|
Inductance: |
1 uH |
|
Tolerance: |
20 % |
|
Maximum DC Current: |
1.9 A |
|
Maximum DC Resistance: |
83 mOhms |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 85℃ |
|
Self Resonant Frequency: |
375 MHz |
|
Termination: |
Standard |
|
Length: |
2.79 mm |
|
Width: |
2.286 mm |
|
Height: |
1.02 mm |
|
Core Material: |
Composite |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
7.9 MHz |
Similar Models：
PFL2510-151MEC PFL2510-221MEC PFL2510-681MEC PFL2510-102MEC PFL2510-22MEC PFL2510-332MEC PFL2510-472MEC
