| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 2000pcs |

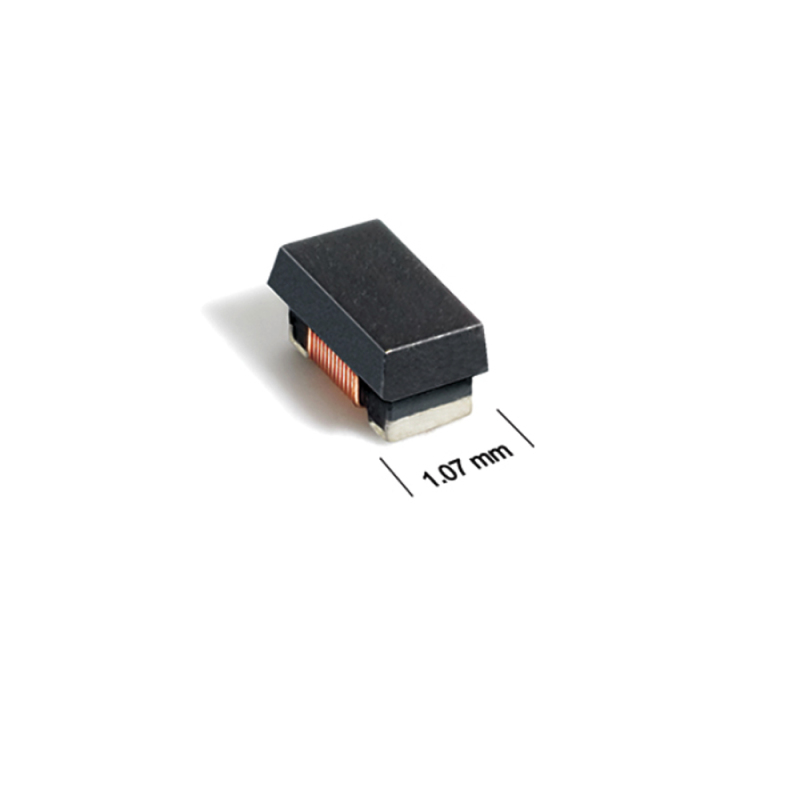

Power Inductors - SMD 470nH Shld 20% 1.3A 100mOhms
Features：

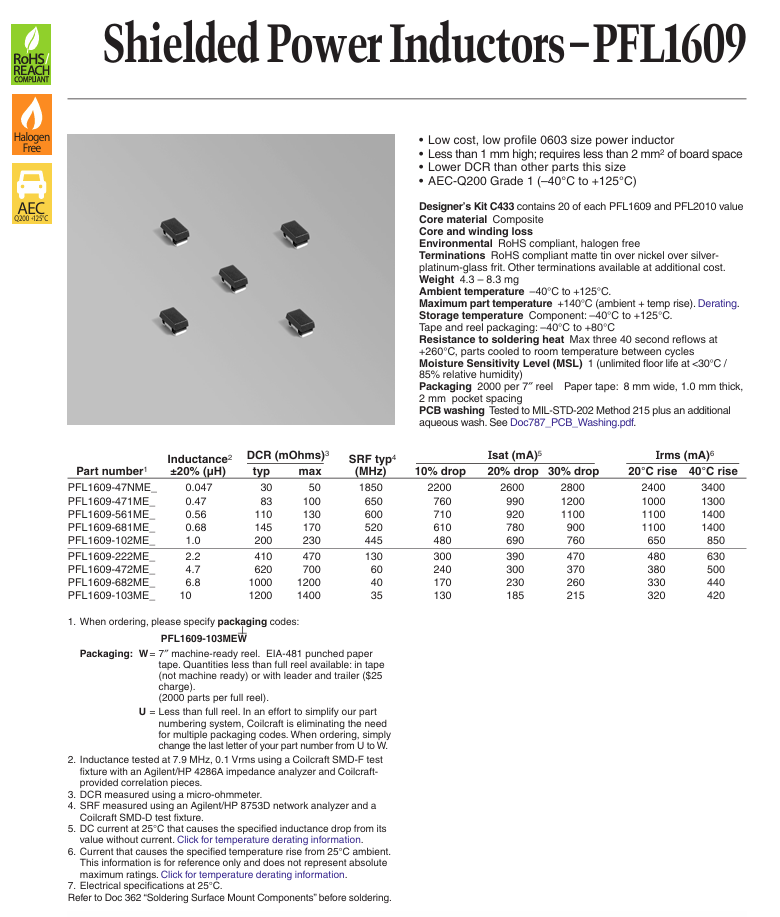

PFL1609 ultra-small molded power inductors offer the perfect combination of size, performance and price. PFL inductors feature soft saturation for high peak currents and magnetic shielding for high-density packaging.
Tiny, cost-effective molded power inductors
Soft saturation for peak current handling
Magnetically shielded
No thermal aging
AEC-Q200 Grade 1 (−40° to +125°C)
|
Product Attribute |
Attribute Value |
|
Inductance: |
470 nH |
|
Tolerance: |
20 % |
|
Maximum DC Current: |
1.3 A |
|
Maximum DC Resistance: |
100 mOhms |
|
Saturation Current: |
1.2 A |
|
Minimum Operating Temperature: |
- 40°C |
|
Maximum Operating Temperature: |
+ 125°C |
|
Self Resonant Frequency: |
650 MHz |
|
Termination: |
Standard |
|

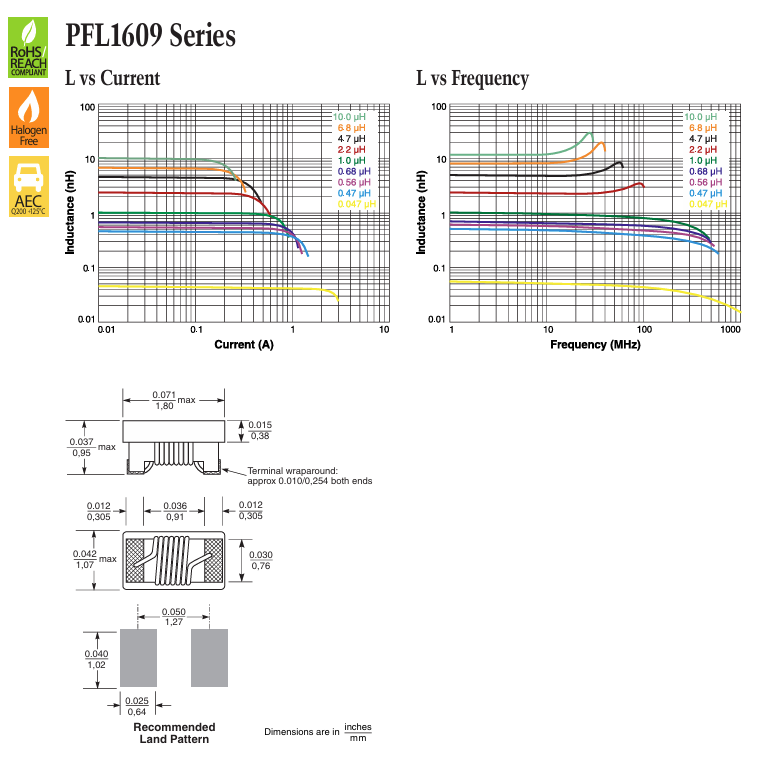

Length: |
1.8 mm |
|
Width: |
1.07 mm |
|
Height: |
0.95 mm |
|
Core Material: |
Composite |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
7.9 MHz |
|
Unit Weight: |
3.200 mg |
Similar Models：
PFL1609-47NMEW PFL1609-471MEW PFL1609-561MEW PFL1609-681MEW PFL1609-102MEW PFL1609-222MEW PFL1609-472MEW PFL1609-682MEW PFL1609-103MEW
