| Brand | OTTO |
| Date Code | 2445/2527 |
| Packing | Bag |
| Package | Switch |
| Minimum Packing | 1pcs |

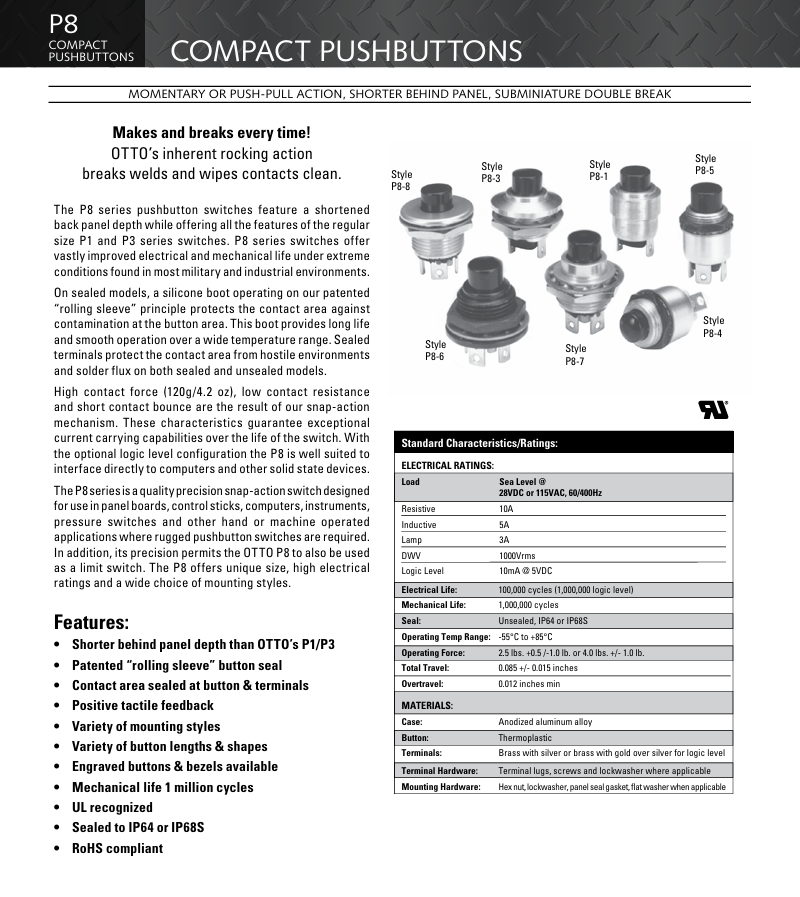

The P8 series pushbutton switches feature a shortened back panel depth while offering all the features of the regular size P1 and P3 series switches. P8 series switches offer vastly improved electrical and mechanical life under extreme conditions found in most military and industrial environments.
On sealed models, a silicone boot operating on our patented “rolling sleeve” principle protects the contact area against contamination at the button area. This boot provides long life and smooth operation over a wide temperature range. Sealed terminals protect the contact area from hostile environments and solder flux on both sealed and unsealed models.
High contact force, low contact resistance and short contact bounce are the result of our snap-action mechanism. These characteristics guarantee exceptional current carrying capabilities over the life of the switch. With the optional logic level configuration the P8 is well suited to interface directly to computers and other solid state devices.
The P8 series is a quality precision snap-action switch designed for use in panel boards, control sticks, computers, instruments, pressure switches and other hand or machine operated applications where rugged pushbutton switches are required. In addition, its precision permits the OTTO P8 to also be used as a limit switch. The P8 offers unique size, high electrical ratings and a wide choice of mounting styles.

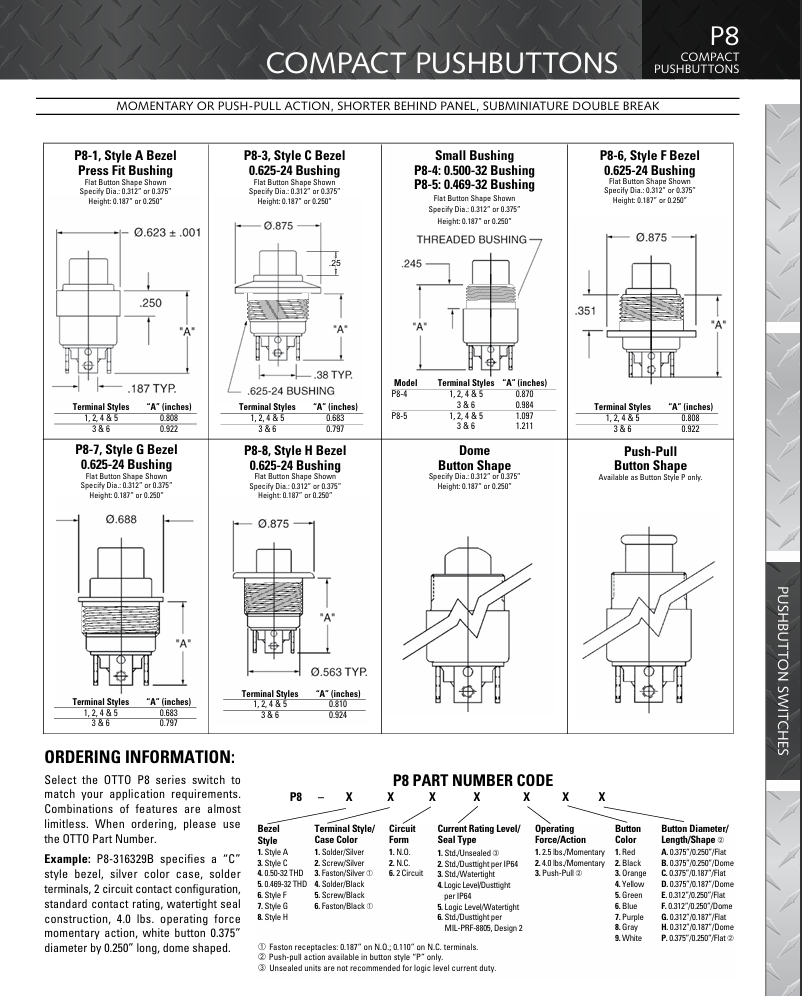

P8-331312A P8-331312B P8-331312C P8-331312D P8-331312E P8-331312F P8-331312G P8-331312H P8-331312P P8-331311A P8-331311B P8-331311C P8-331311D P8-331311E P8-331311F P8-331311G P8-331311H P8-331311P P8-331313A P8-331313B P8-331313C P8-331313D P8-331313E P8-331313F P8-331313G P8-331313H P8-331313P P8-331314A P8-331314B P8-331314C P8-331314D P8-331314E P8-331314F P8-331314G P8-331314H P8-331314P P8-331315A P8-331315B P8-331315C P8-331315D P8-331315E P8-331315F P8-331315G P8-331315H P8-331315P P8-331316A P8-331316B P8-331316C P8-331316D P8-331316E P8-331316F P8-331316G P8-331316H P8-331316P P8-331317A P8-331317B P8-331317C P8-331317D P8-331317E P8-331317F P8-331317G P8-331317H P8-331317P P8-331318A P8-331318B P8-331318C P8-331318D P8-331318E P8-331318F P8-331318G P8-331318H P8-331318P P8-331319A P8-331319B P8-331319C P8-331319D P8-331319E P8-331319F P8-331319G P8-331319H P8-331319P P8-331322A P8-331322B P8-331322CP8-331322D P8-331322E P8-331322F P8-331322G P8-331322H P8-331322P P8-331321A P8-331321B P8-331321C P8-331321D P8-331321E P8-331321F P8-331321G P8-331321H P8-331321P P8-331323A P8-331323B P8-331323C P8-331323D P8-331323E P8-331323F P8-331323G P8-331323H P8-331323P P8-331324A P8-331324B P8-331324C P8-331324D P8-331324E P8-331324F P8-331324G P8-331324H P8-331324P P8-331325A P8-331325B P8-331325C P8-331325D P8-331325E P8-331325F P8-331325G P8-331325H P8-331325P P8-331326A P8-331326B P8-331326C P8-331326D P8-331326E P8-331326F P8-331326G P8-331326H P8-331326P P8-331327A P8-331327B P8-331327C P8-331327D P8-331327EP8-331327F P8-331327G P8-331327H P8-331327P P8-331328A P8-331328B P8-331328C P8-331328D P8-331328E P8-331328F P8-331328G P8-331328H P8-331328P P8-331329A P8-331329B P8-331329C P8-331329D P8-331329E P8-331329F P8-331329G P8-331329H P8-331329P P8-331332A P8-331332B P8-331332C P8-331332D P8-331332E P8-331332F P8-331332G P8-331332H P8-331332P P8-331331A P8-331331B P8-331331C P8-331331D P8-331331E P8-331331F P8-331331G P8-331331H P8-331331P P8-331333A P8-331333B P8-331333C P8-331333D P8-331333E P8-331333F P8-331333G P8-331333H P8-331333P P8-331334A P8-331334B P8-331334C P8-331334D P8-331334E P8-331334F P8-331334G P8-331334H P8-331334P P8-331335A P8-331335B P8-331335C P8-331335D P8-331335E P8-331335F P8-331335G P8-331335H P8-331335P P8-331336A P8-331336B P8-331336C P8-331336D P8-331336E P8-331336F P8-331336G P8-331336H P8-331336P P8-331337A P8-331337B P8-331337C P8-331337D P8-331337E P8-331337F P8-331337G P8-331337H P8-331337P P8-331338A P8-331338B P8-331338C P8-331338D P8-331338E P8-331338F P8-331338G P8-331338H P8-331338P P8-331339A P8-331339B P8-331339C P8-331339D P8-331339E P8-331339F P8-331339G P8-331339H P8-331339P
