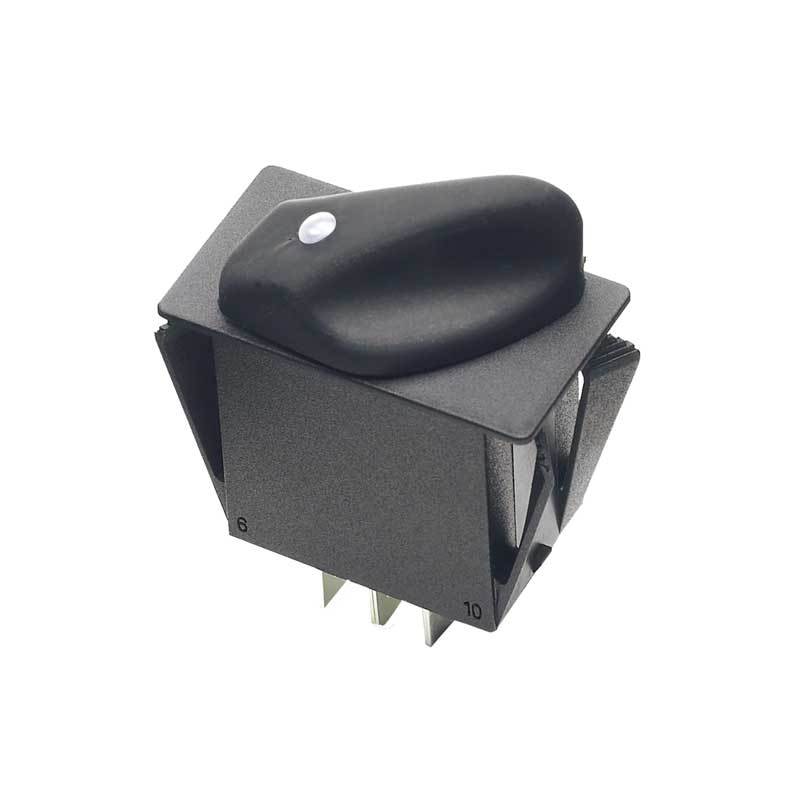

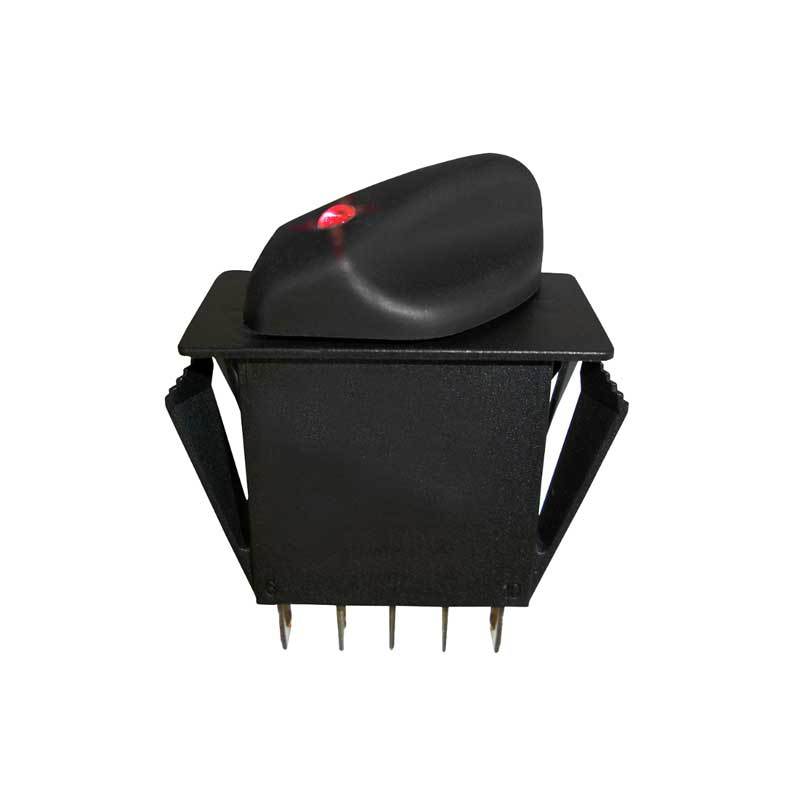

  • OTTO Rotary Switch R2AB4477NNNN
  • OTTO Rotary Switch R2AB4477NNNN
1/1
  • OTTO Rotary Switch R2AB4477NNNN
  • OTTO Rotary Switch R2AB4477NNNN

In Stock ! OTTO Rotary Switch R2AB4477NNNN

Brand OTTO
Date Code 2228
Packing Bag
Package Switch
Minimum Packing 1pcs
$0.00 $108.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Discount
  • GET $10.00 OFF ON ORDERS OVER $100.00
Quantity
-
+
0 In Stock ; Ship In 48 Hours
  • OTTO Rotary Switch R2AB4477NNNN
  • OTTO Rotary Switch R2AB4477NNNN
  • OTTO Rotary Switch R2AB4477NNNN
  • OTTO Rotary Switch R2AB4477NNNN
1/1
  • OTTO Rotary Switch R2AB4477NNNN
  • OTTO Rotary Switch R2AB4477NNNN
  • Description
Features:
Sealed, lighted rotary switch which snaps into a 1.475" X 0.875" industry standard rocker switch panel opening.
  • Sealed watertight per IP68S
  • Snap-in panel mounting into industry standard 1.475” x 0.875” panel cutout
  • Unique lighting options—up to 3 independent LED light positions
  • Plastic or Soft Touch knob options available
  • 2 or 3 positions in all combinations of momentary & maintained action
  • Termination can be used as 0.250” faston or with snap-on modular connector

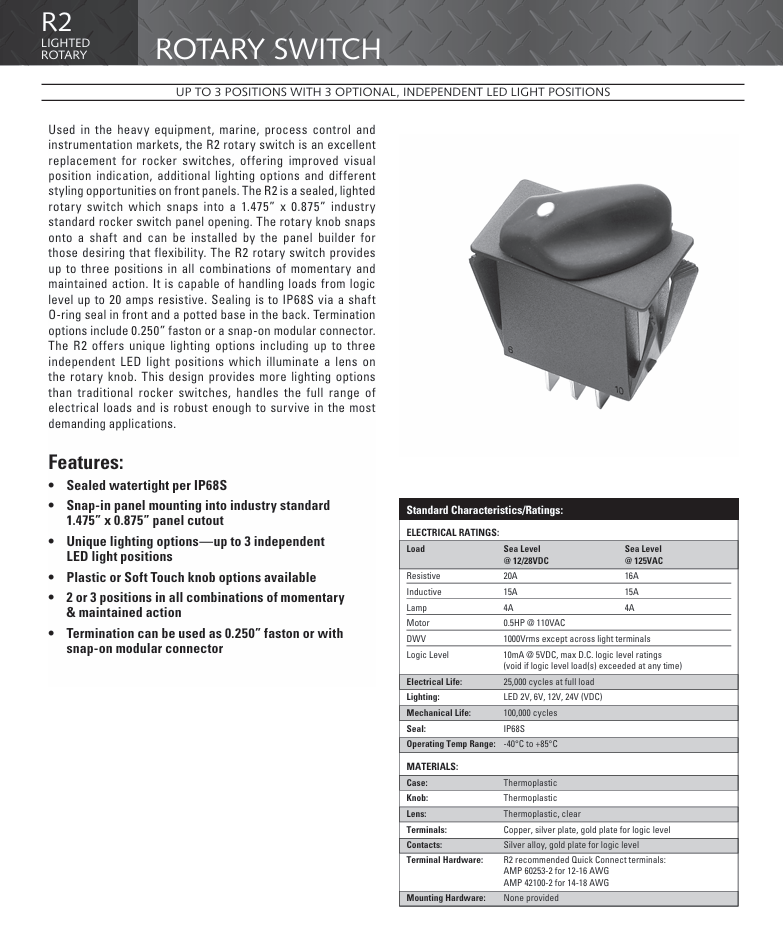

Used in the heavy equipment, marine, process control and instrumentation markets, the R2 rotary switch is an excellent replacement for rocker switches, offering improved visual position indication, additional lighting options and different styling opportunities on front panels. The R2 is a sealed, lighted rotary switch which snaps into a 1.475” x 0.875” industry standard rocker switch panel opening. The rotary knob snaps onto a shaft and can be installed by the panel builder for those desiring that flexibility. The R2 rotary switch provides up to three positions in all combinations of momentary and maintained action. It is capable of handling loads from logic level up to 20 amps resistive. Sealing is to IP68S via a shaft O-ring seal in front and a potted base in the back. Termination options include 0.250” faston or a snap-on modular connector. The R2 offers unique lighting options including up to three independent LED light positions which illuminate a lens on the rotary knob. This design provides more lighting options than traditional rocker switches, handles the full range of electrical loads and is robust enough to survive in the most demanding applications.
