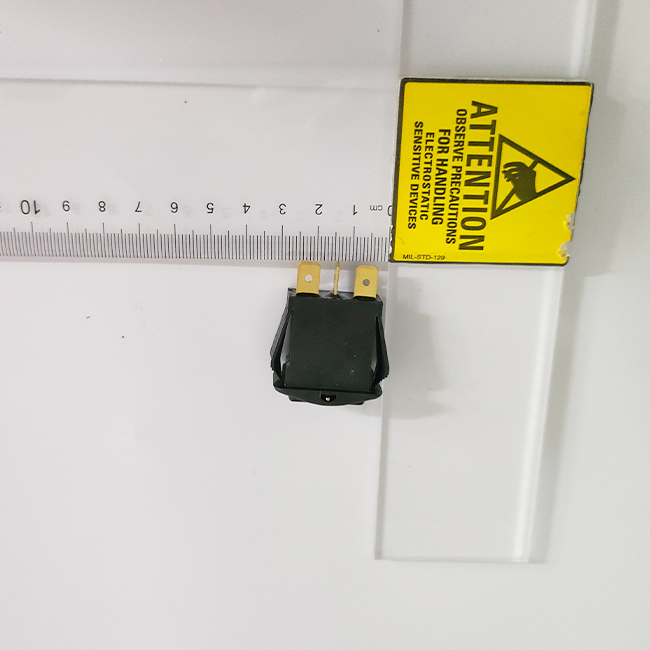

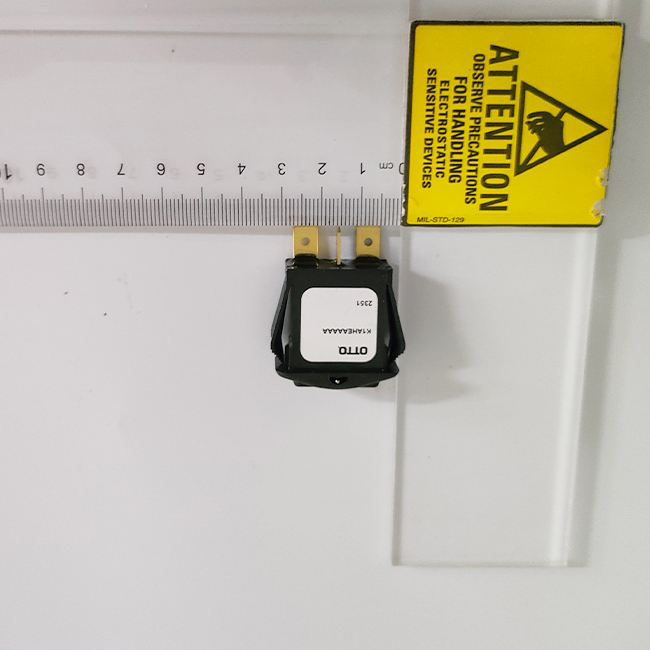

The K1 is a high performance, illuminated, single pole, sealed rocker switch that fits industry standard panel openings.
Withstands direct water spray
Sealed to IP68S and IP69K
Fits industry standard panel openings for drop-in replacement of panel sealed & unsealed switches
Snap-in feature accommodates a wide range of panel cutouts
Switches up to 16 amps
UV & solvent resistant
Withstands extreme shock & vibration
Custom legends available
2 & 3-position, momentary & maintained action

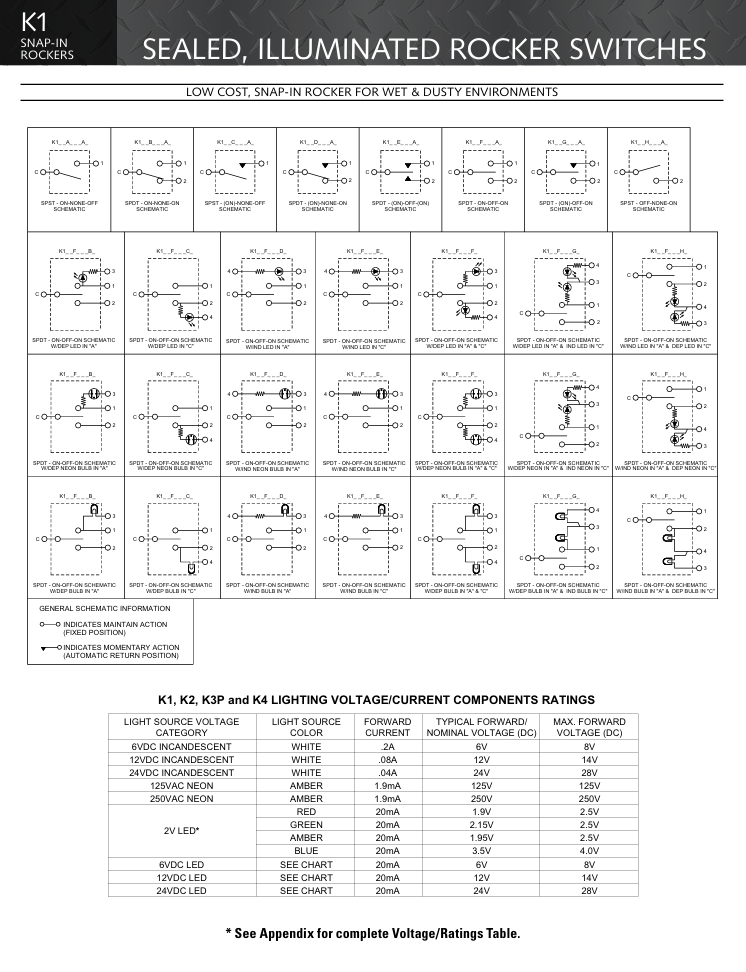

Incandescent, LED & neon illumination with independent & dependent light source options
UL recognized
Ignition protected
RoHS compliant

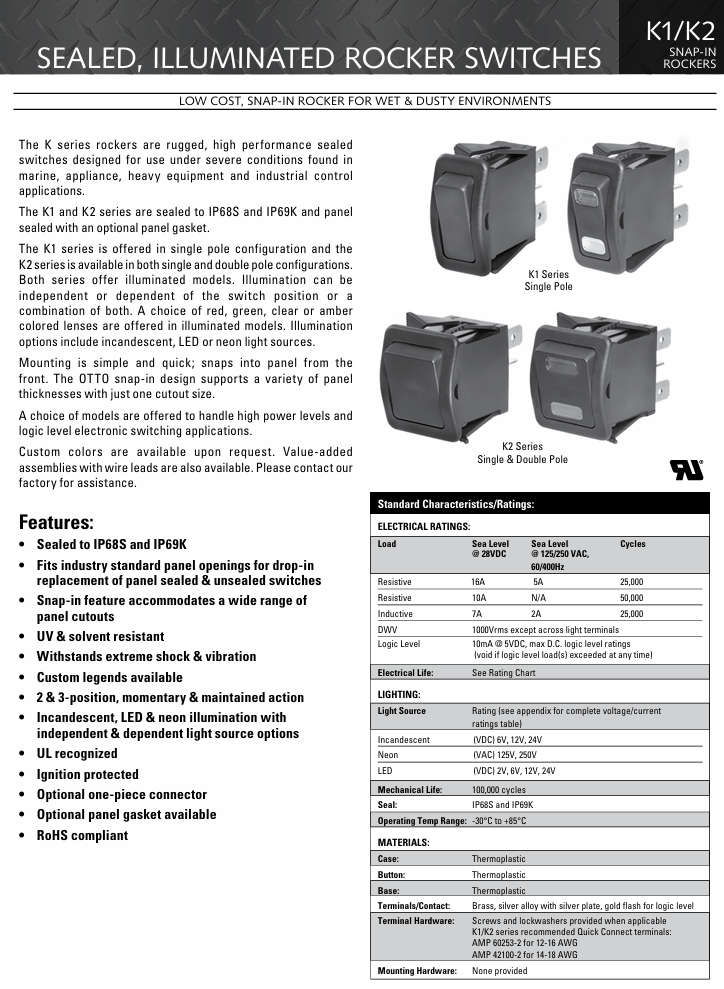

The K series rockers are rugged, high performance sealed switches designed for use under severe conditions found in marine, appliance, heavy equipment and industrial control applications. Sealed to IP68S and IP69K with an optional panel gasket available.
The K1 series is offered in single pole configuration while the K2 series is available in single and double pole configurations. Both series offer illuminated models. Illumination can be independent or dependent of the switch position or a combination of both. A choice of red, green, clear or amber colored lenses are offered in illuminated models. Illumination options include incandescent, LED or neon light sources.
Mounting is simple and quick; snaps into panel from the front. The OTTO snap-in design supports a variety of panel thicknesses with just one cutout size specified. A choice of models are offered to handle power levels to 16 amps, 1/2 HP and logic level electronic switching applications.
OTTO can provide custom colors upon request. Value-added assemblies with wire leads are also available. Please consult the factory for assistance.
