Product Attribute |
Attribute Value |
|
If - Forward Current: |
1 A |
|
Vrrm - Repetitive Reverse Voltage: |
40 V |
|
Vf - Forward Voltage: |
600 mV |
|
Ifsm - Forward Surge Current: |
40 A |
|
Ir - Reverse Current: |
1 mA |
|
Minimum Operating Temperature: |
- 65 °C |
|
Maximum Operating Temperature: |
+ 125 °C |
|
Height: |
2.13 mm |
|
Length: |
4.32 mm |
|
Width: |
3.56 mm |
|
Unit Weight: |
0.006349 oz |

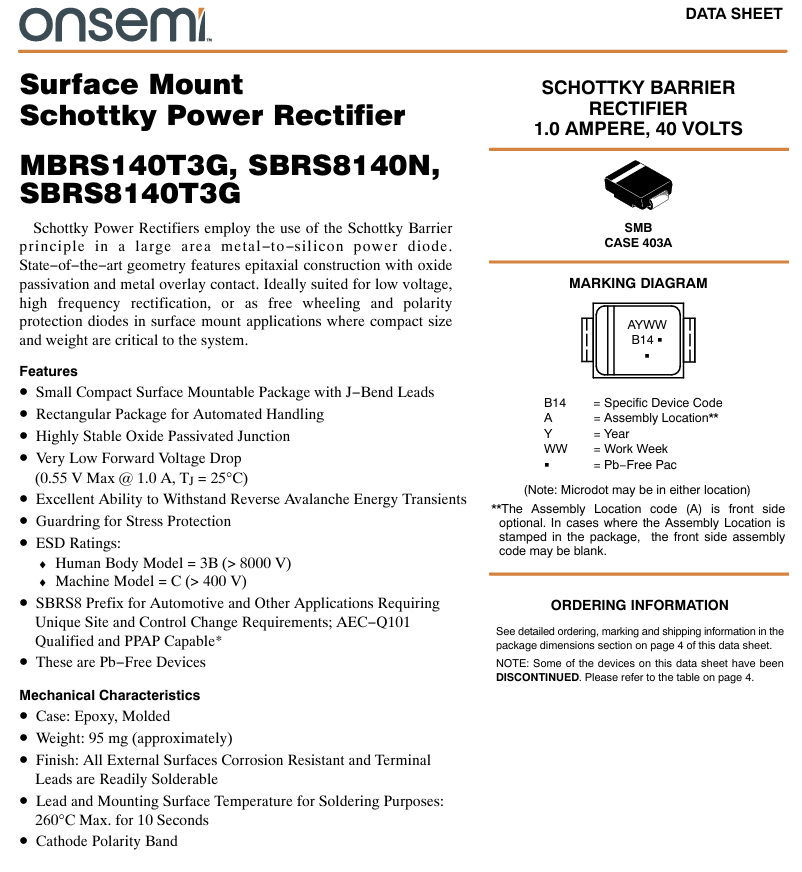

The Schottky Rectifier employs the Schottky Barrier principle in a large area metal-to-silicon power diode. The Schottky Rectifier's state-of-the-art geometry features epitaxial construction with oxide passivation and metal overlay contact. It is ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system.
