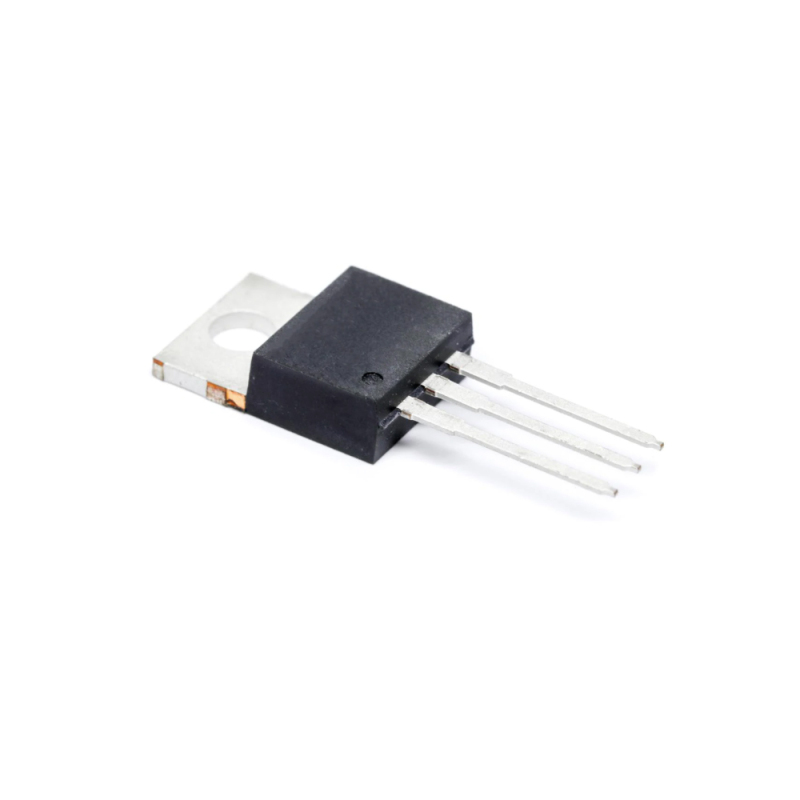

  • Onsemi Linear Voltage Regulators LM337TG
1/1
  • Onsemi Linear Voltage Regulators LM337TG

In Stock ! Onsemi Linear Voltage Regulators LM337TG

Brand : Onsemi
Date Code : 2302
Packing : Tube
Package : TO-220-3
Minimum Packing : 50
$0.00 $0.30
Received successfully
Coupon Code
CONTINUE SHOPPING
Discount
  • GET $10.00 OFF ON ORDERS OVER $100.00
Quantity
-
+
0 In Stock ; Ship In 48 Hours
  • Onsemi Linear Voltage Regulators LM337TG
  • Onsemi Linear Voltage Regulators LM337TG
1/1
  • Onsemi Linear Voltage Regulators LM337TG
  • Description
Features:
Linear Voltage Regulators 1.5A -1.2 to -37V ADJ Negative

Product Attribute

Attribute Value

Output Voltage:

- 37 V to - 1.2 V

Output Current:

1.5 A

Output Type:

Adjustable

Input Voltage - Min:

- 4.2 V

Input Voltage - Max:

- 40 V

Minimum Operating Temperature:

0 °C

Maximum Operating Temperature:

+ 125 °C

Height:

9.28 mm

Length:

10.28 mm

Line Regulation:

0.04 %/V

Load Regulation:

1 %/V

PSRR / Ripple Rejection - Typ:

77 dB

Width:

4.82 mm

Unit Weight:

0.211644 oz

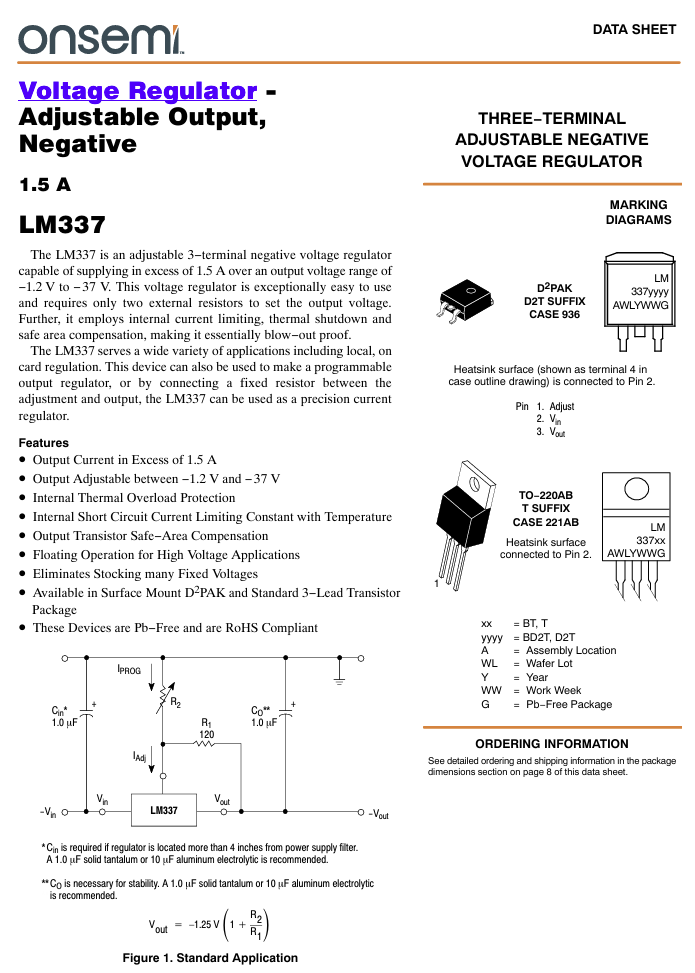

The LM337 is an adjustable 3-terminal negative linear voltage regulator capable of supplying in excess of 1.5 A over an output voltage range of -1.2V to -37 V. This linear voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, it employs internal current limiting, thermal shutdown and safe area compensation, making it essentially blow-out proof.

The LM337 serves a wide variety of applications including local, on card regulation. This linear voltage regulator can also be used to make a programmable output regulator, or by connecting a fixed resistor between the adjustment and output, the LM337 can be used as a precision current regulator.
