Home > Passive Component > Transistors > In Stock ! Onsemi Bipolar Transistors KSC5026MOS
  • Onsemi Bipolar Transistors  KSC5026MOS
1/1
  • Onsemi Bipolar Transistors  KSC5026MOS

In Stock ! Onsemi Bipolar Transistors KSC5026MOS

Brand : Onsemi
Date Code : 2314
Packing : Bag
Package : TO-126-3
Minimum Packing : 2000
$0.00 $0.50
Received successfully
Coupon Code
CONTINUE SHOPPING
Discount
  • GET $10.00 OFF ON ORDERS OVER $100.00
Quantity
-
+
0 In Stock ; Ship In 48 Hours
  • Onsemi Bipolar Transistors  KSC5026MOS
  • Onsemi Bipolar Transistors  KSC5026MOS
1/1
  • Onsemi Bipolar Transistors  KSC5026MOS

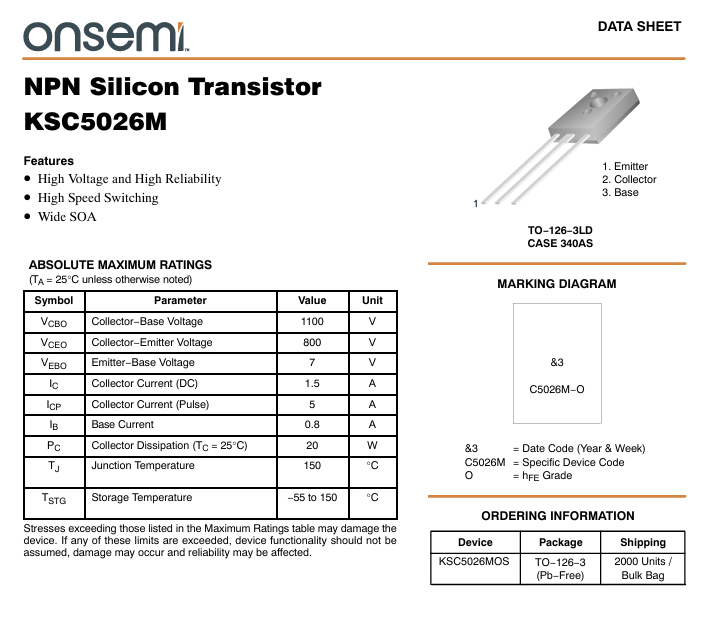

  • Description
Features:
Bipolar Transistors - BJT NPN Si Transistor

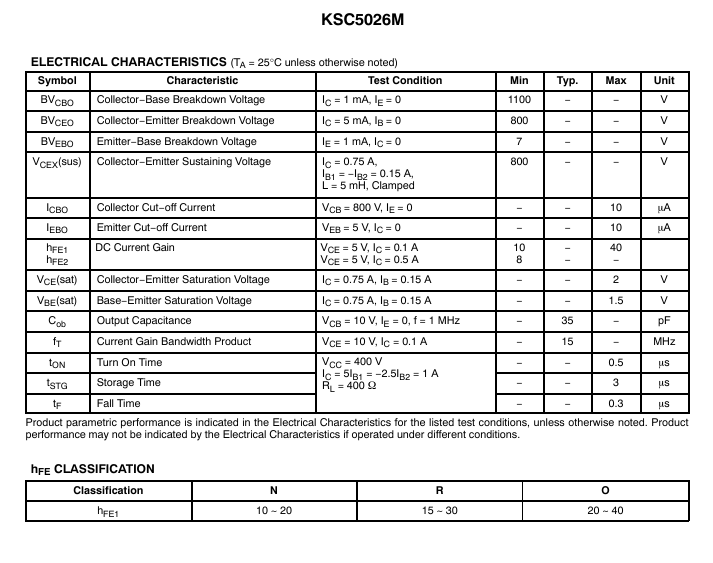

Product Attribute

Attribute Value

Maximum DC Collector Current:

1.5 A

Collector- Emitter Voltage VCEO Max:

800 V

Collector- Base Voltage VCBO:

1.1 kV

Emitter- Base Voltage VEBO:

7 V

Collector-Emitter Saturation Voltage:

2 V

Pd - Power Dissipation:

20 W

Gain Bandwidth Product fT:

15 MHz

Maximum Operating Temperature:

+ 150 °C

Continuous Collector Current:

1.5 A

Height:

11 mm

Length:

8 mm

Width:

3.25 mm

Unit Weight:

0.026843 oz
