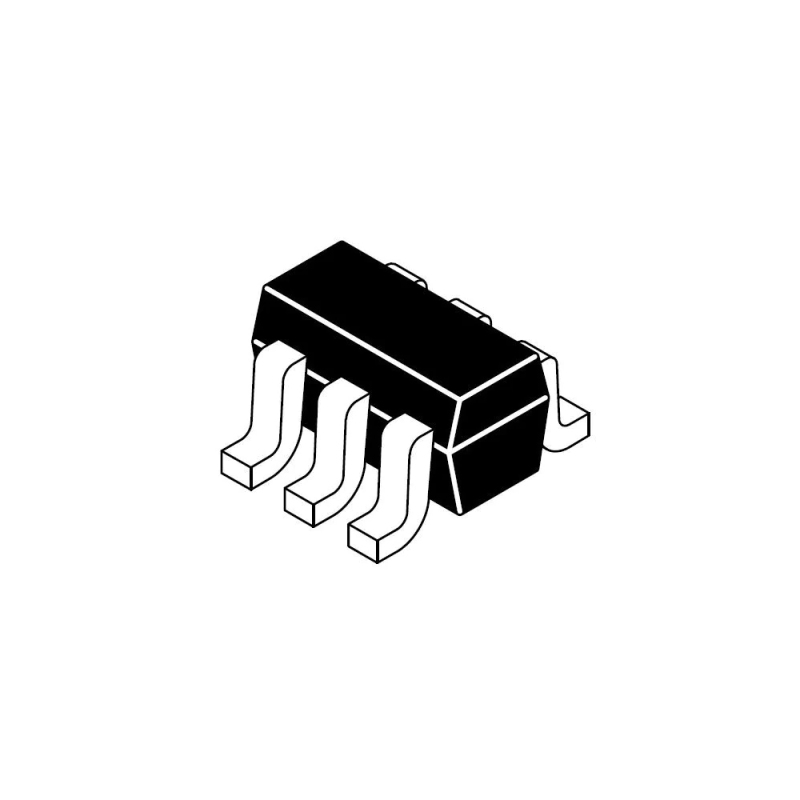

In Stock ! Onsemi Bipolar Transistors BC847BPDW1T1G

Name: In Stock ! Onsemi Bipolar Transistors BC847BPDW1T1G
Brand: YW SHOP
SKU: In Stock ; Ship In 48 Hours
Price: 0.02 USD
Availability: InStock

Brand : Onsemi
Date Code : 2150
Packing : Reel
Package : SC-70-6
Minimum Packing : 3000

$0.02

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET $10.00 OFF ON ORDERS OVER $100.00

Add to Favorites

facebook
line
twitter
whatsapp
pinterest
tumblr
linkedin

1/1

Description

Features:

Bipolar Transistors - BJT 100mA 50V Dual Complementary

Product Attribute	Attribute Value
Maximum DC Collector Current:	100 mA
Collector- Emitter Voltage VCEO Max:	45 V
Collector- Base Voltage VCBO:	50 V
Emitter- Base Voltage VEBO:	6 V
Collector-Emitter Saturation Voltage:	600 mV, 650 mV
Pd - Power Dissipation:	380 mW
Gain Bandwidth Product fT:	100 MHz
Minimum Operating Temperature:	- 55 °C
Maximum Operating Temperature:	+ 150 °C
Continuous Collector Current:	100 mA
DC Collector/Base Gain hfe Min:	150
Height:	0.9 mm
Length:	2 mm
Width:	1.25 mm
Unit Weight:	0.000988 oz
