Features:
|
Product Attribute |
Attribute Value |
|
Vz - Zener Voltage: |
5.6 V |
|
Mounting Style: |
SMD/SMT |
|

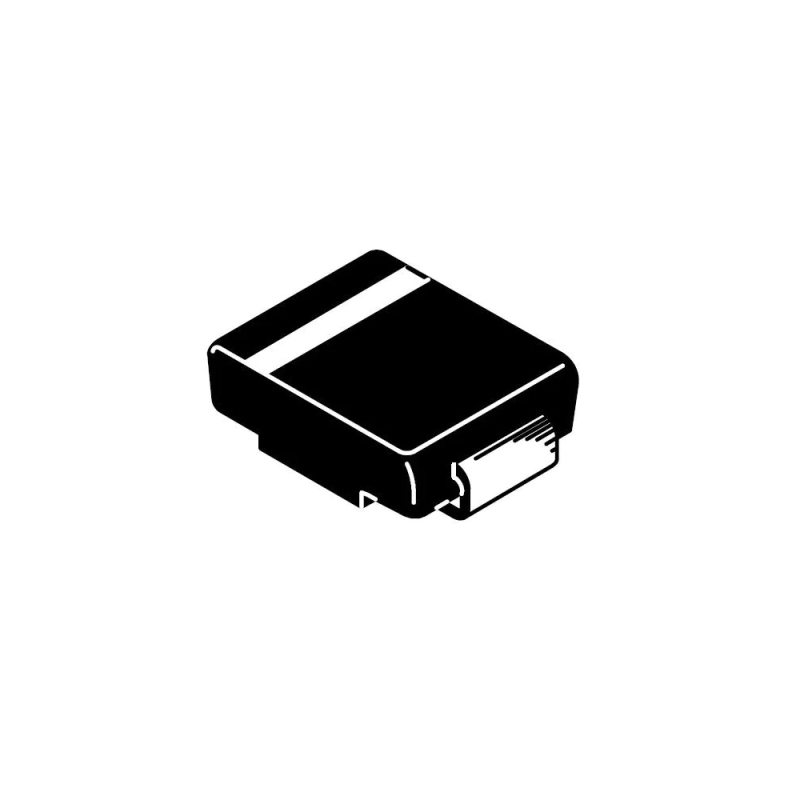

Package / Case: |
SMB-2 |
|
Pd - Power Dissipation: |
3 W |
|
Voltage Tolerance: |
5 % |
|
Ir - Maximum Reverse Leakage Current: |
5 uA |
|
Zz - Zener Impedance: |
2 Ohms |
|
Minimum Operating Temperature: |
- 65 C |
|
Maximum Operating Temperature: |
+ 150 C |
|
Configuration: |
Single |
|
Test Current: |
66.9 mA |
|
Height: |
2.3 mm |
|
Ir - Reverse Current: |
5 uA |
|
Length: |
4.32 mm |
|
Vf - Forward Voltage: |
1.5 V |
|
Width: |
3.56 mm |
|
Zener Current: |
267 mA |
|
Unit Weight: |
0.003386 oz |

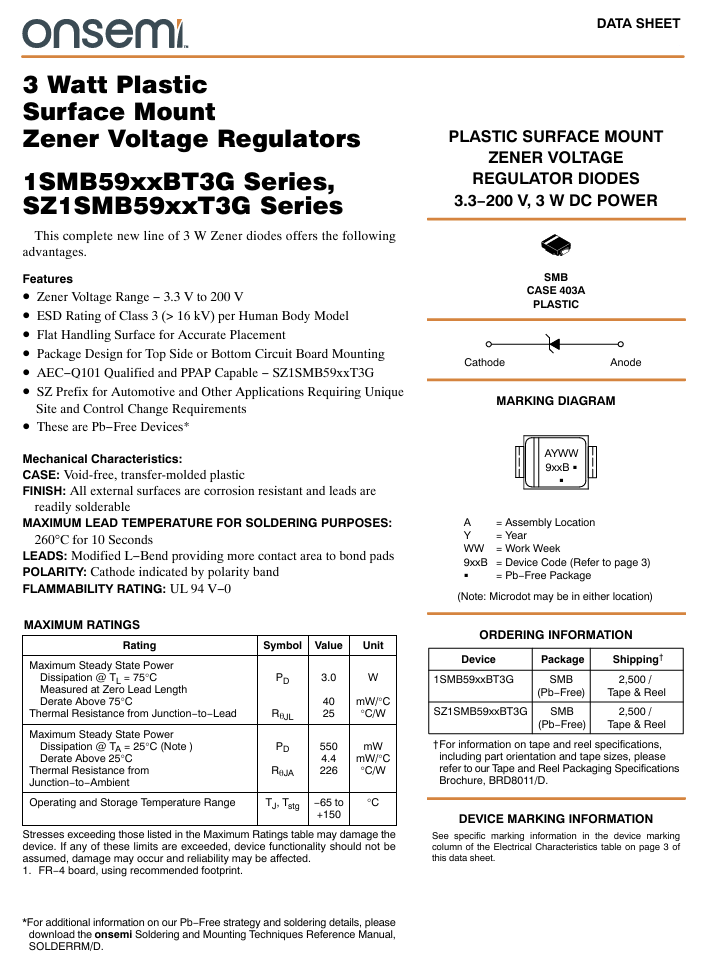

This 3.0 W Zener diode is designed for general purpose voltage regulation applications.
