| Brand | Coilcraft |
| Date Code | 26+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 500pcs |

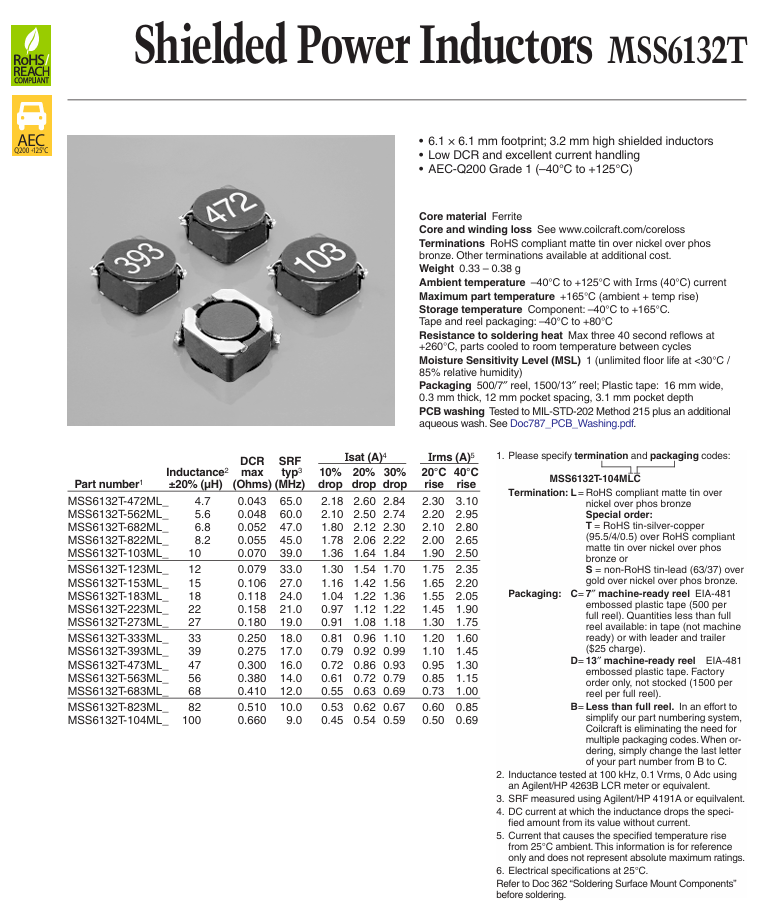

Power Inductors - SMD 22uH Shld 20% 1.9A 158mOhms
Features：

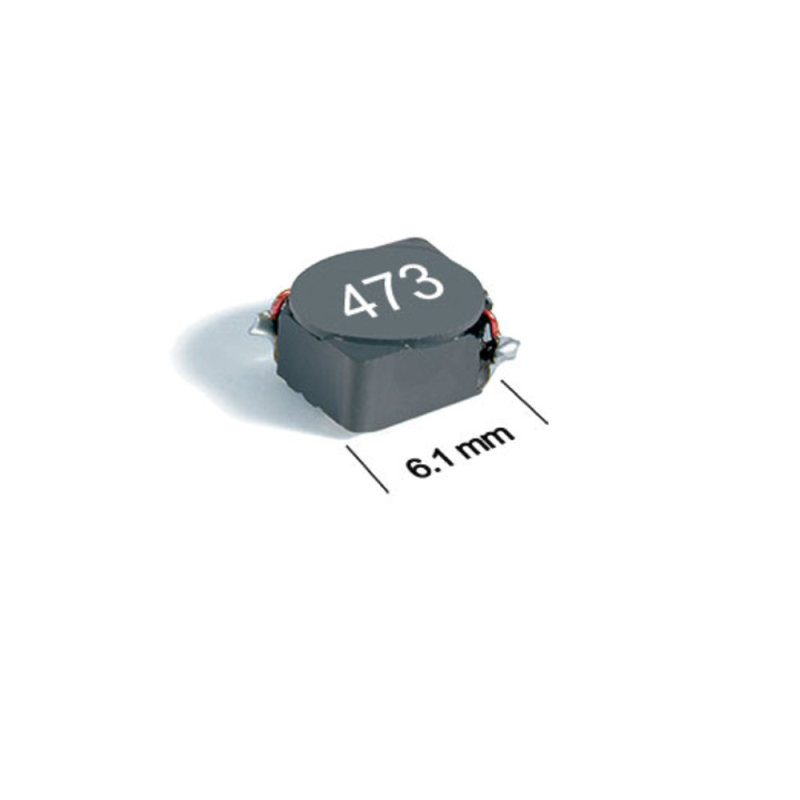

Coilcraft MSS6132T Series shielded surface-mount power inductors feature low DC resistance and excellent current handling in a wide range of inductance values, making them a cost-effective option for a variety of general-purpose applications.
Low-loss ferrite drum core for flat inductance vs current
Low DC resistance for greater efficiency
Excellent current handling
Magnetic shielding allows high-density mounting
AEC-Q200 Grade 1 (−40°C to +125°C)
|
Product Attribute |
Attribute Value |
|
Inductance: |
22 uH |
|
Tolerance: |
20 % |
|
Maximum DC Current: |
1.9 A |
|
Maximum DC Resistance: |
158 mOhms |
|
Saturation Current: |
1.22 A |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 125℃ |
|
Self Resonant Frequency: |
21 MHz |
|
Termination: |
Standard |
|
Length: |
6.1 mm |
|
Width: |
6.1 mm |
|
Height: |
3.2 mm |
|
Core Material: |
Ferrite |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
100 kHz |
|
Unit Weight: |
380 mg |
Similar Models：
MSS6132T-472MLC MSS6132T-562MLC MSS6132T-682MLC MSS6132T-822MLC MSS6132T-103MLC MSS6132T-123MLC MSS6132T-153MLC MSS6132T-183MLC MSS6132T-223MLC MSS6132T-273MLC MSS6132T-333MLC MSS6132T-393MLC MSS6132T-473MLC MSS6132T-563MLC MSS6132T-683MLC MSS6132T-823MLC MSS6132T-104MLC
