| Brand | Maxim |
| Date Code | 25+ |

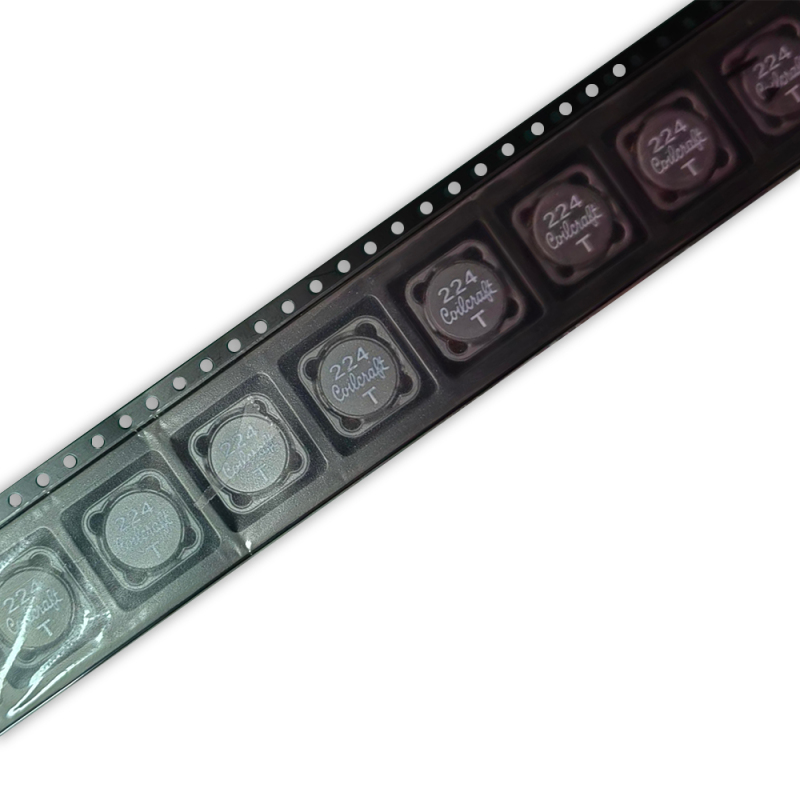

| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 500pcs |

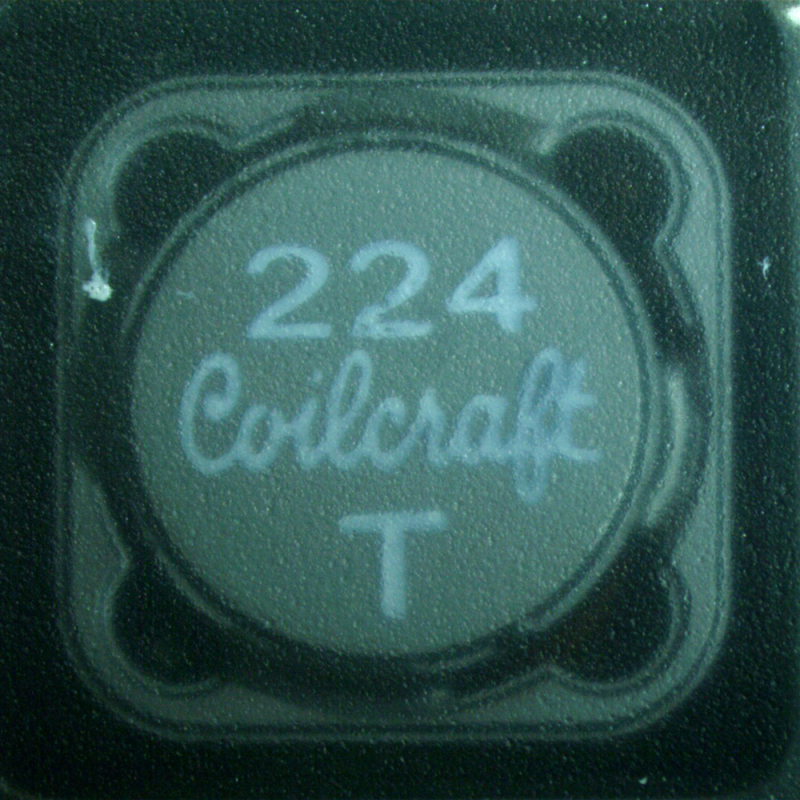

Power Inductors - SMD 220uH Shld 10% 1.6A 359.6mOhm AECQ2
Features：

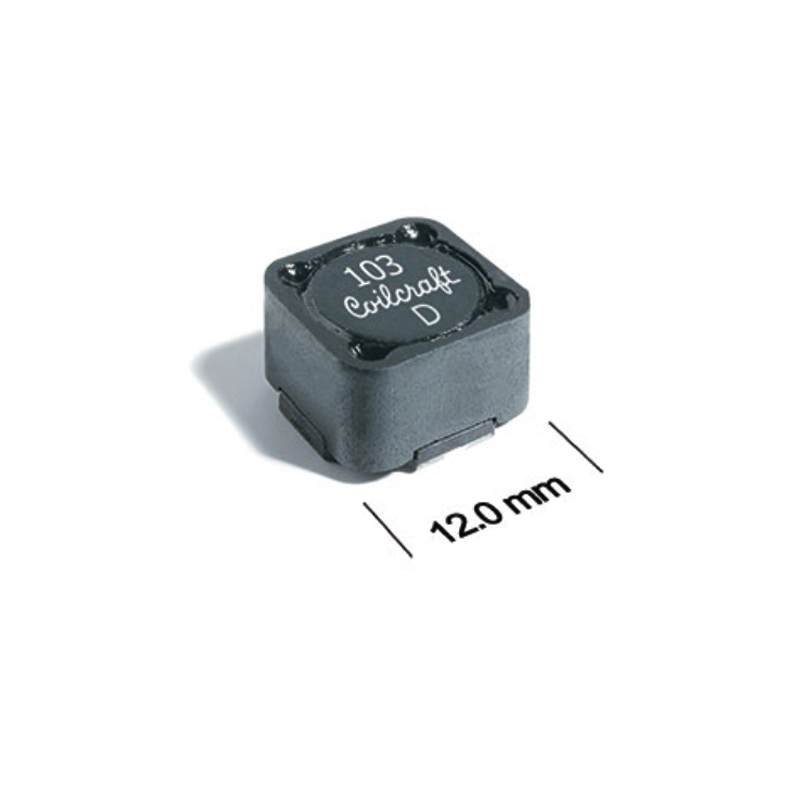

Coilcraft MSS1278 Series shielded surface-mount power inductors feature low DC resistance and excellent current handling in a wide range of inductance values, making them a cost-effective option for a variety of general-purpose applications.
Low-loss ferrite drum core for flat inductance vs current
Low DC resistance for greater efficiency
Excellent current handling
Magnetic shielding allows high-density mounting
AEC-Q200 Grade 3 (-40°C to +85°C)
|
Product Attribute |
Attribute Value |
|
Inductance: |
220 uH |
|
Tolerance: |
10 % |
|
Maximum DC Current: |
1.6 A |
|
Maximum DC Resistance: |
359.6 mOhms |
|
Saturation Current: |
2.36 A |
|
Minimum Operating Temperature: |
- 40°C |
|
Maximum Operating Temperature: |
+ 85°C |
|
Self Resonant Frequency: |
3.4 MHz |
|
Termination: |
Standard |
|
Length: |
12.3 mm |
|
Width: |
12.3 mm |
|
Height: |
8 mm |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
100 kHz |
|
Unit Weight: |
4 g |
Similar Models：
MSS1278-142MLD MSS1278-472MLD MSS1278-562MLD MSS1278-682MLD MSS1278-822MLD MSS1278-103MLD MSS1278-123MLD MSS1278-153MLD MSS1278-183MLD MSS1278-223MLD MSS1278-273MLD MSS1278-333MLD MSS1278-393MLD MSS1278-473MLD MSS1278-563MLD MSS1278-683MLD MSS1278-823MLD MSS1278-104MLD MSS1278-124KLD MSS1278-154KLD MSS1278-184KLD MSS1278-224KLD MSS1278-274KLD MSS1278-334KLD MSS1278-394KLD MSS1278-474KLD MSS1278-564KLD MSS1278-684KLD MSS1278-824KLD MSS1278-105KLD
