| Brand | Coilcraft |
| Date Code | 25+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 200pcs |

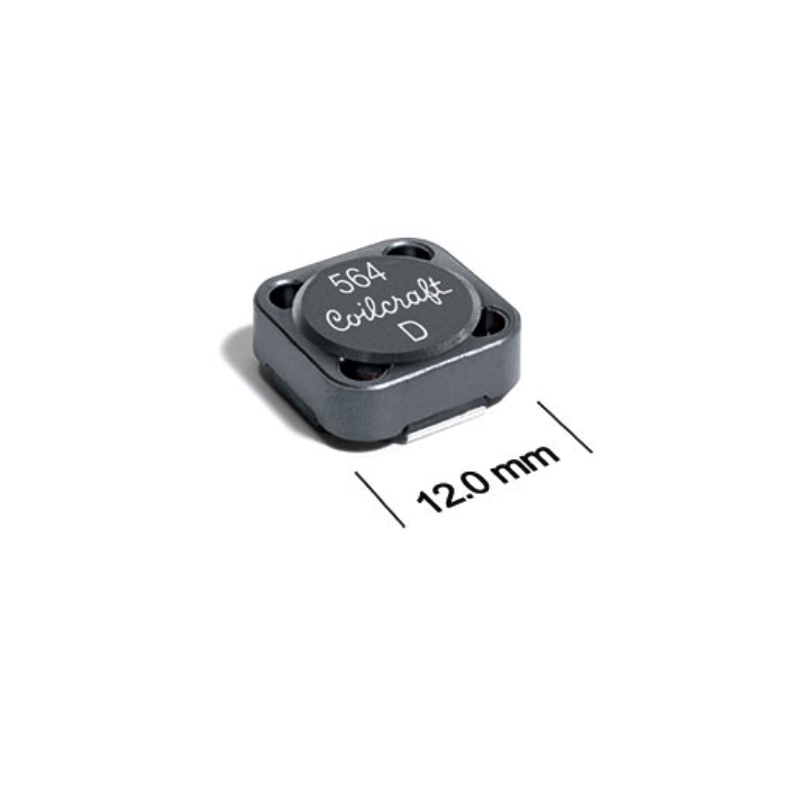

Power Inductors - SMD 68uH Shld 20% 1.8A 185.9mOhm AECQ2

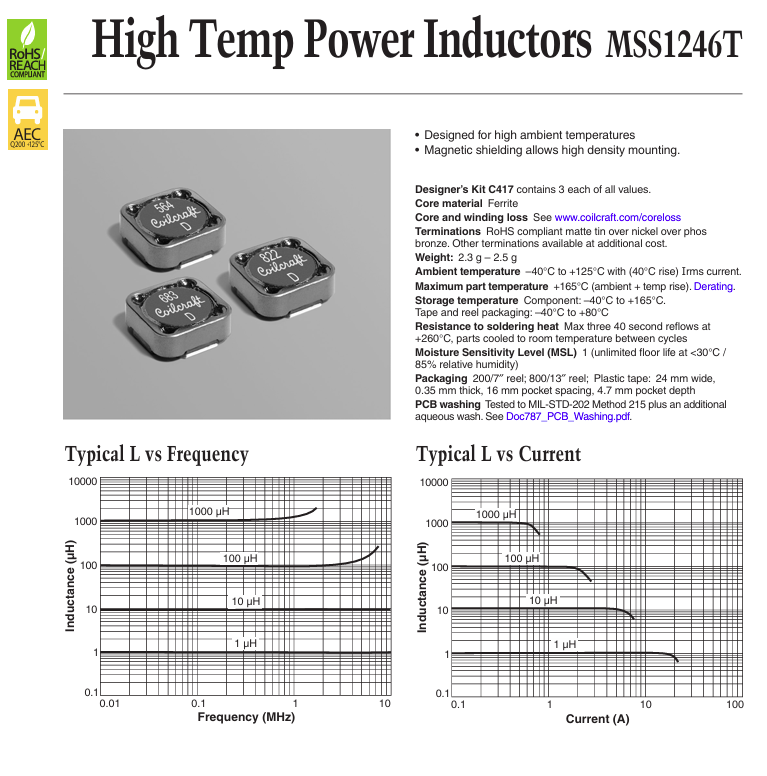

Features：
Coilcraft MSS1246T Series shielded surface-mount power inductors feature low DC resistance and excellent current handling in a wide range of inductance values, making them a cost-effective option for a variety of general-purpose applications.
Low-loss ferrite drum core for flat inductance vs current
Low DC resistance for greater efficiency
Excellent current handling
Magnetic shielding allows high-density mounting
AEC-Q200 Grade 1 (−40°C to +125°C)
|
Product Attribute |
Attribute Value |
|
Inductance: |
68 uH |
|
Tolerance: |
20 % |
|
Maximum DC Current: |
1.8 A |
|
Maximum DC Resistance: |
185.9 mOhms |
|
Saturation Current: |
2.74 A |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 125℃ |
|
Self Resonant Frequency: |
9.7 MHz |
|
Termination: |
Standard |
|
Length: |
12 mm |
|
Width: |
12 mm |
|
Height: |
4.6 mm |
|
Core Material: |
Ferrite |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
100 kHz |
|
Unit Weight: |
2.300 g |

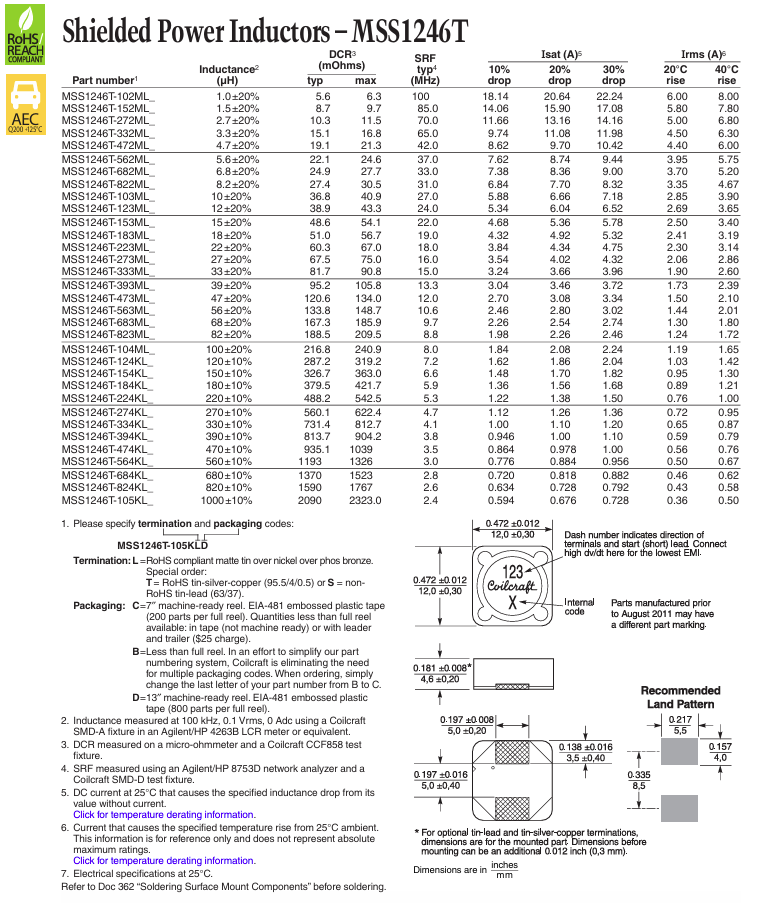

Similar Models：
MSS1246T-102MLC MSS1246T-152MLC MSS1246T-272MLC MSS1246T-332MLC MSS1246T-472MLC MSS1246T-562MLC MSS1246T-682MLC MSS1246T-822MLC MSS1246T-103MLC MSS1246T-123MLC MSS1246T-153MLC MSS1246T-183MLC MSS1246T-223MLC MSS1246T-273MLC MSS1246T-333MLC MSS1246T-393MLC MSS1246T-473MLC MSS1246T-563MLC MSS1246T-683MLC MSS1246T-823MLC MSS1246T-104MLC MSS1246T-124KLC MSS1246T-154KLC MSS1246T-184KLC MSS1246T-224KLC MSS1246T-274KLC MSS1246T-334KLC MSS1246T-394KLC MSS1246T-474KLC MSS1246T-564KLC MSS1246T-684KLC MSS1246T-824KLC MSS1246T-105KLC
