| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 200pcs |

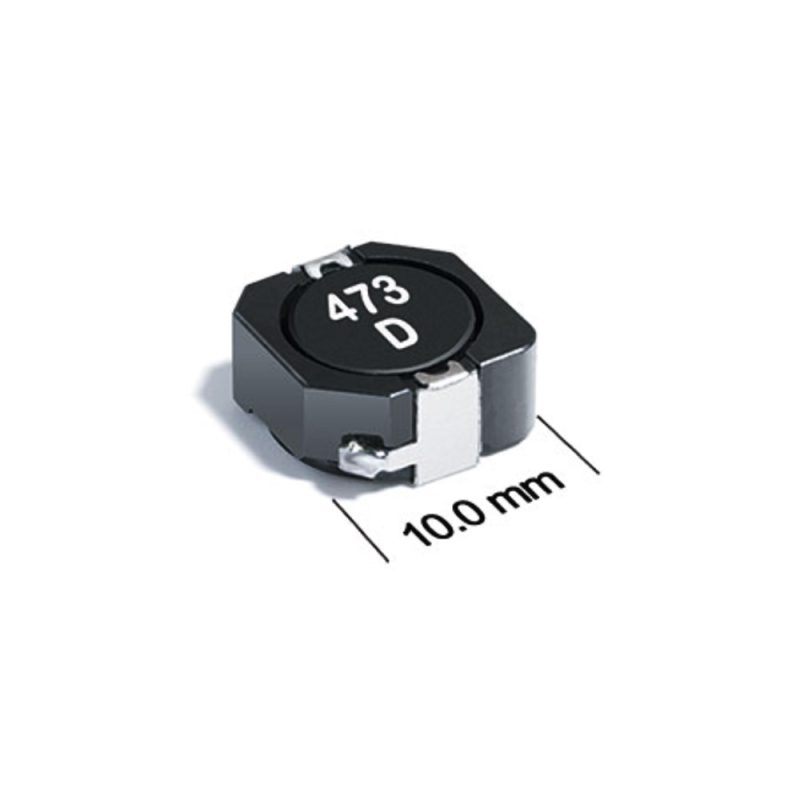

Power Inductors - SMD 68uH Shld 20% 1.88A 173.1mOhms
Features：

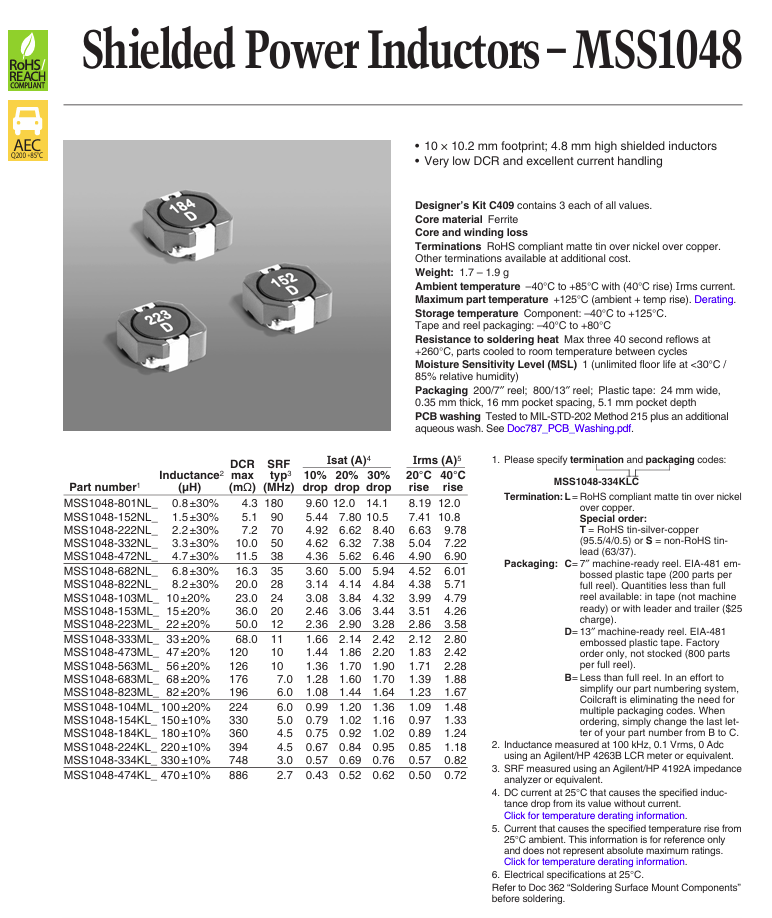

Coilcraft MSS1048 Series shielded surface-mount power inductors feature low DC resistance and excellent current handling in a wide range of inductance values, making them a cost-effective option for a variety of general-purpose applications.
Low-loss ferrite drum core for flat inductance vs current
Low DC resistance for greater efficiency
Excellent current handling
Magnetic shielding allows high-density mounting
AEC-Q200 Grade 3 (-40°C to +85°C)
|
Product Attribute |
Attribute Value |
|
Package / Case: |
10 mm x 4.8 mm x 10.2 mm |
|
Shielding: |
Shielded |
|
Inductance: |
68 uH |
|
Tolerance: |
20 % |
|
Maximum DC Current: |
1.88 A |
|
Maximum DC Resistance: |
176 mOhms |
|
Saturation Current: |
1.7 A |
|
Minimum Operating Temperature: |
- 40°C |
|
Maximum Operating Temperature: |
+ 85°C |
|
Self Resonant Frequency: |
7 MHz |
|
Termination: |
Standard |
|
Length: |
10.2 mm |
|
Width: |
10 mm |
|
Height: |
4.8 mm |
|
Core Material: |
Ferrite |
|
Test Frequency: |
100 kHz |
|
Unit Weight: |
2 g |
