| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 300pcs |

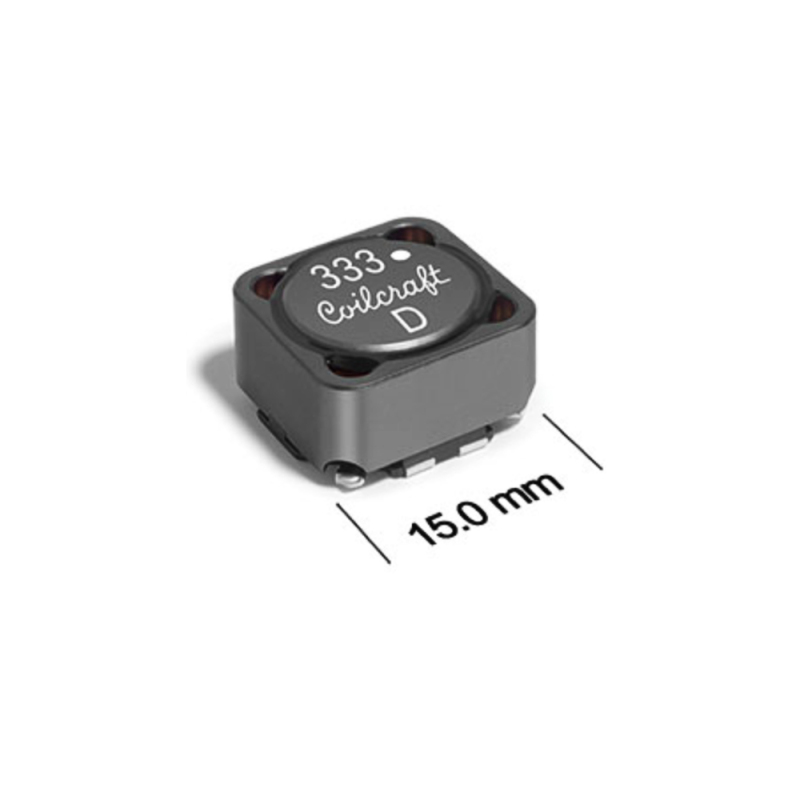

Coupled Inductors 18uH Shld 20% 4.3A 48mOhms
Features：

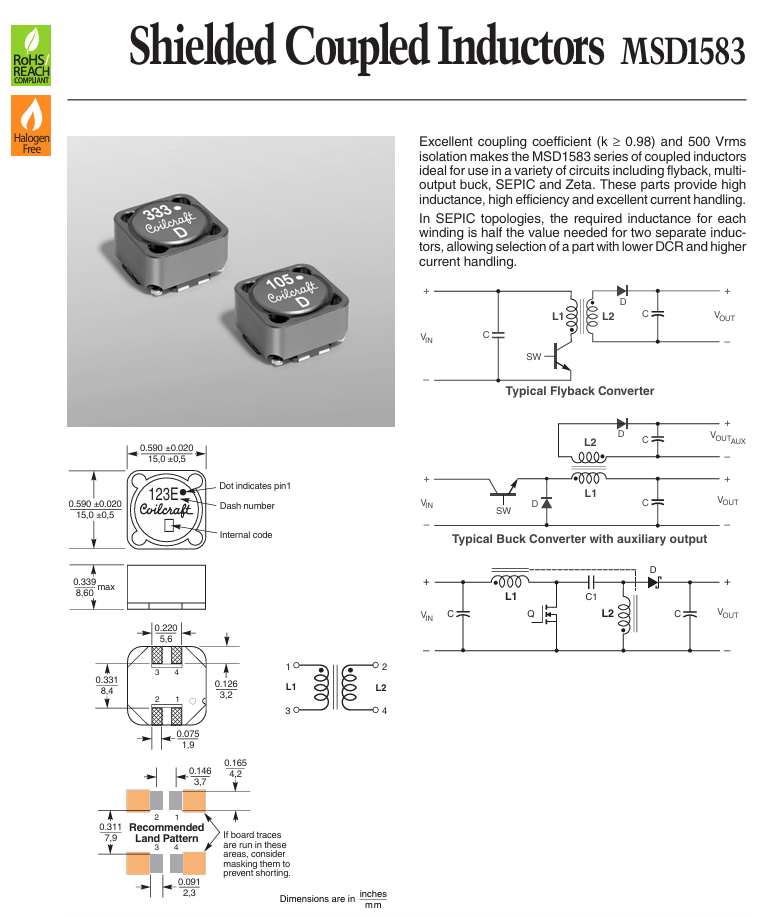

Coilcraft's MSD1583 Series of 1:1 coupled power inductors feature magnetic shielding for compact packaging and tight winding-to-winding coupling. They are ideal for Flyback, SEPIC, Ćuk, Zeta and other applications.
Ideal for Flyback, SEPIC, Ćuk, Zeta and other applications
Magnetic shielding allows high-density mounting
Tight winding coupling
Industry standard footprint
|

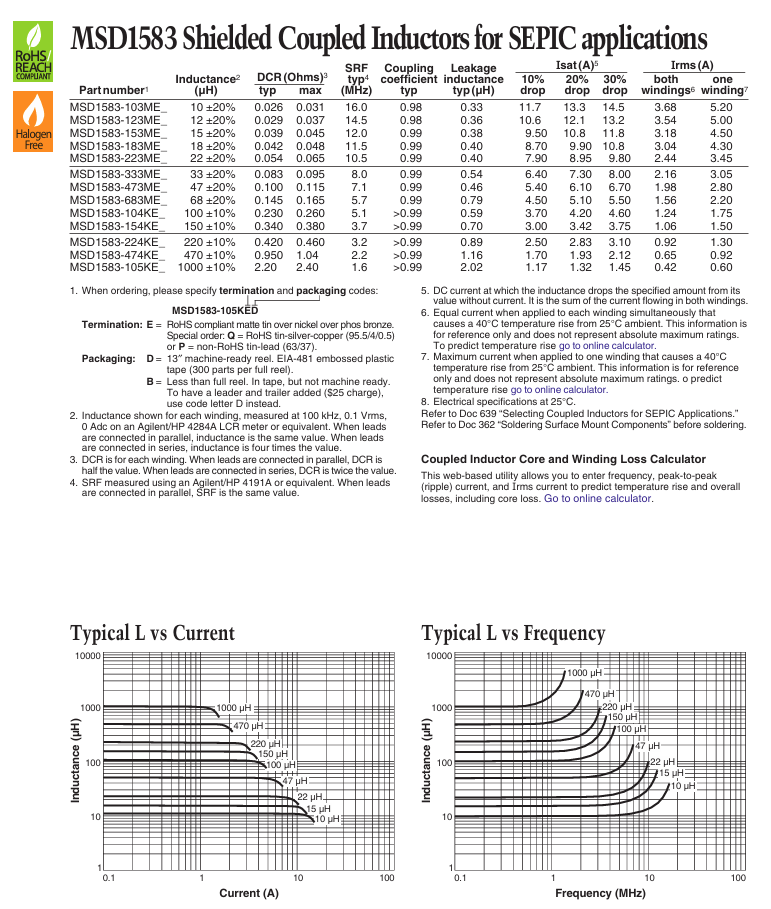

Product Attribute |
Attribute Value |
|
Inductance - Parallel: |
18 uH |
|
Inductance - Series: |
72 uH |
|
Tolerance: |
20 % |
|
Maximum DC Current: |
4.3 A |
|
Maximum DC Resistance: |
48 mOhms |
|
Length: |
15.1 mm |
|
Width: |
15.1 mm |
|
Height: |
8.6 mm |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 85℃ |
