| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 500pcs |

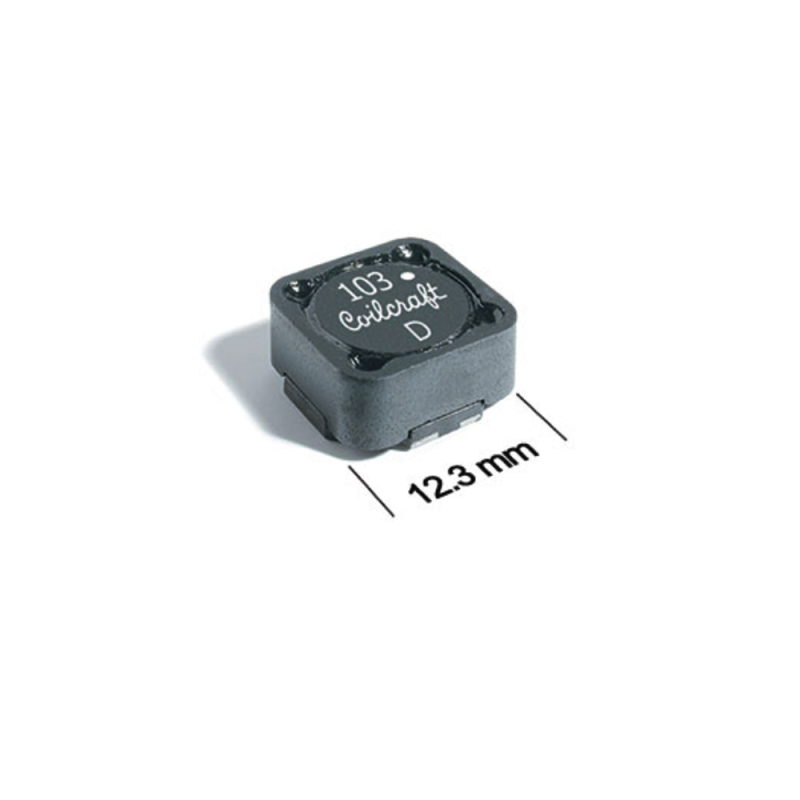

Coupled Inductors 150uH Shld 10% 1.23A 476mOhms
Features：

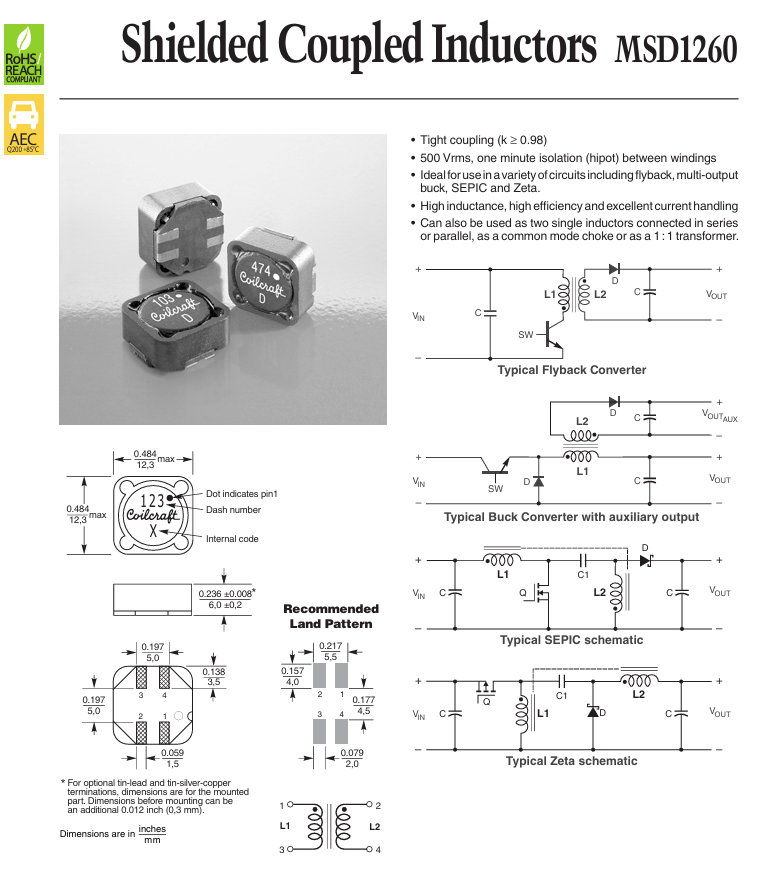

Coilcraft's MSD1260 Series of 1:1 coupled power inductors feature magnetic shielding for compact packaging and tight winding-to-winding coupling. They are ideal for Flyback, SEPIC, Ćuk, Zeta and other applications.
Ideal for Flyback, SEPIC, Ćuk, Zeta and other applications
Magnetic shielding allows high-density mounting
Tight winding coupling
Industry standard footprint
AEC-Q200 Grade 3 (−40°C to +85°C)
|

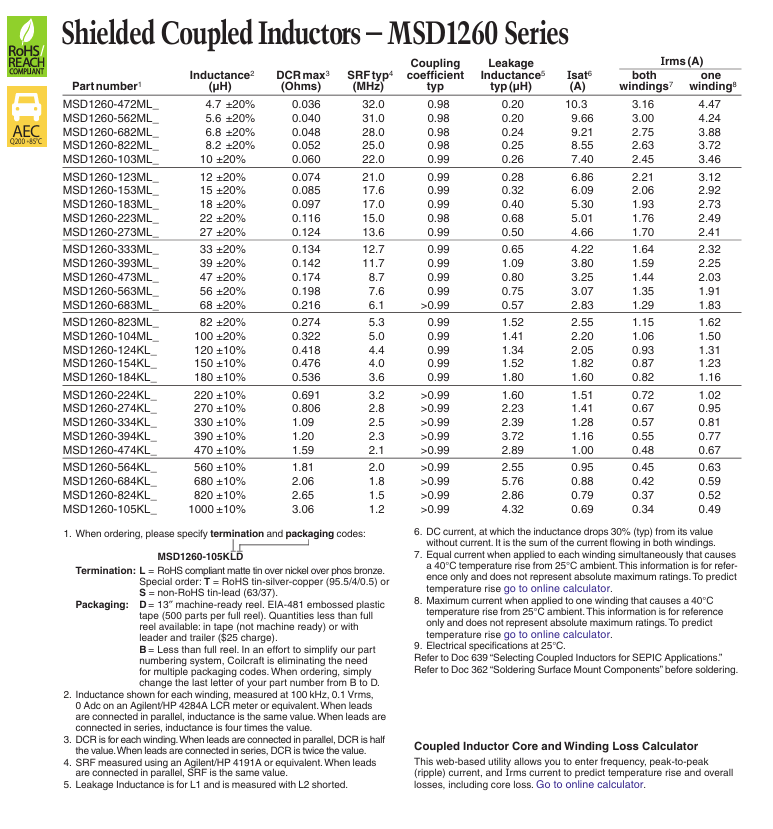

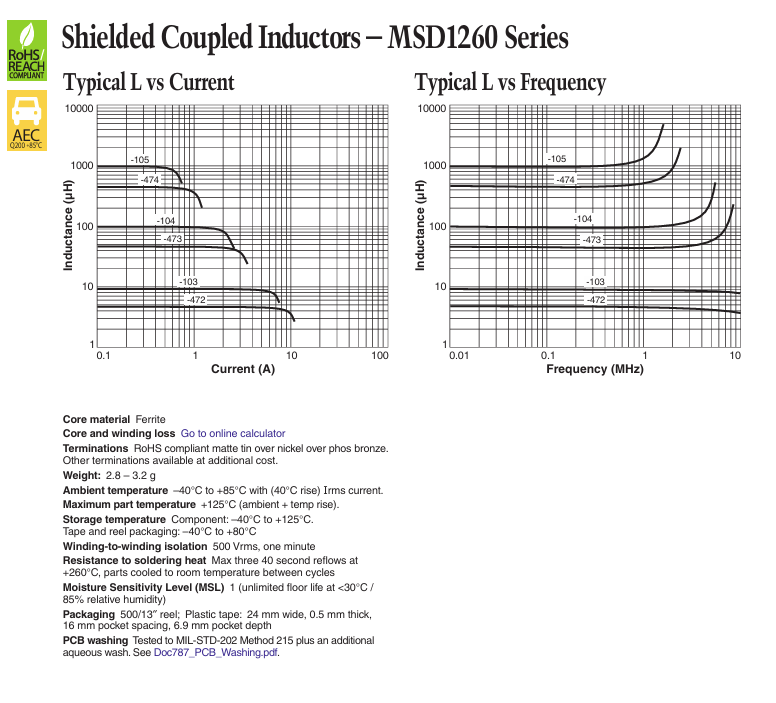

Product Attribute |
Attribute Value |
|
Inductance - Parallel: |
150 uH |
|
Inductance - Series: |
600 uH |
|
Tolerance: |
10 % |
|
Maximum DC Current: |
1.23 A |
|
Maximum DC Resistance: |
476 mOhms |
|
Length: |
12.3 mm |
|
Width: |
12.3 mm |
|
Height: |
6 mm |
|
Minimum Operating Temperature: |
- 40°C |
|
Maximum Operating Temperature: |
+ 85°C |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Unit Weight: |
3.200 g |
Similar Models：
MSD1260-472MLD MSD1260-562MLD MSD1260-682MLD MSD1260-822MLD MSD1260-103MLD MSD1260-123MLD MSD1260-153MLD MSD1260-183MLD MSD1260-223MLD MSD1260-273MLD MSD1260-333MLD MSD1260-393MLD MSD1260-473MLD MSD1260-563MLD MSD1260-683MLD MSD1260-823MLD MSD1260-104MLD MSD1260-124KLD MSD1260-154KLD MSD1260-184KLD MSD1260-224KLD MSD1260-274KLD MSD1260-334KLD MSD1260-394KLD MSD1260-474KLD MSD1260-564KLD MSD1260-684KLD MSD1260-824KLD MSD1260-105KLD MSD1260-472MLD MSD1260-562MLD MSD1260-682MLD MSD1260-822MLD MSD1260-103MLD MSD1260-123MLD MSD1260-153MLD MSD1260-183MLD MSD1260-223MLD MSD1260-273MLD MSD1260-333MLD MSD1260-393MLD MSD1260-473MLD MSD1260-563MLD MSD1260-683MLD MSD1260-823MLD MSD1260-104MLD MSD1260-124KLD MSD1260-154KLD MSD1260-184KLD MSD1260-224KLD MSD1260-274KLD MSD1260-334KLD MSD1260-394KLD MSD1260-474KLD MSD1260-564KLD MSD1260-684KLD MSD1260-824KLD MSD1260-105KLD
