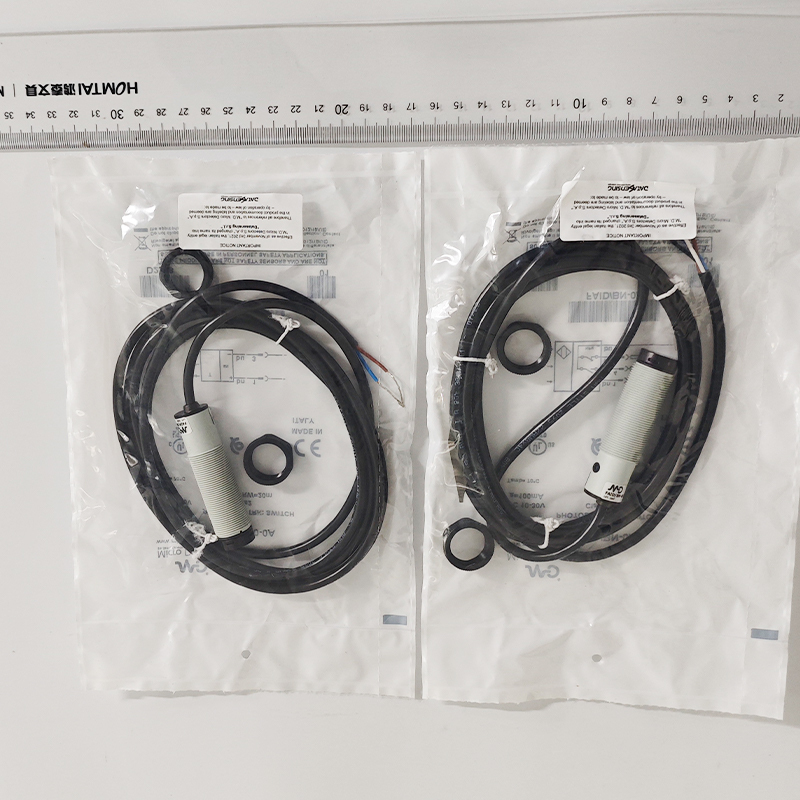

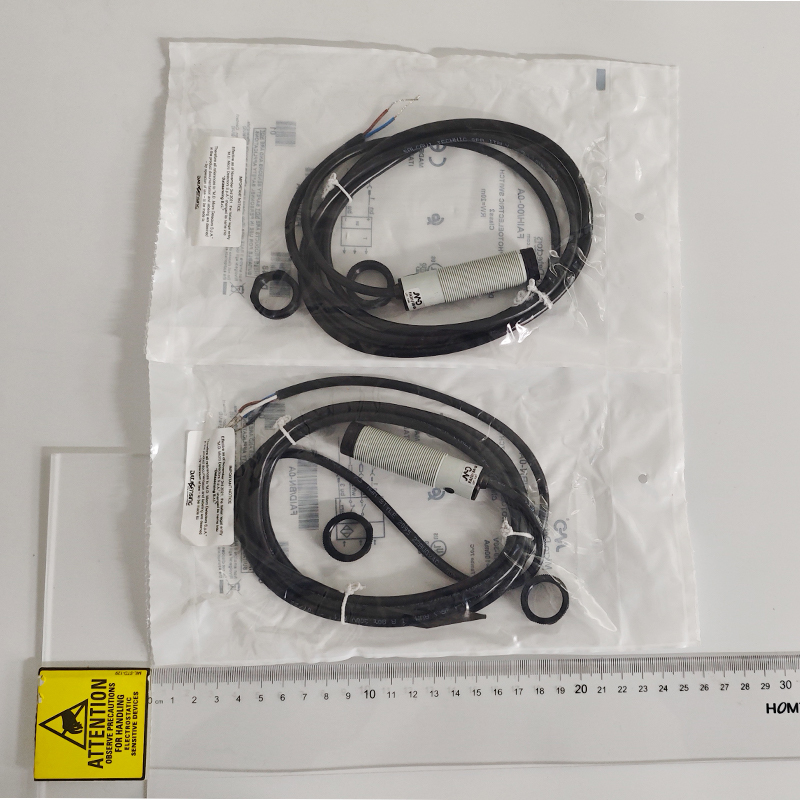

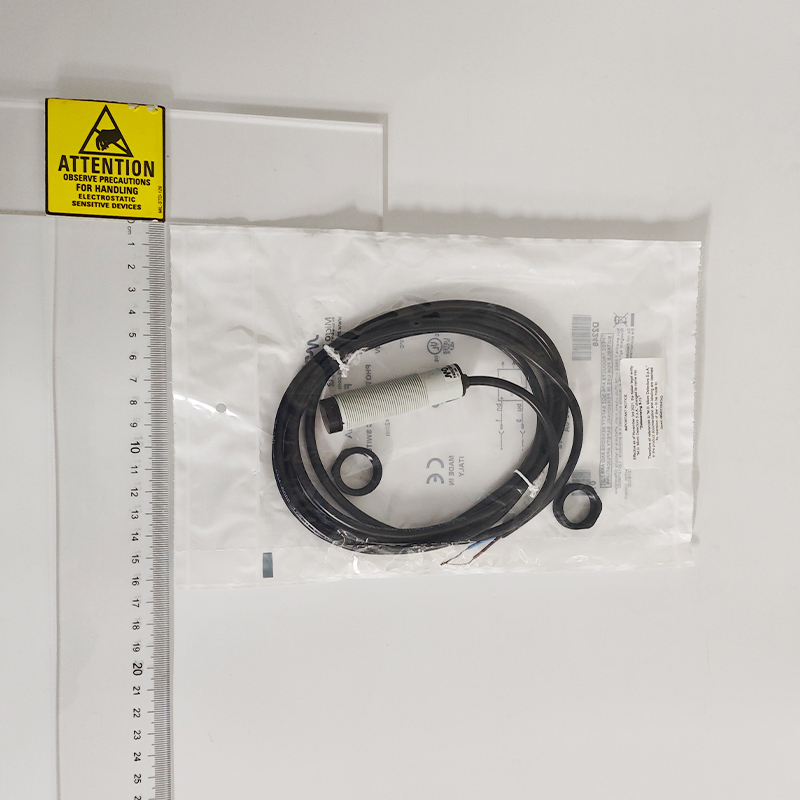

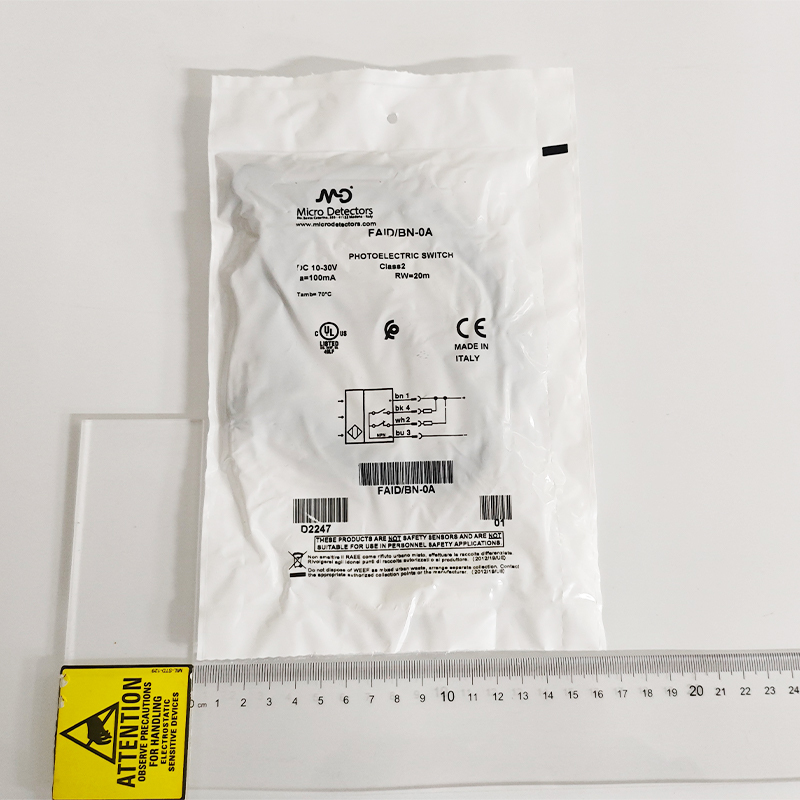

FAID/BN-0A MICRO DETECTORS Photoelectric sensor Axial Receiver 20 m, adjustment NPN NO+NC plastic cable 2m a..
Description:Photoelectric sensor Axial Receiver 20 m, adjustment NPN NO+NC plastic cable 2m axial
FAID/BN-0A Photoelectric sensor Axial Receiver 20 m adj. NPN NO+NC plast. cable 2m axial

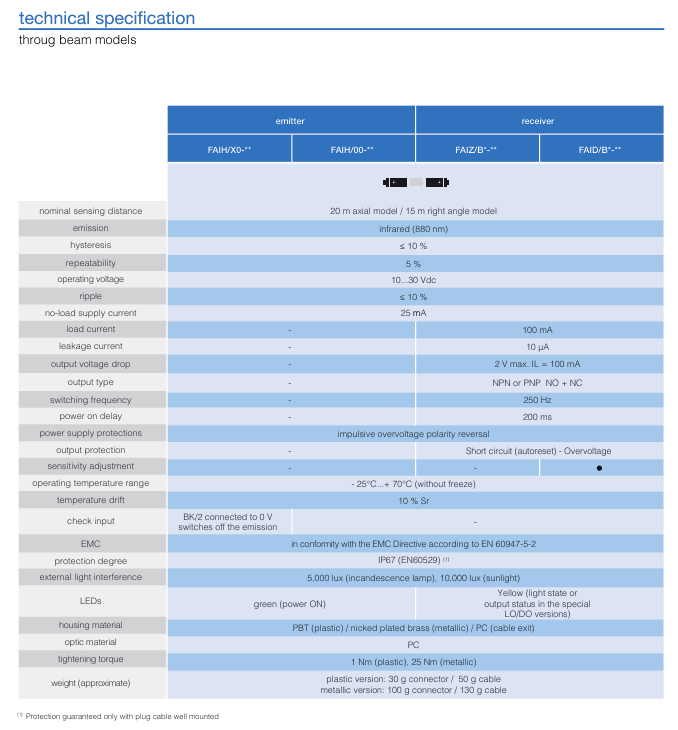

Nominal sensing distance 20m
Thermal drift of Sr ≤10% Sr
Repeat Accuracy 5%
Switching frequency 250Hz
Operating Voltage 10-30Vdc
No-Load supply current ≤25mA
Load current ≤100mA
Leakage current ≤10μA
Output voltage drop 2V max. IL =100 mA
Max ripple content 10%
LED indicators Yellow (Lon) or output status Lo/Do
Time delay before availability ≤200ms
Dimensions M18 x 1/L=67,5mm
Weight 50g
Housing Material PBT
Active Head Material PC
Tightening torque 1Nm
Operating temperature - 25°C…+ 70° C (Without freeze)
Degree of protection IP67
