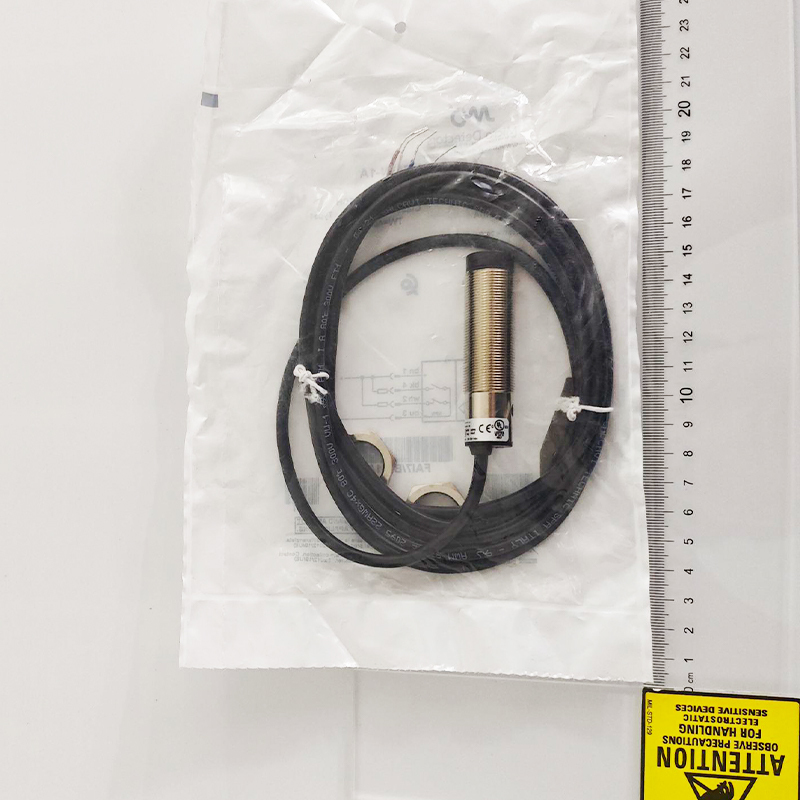

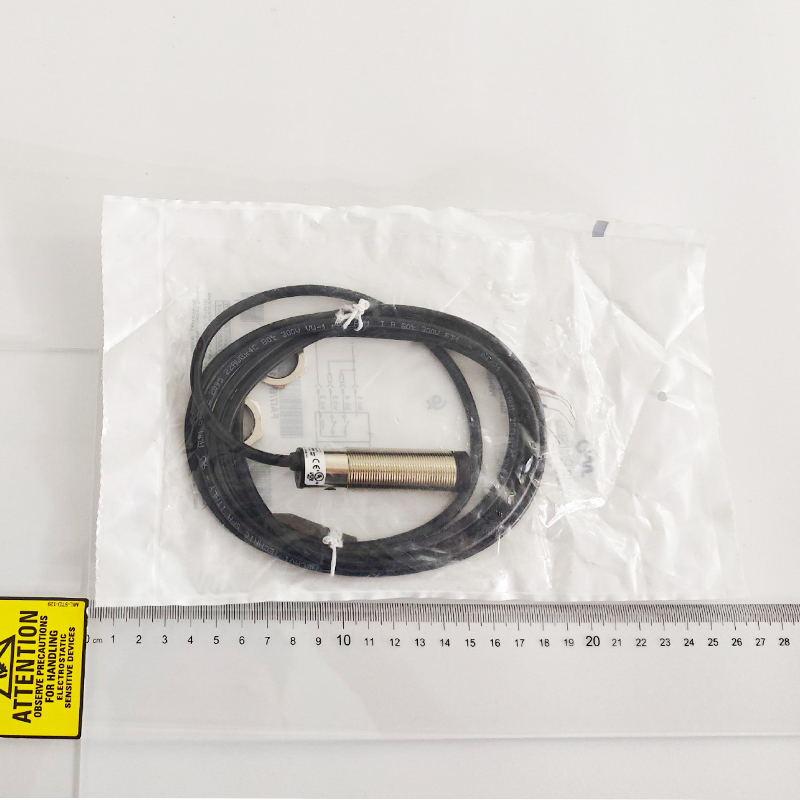

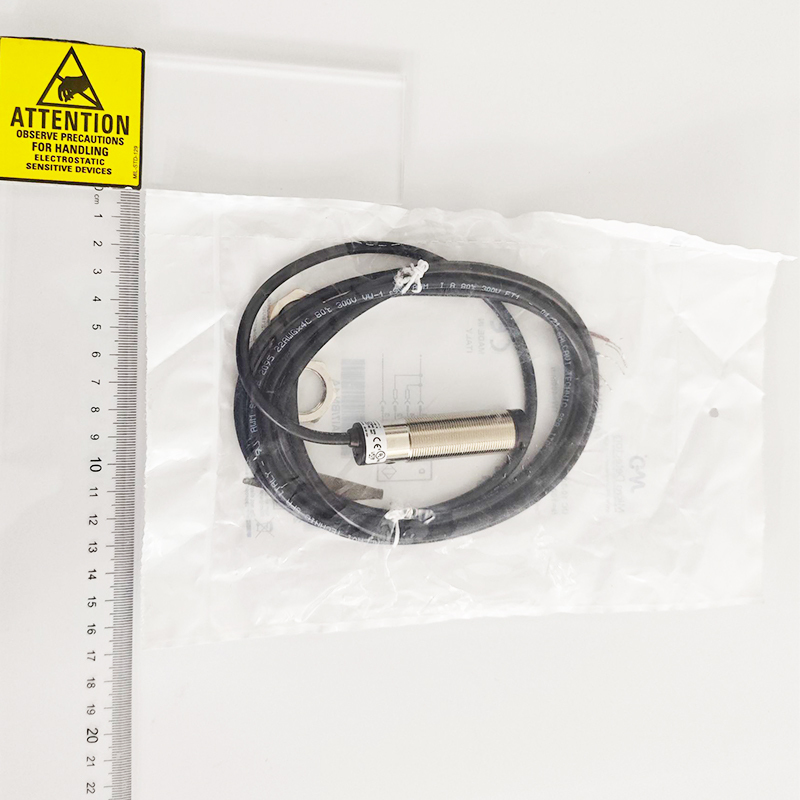

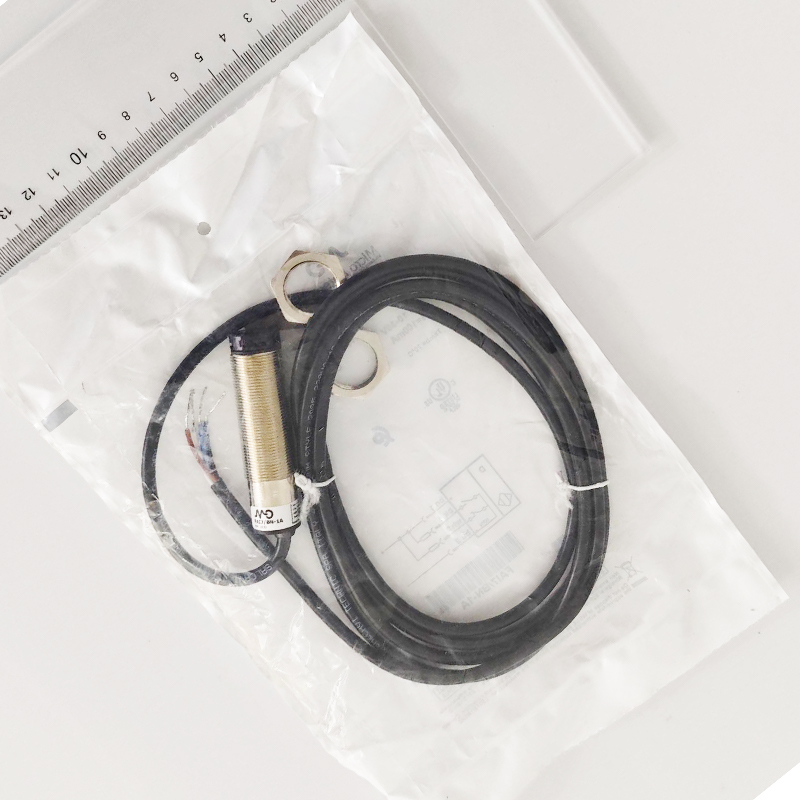

FAI7/BN-1A MICRO DETECTORS Photoelectric sensor Axial diffuse 400 mm, adjustment NPN NO+NC metallic cable 2m..
Description:Photoelectric sensor Axial diffuse 400 mm, adjustment NPN NO+NC metallic cable 2m axial
FAI7/BN-1A Photoelectric sensor Axial Diffuse 400 mm adj. NPN NO+NC metal. cable 2m axial

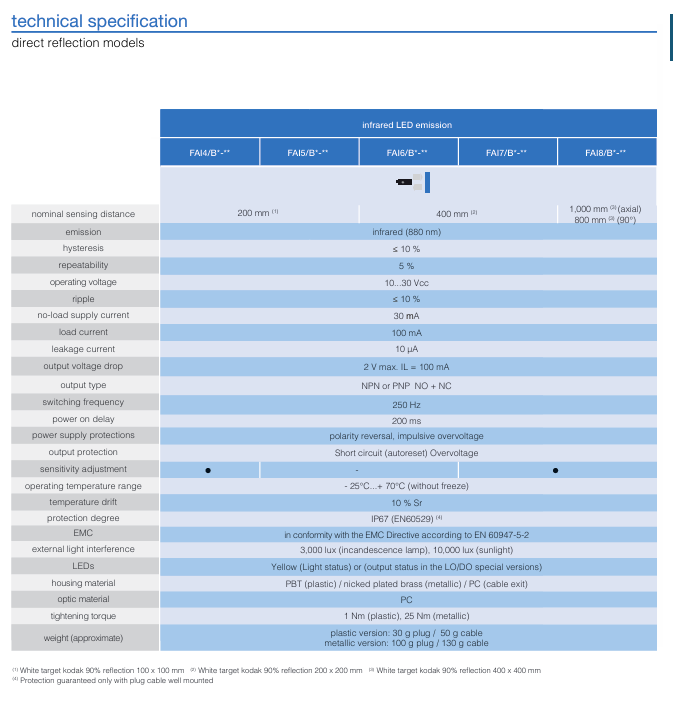

Nominal sensing distance：400mm white target 90% Kodak 200x200mm
Thermal drift of Sr：≤10% Sr
Repeat Accuracy：5%
Sensitivity adjustment：Trimmer
Switching frequency：250Hz
Operating Voltage：10-30Vdc
No-Load supply current：≤30mA
Load current：≤100mA
Leakage current：≤10μA
Output voltage drop：2V max. IL =100 mA
Max ripple content：10%
LED indicators：Yellow (Lon) or output status Lo/Do
Time delay before availability：≤200ms
Short-circuit protection：Short circuit (autoreset), Overvoltage
Reverse Polarity Protection：Polarity inversal, Inpulsive voltage
Emission：Infrared (880 nm)
Interference to external light：3000lux (incandescent lamp), 10000lux (sunlight)
Dimensions：M18 x 1/L=67,5mm
Weight：130g
Housing Material：Nickel plated brass
Connections：2m PVC cable
Active Head Material：PC
Tightening torque：25Nm
Operating temperature：- 25°C…+ 70° C (Without freeze)
Degree of protection：IP67
