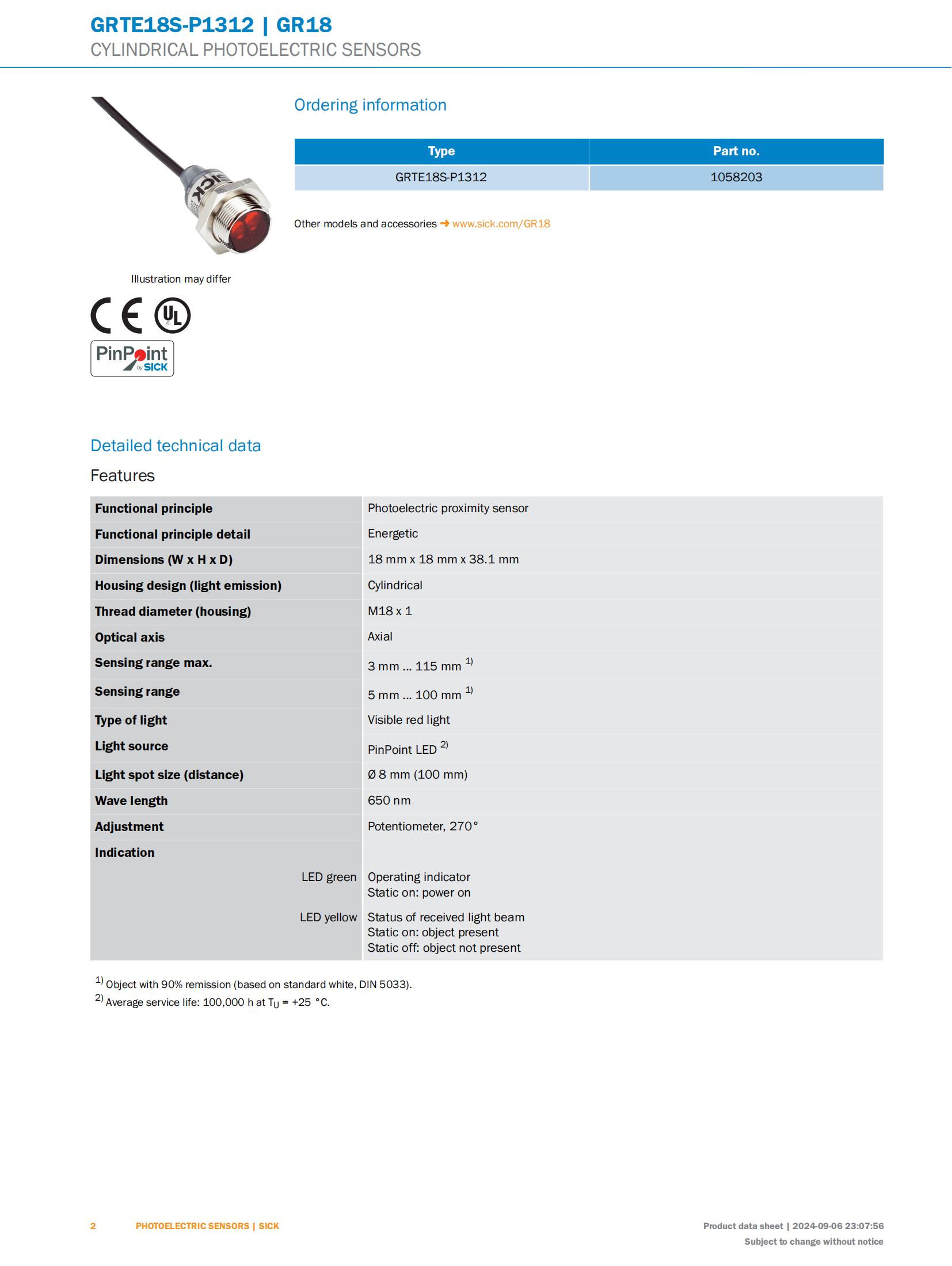

Features：Functional principle：Photoelectric proximity sensor
Functional principle detail：Energetic

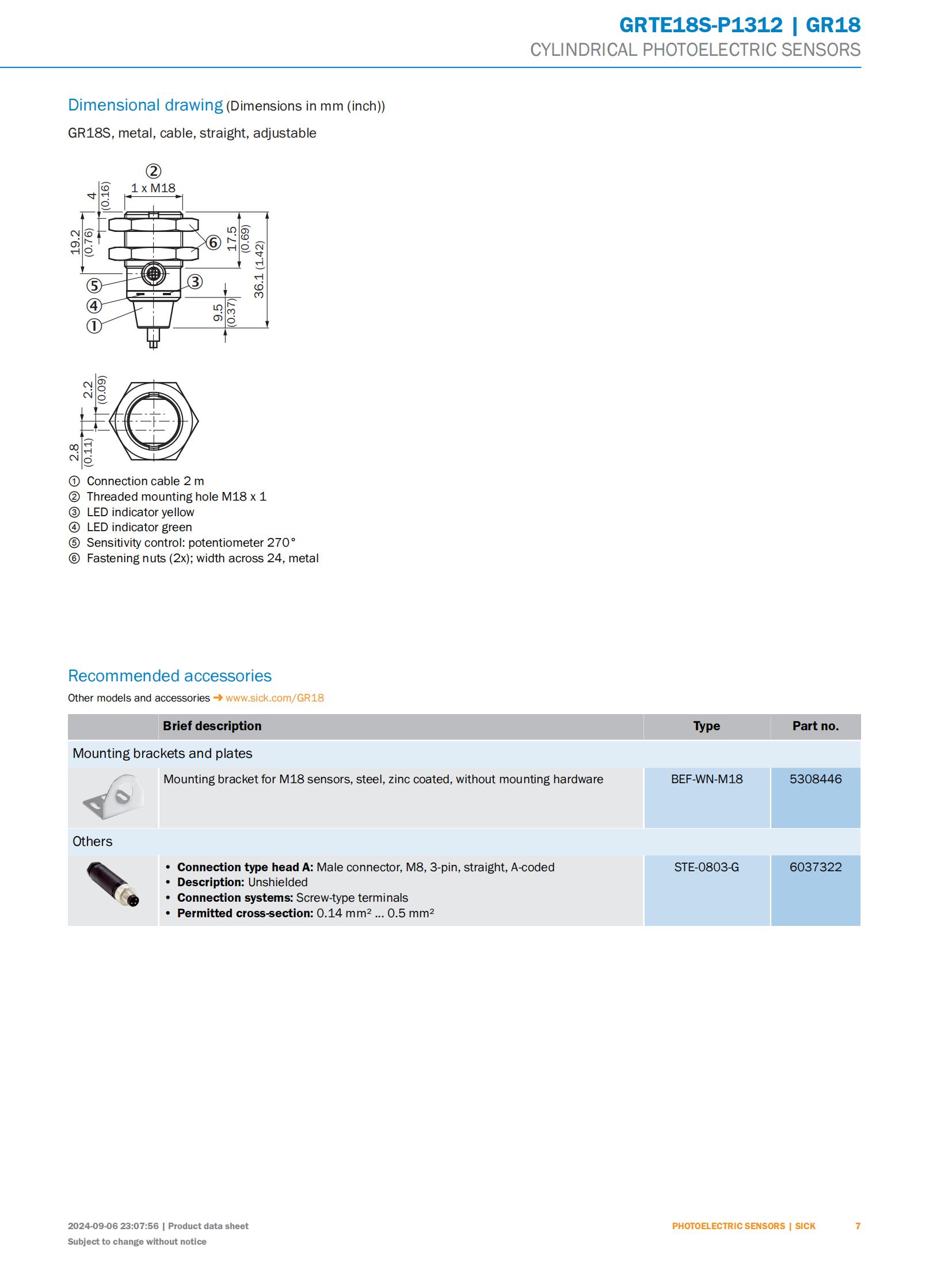

Dimensions (W x H x D)：18 mm x 18 mm x 38.1 mm
Housing design (light emission)：Cylindrical
Thread diameter (housing)：M18 x 1
Optical axis：Axial

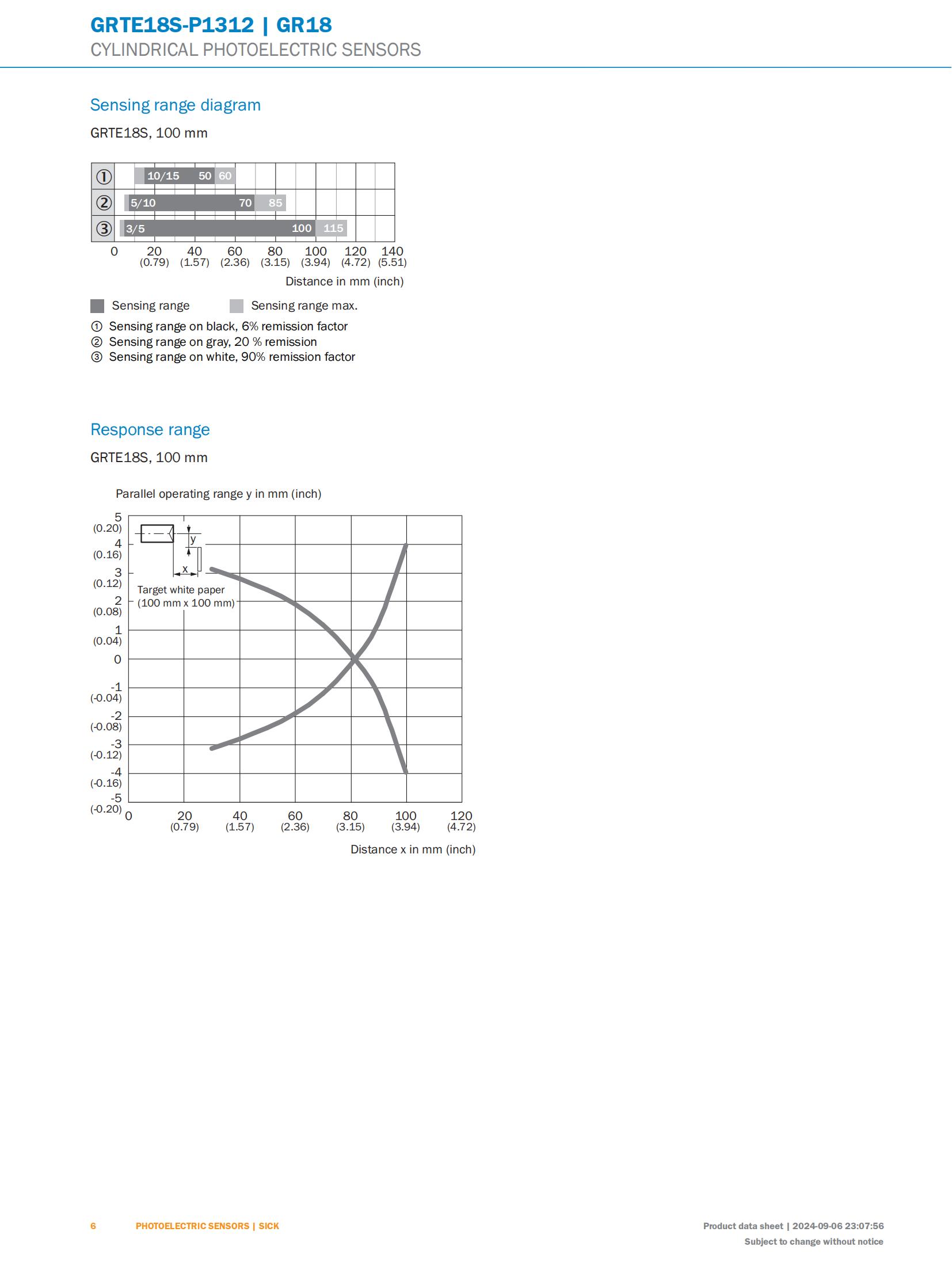

Sensing range max.：3 mm ... 115 mm 1)
Sensing range：5 mm ... 100 mm 1)
Type of light：Visible red light
Light source：PinPoint LED 2)
Light spot size (distance)：Ø 8 mm (100 mm)
Wave length：650 nm

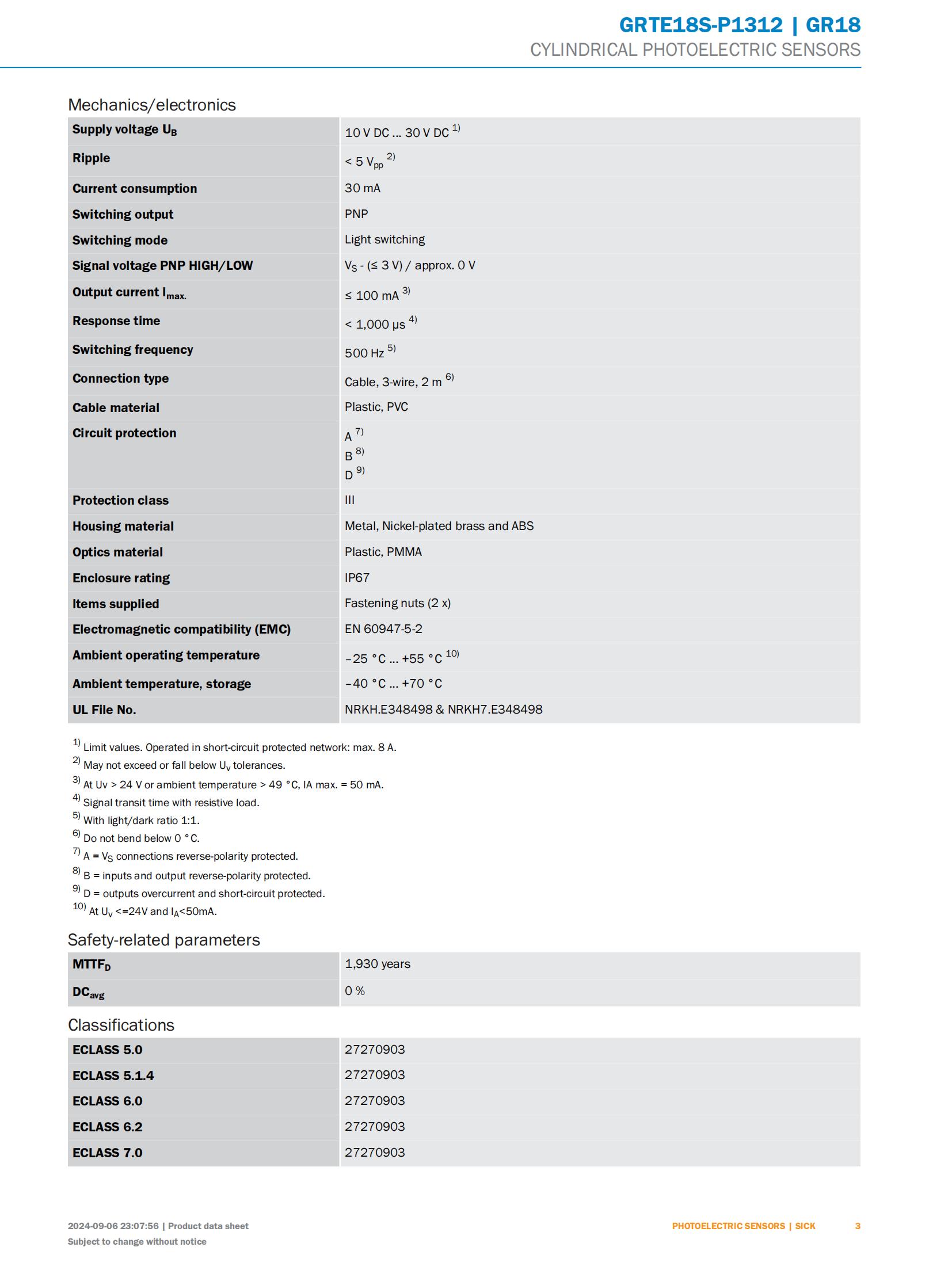

Supply voltage UB：10 V DC ... 30 V DC 1)
Ripple：< 5 Vpp 2)
Current consumption：30 mA

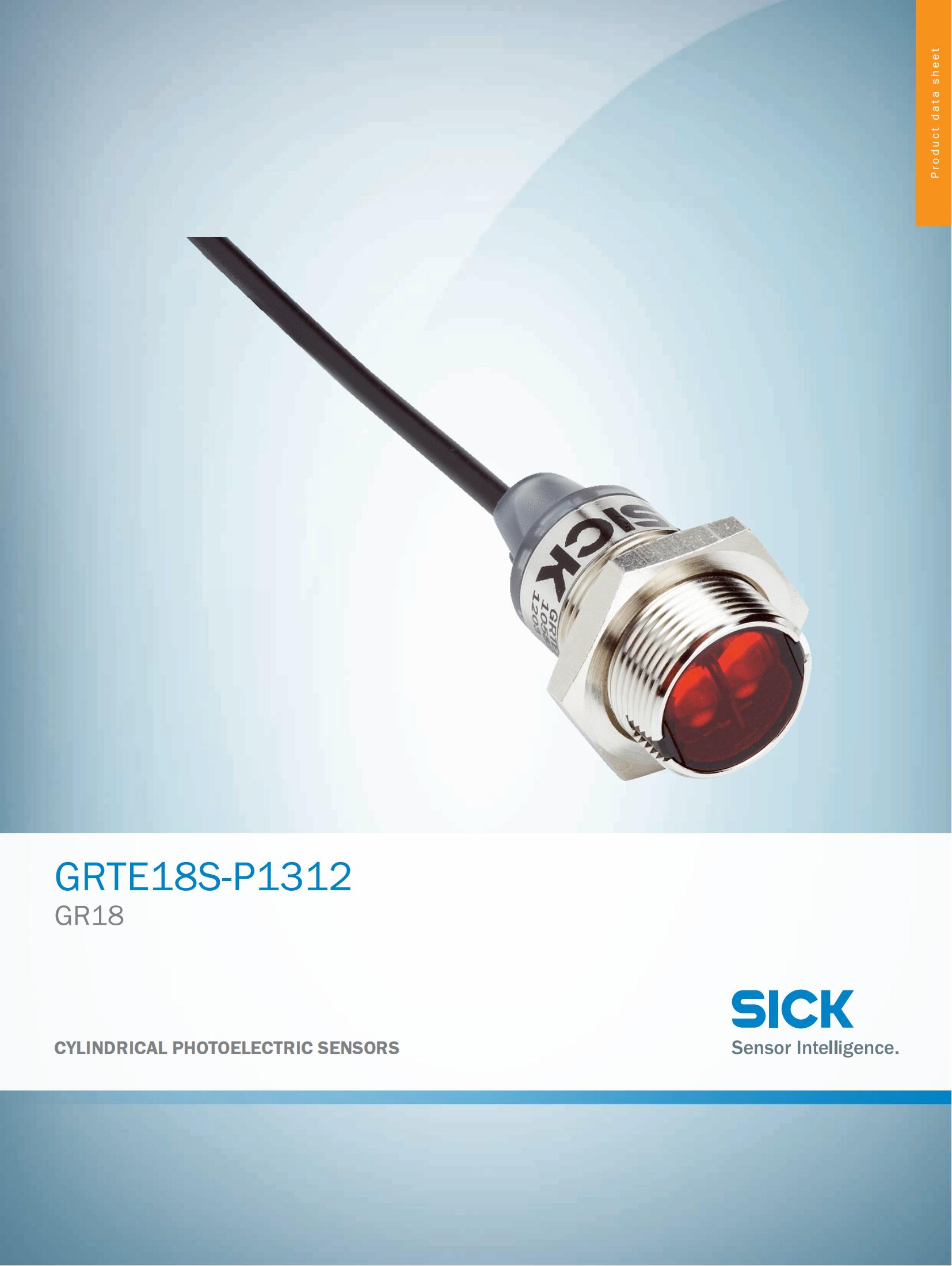

Photoelectric sensorsGR18Reliable cylindrical photoelectric sensors with a wide range of application possibilities
Cylindrical photoelectric sensors from the GR18 family are characterized by their universal application possibilities, reliable object detection and a very good price-performance ratio. The sensors have a cylindrical M18 housing available either in plastic or metal. The cylindrical photoelectric sensors are also available in different housing shapes and therefore offer a high level flexibility for mounting and application options. The PinPoint LED and intelligent electronics ensure high availability of the product family. It can be used in many applications. For instance, the rugged variant in the stainless steel housing can also be used in applications where it comes into contact with chemicals and cleaning agents.
Similar Models:
GRTE18-N2442 1064243 GRTE18-N2442V 1085932 GRTE18-N2447 1067973 GRTE18S-N2442V 1085817 GRTE18S-N2442VS16 1102422 GRTE18-N1142 1066547 GRTE18-N1142V 1085933 GRTE18-N1147 1066544 GRTE18S-N1142 1069580 GRTE18S-N1142V 1085861 GRTE18S-N1147 1062024 GRTE18-P2442 1066549 GRTE18-P2442V 1085688 GRTE18-P2447 1066546 GRTE18S-P2442 1069579 GRTE18S-P2442V 1085679 GRTE18S-P2447 1069073 GRTE18S-P2449 1069074 GRTE18-P1142 1066548 GRTE18-P1142V 1085689 GRTE18-P1147 1066545 GRTE18S-P1142V 1085818 GRTE18-E2432 1104188 GRTE18-N2432 1094779 GRTE18-N2437 1094782 GRTE18S-N2432 1094791 RTE18S-N2437 1094785 GRTE18S-N243Z 1094783 GRTE18-E1132 1094774 GRTE18-N1132 1094756 GRTE18-N1137 GRTE18S-E1137 1094749 GRTE18S-N1132 1094784 GRTE18S-N1137 1094578 GRTE18S-N113Z 1094789 GRTE18S-E1232 1097488
