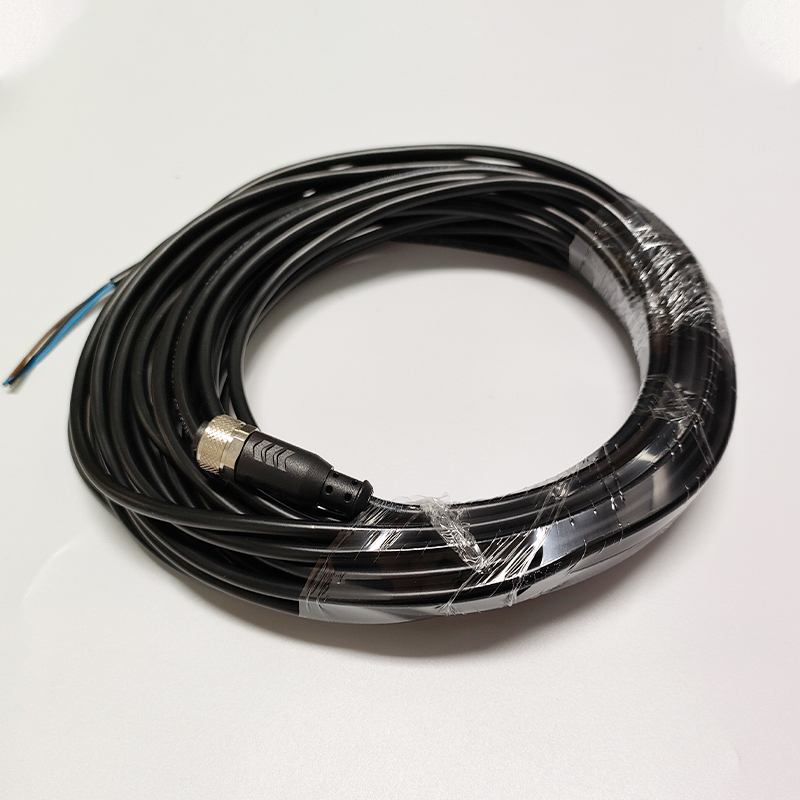

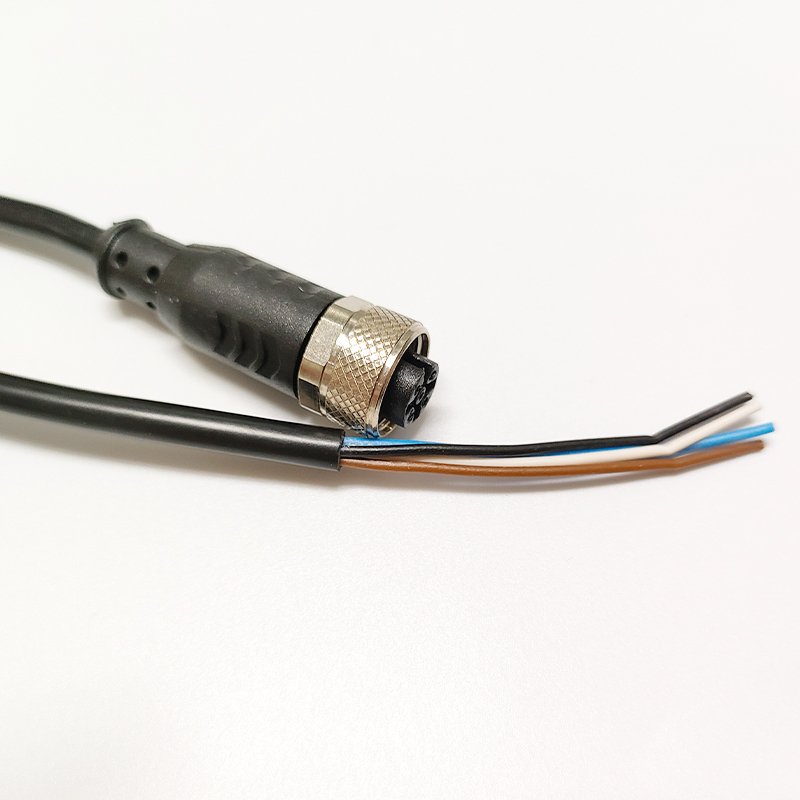

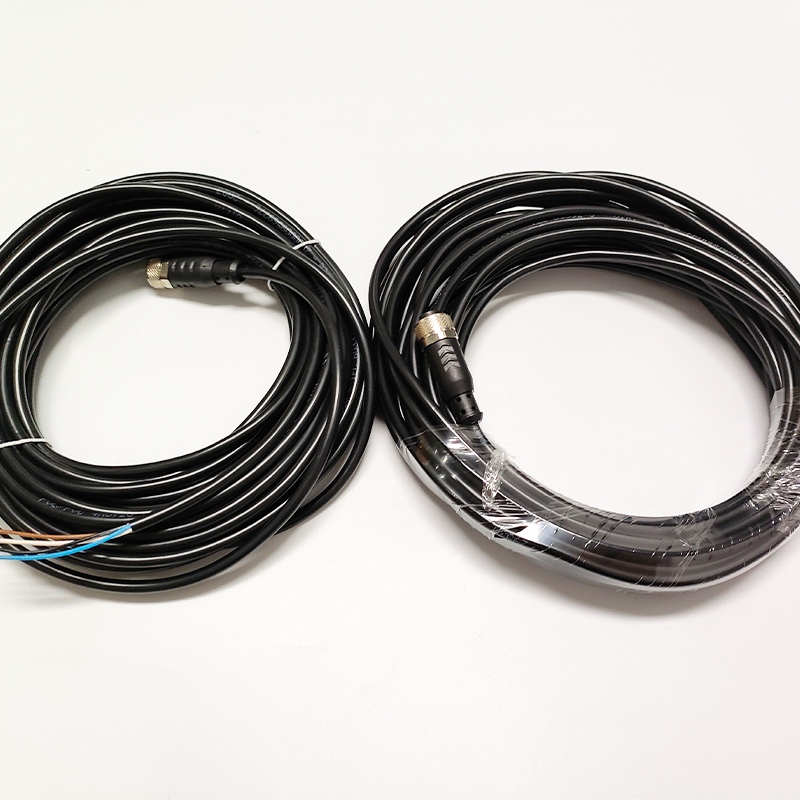

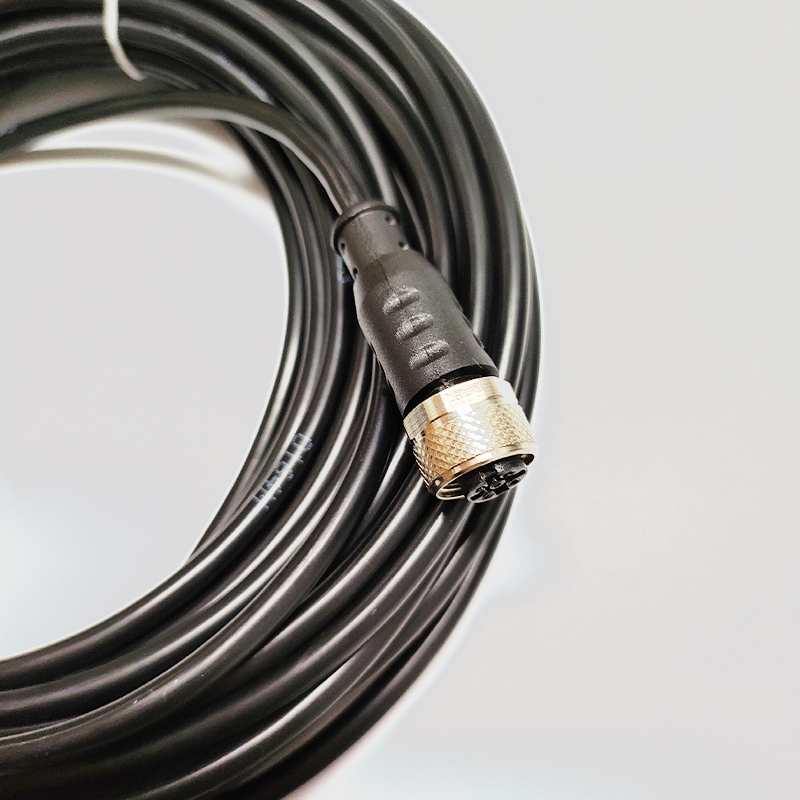

CD12M/0B-100A1 MICRO DETECTORS Connector Female M12 Axial 4 poles cable PVC 10m
Description:Connector Female M12 Axial 4 poles cable PVC 10m
CD12M/0B-100A1 Connector Female M12 Axial 4 poles cable PVC 10m
Nominal current：Max. 4 A
Wires：4
Rated impulse voltage：2,5 kV
Nominal voltage：Max. 250 V ac/dc
Connections：Pin 1: brown Pin 2: white Pin 3: bluePin 4: black
Tightening torque：0,6 Nm
Operating temperature：Plug : -25°C … +85°CFixed installation : -30°C … +80°CFlexible installation: -5°C … +80°C
Plug：M12
Outer diameter：Ø 5 mm ± 5%
Head type：Axial
Gasket material：PVC (CFC, cadmium, silicon, lead free)Flame retardant according to UL1581VW1/CSA FT1, self-extinguishing
Wire isolation：PVC (CFC, cadmium, silicon, lead free)
Bending radius：Wire for fixed installation: 5 x dWire for flexible installation: 10 x d
Conductors section：0,34 mm2 (19 x 0,15 mm2)
