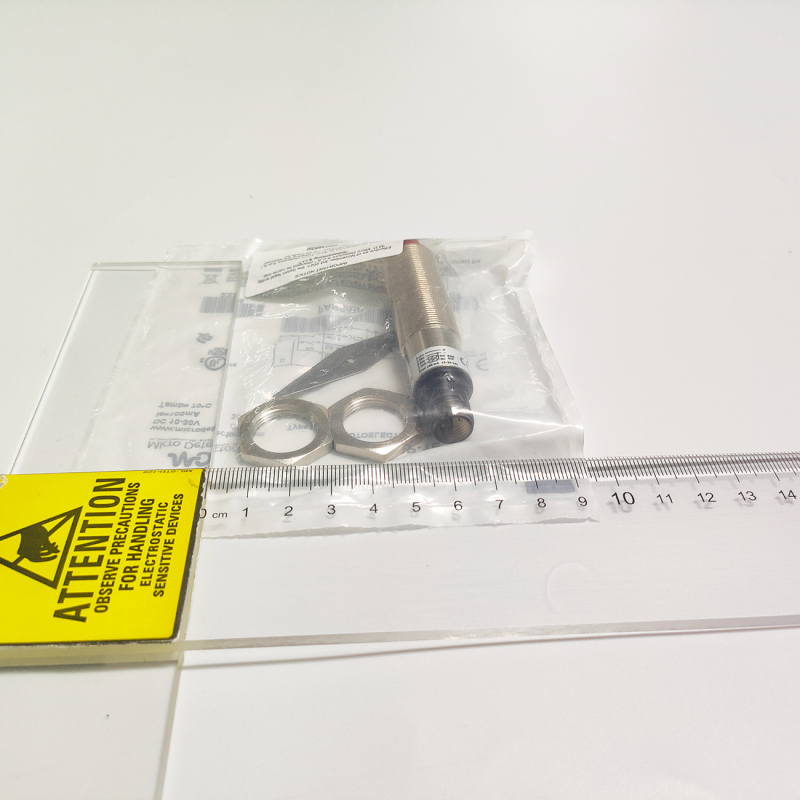

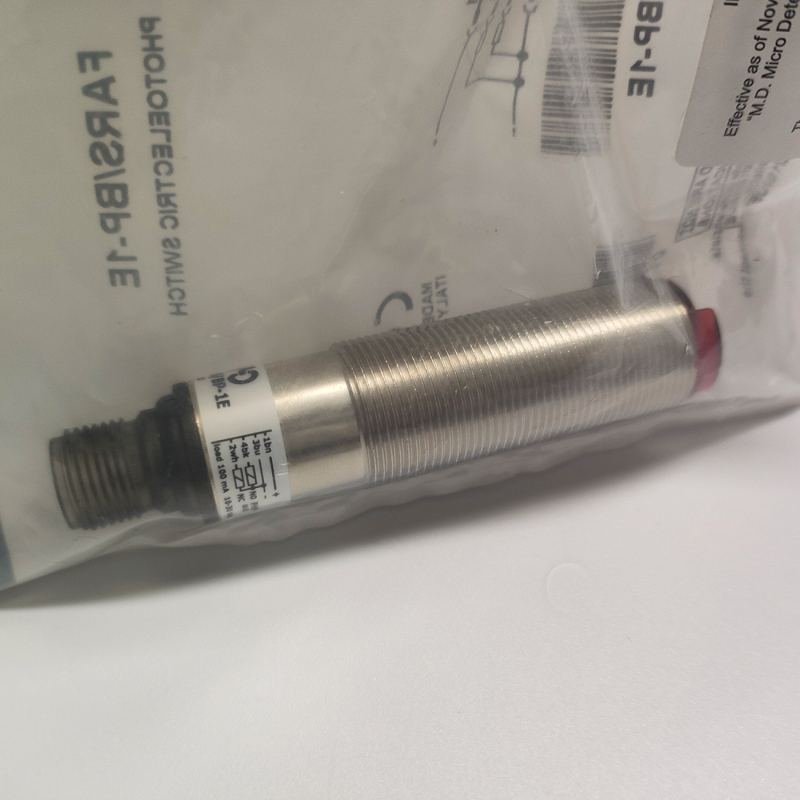

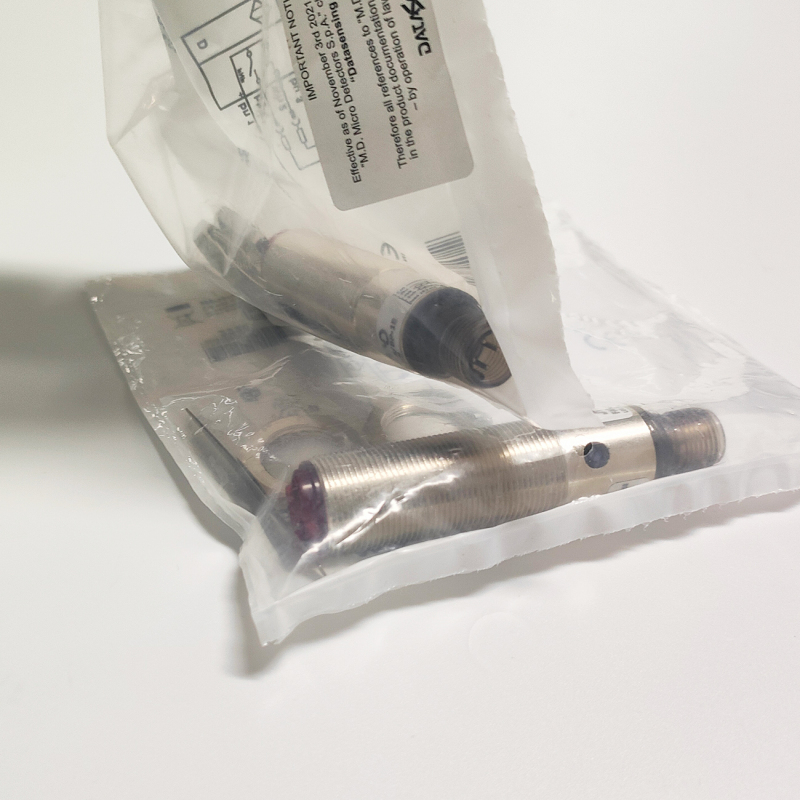

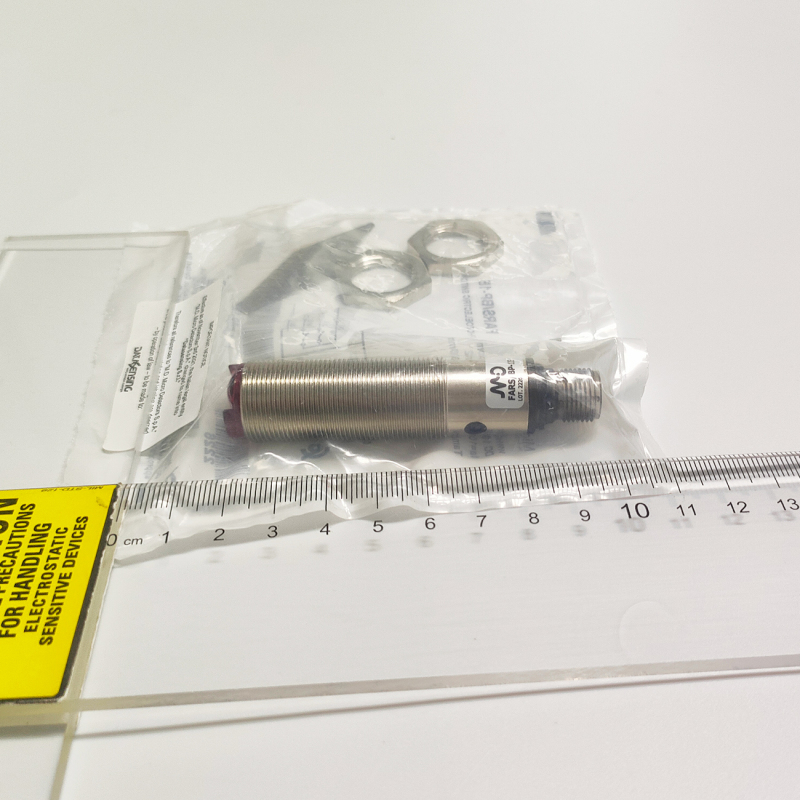

FARS/BP-1E MICRO DETECTORS Photoelectric sensor Axial BGS 30-130 mm, adjustment PNP NO+NC metallic plug M12
Description:Photoelectric sensor Axial BGS 30-130 mm, adjustment PNP NO+NC metallic plug M12
FARS/BP-1E Photoelectric sensor Axial BGS 30-130 mm adj. PNP NO+NC metal. conn. M12

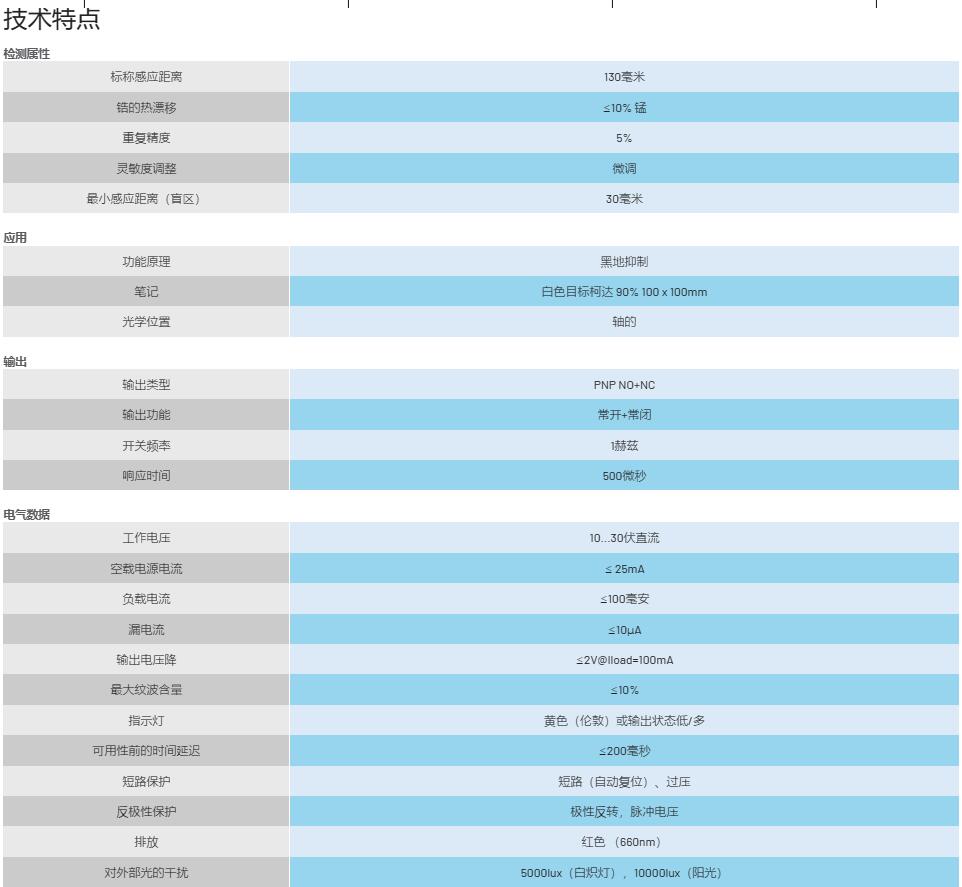

Nominal sensing distance：30..130mm with white target 100 x 100mm
Thermal drift of Sr：≤10% Sr, ≤3% Sr @ Sd > 60mm, < 110 mm
Repeat Accuracy：5%
Sensitivity adjustment：Trimmer
Operating Voltage：10-30Vdc
No-Load supply current：≤25mA
Load current：≤100mA
Leakage current：≤10μA
Output voltage drop：2V max. IL =100 mA
Max ripple content：10%
LED indicators：Yellow (output state)
Time delay before availability：≤200ms
Short-circuit protection：Short circuit (autoreset)
Emission：Red (660 nm)
Interference to external light：5000lux (incandescent lamp), 10000lux (sunlight)

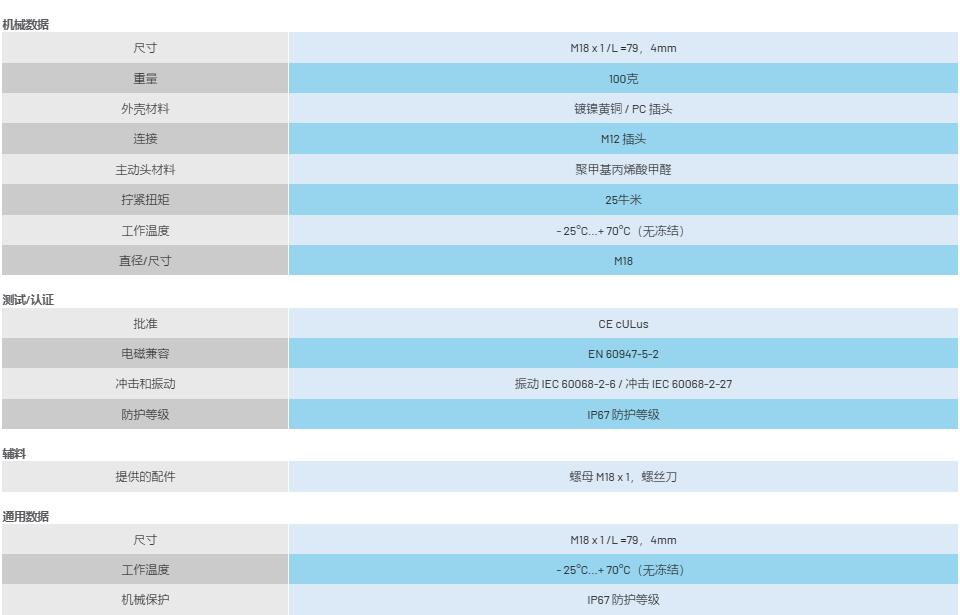

Dimensions：M18 x 1 /L =79,4mm
Weight：100g
Housing Material：Nichel plated brass
Connections：M12 4pin Plug
Active Head Material：PMMA
Tightening torque：25Nm
Operating temperature：- 25°C…+ 70° C (Without freeze)
Degree of protection：IP67
Similar Models:FAID/BN-0AAN FAID/BP-0A84 FAID/BP-0AAN FAID/BP-0ADA FAID/BP-0EAN FAID/BP-1AAN FAID/BP-2A84 FAID/BP-2EAN FAIH/00-0A84 FAIH/00-0AAN FAIH/00-0ADA FAIH/00-0EAN FAIH/00-1AAN FAIH/00-2A84 FAIH/00-2EAN FAIM/BP-0AAN FARS/BN-1E FARS/BN-1E7712 FARS/BP-0A FARS/BP-0AAN FARS/BP-0E FARS/BP-0EAN FARS/BP-1A FARS/BP-1A86AN FARS/BP-1E FARW/BN-0A FARS/BP-1E7712 FARW/BN-0E FARW/BN-1A FARW/BN-1E FARW/BP-0A FARW/BP-0AAN FARW/BP-1A FARW/BP-0E FARW/BP-1E FAIZ/BN-1E FAIZ/BN-3E FAIZ/BP-0EAN FAIZ/BP-1A FAIZ/BP-1E FARN/BP-0AAN FARN/BP-0EAN FARN/BP-1EAN FARN/BP-2AAN FAIZ/BN-1A FAIZ/BN-3A FAIZ/BP-3A FAIZ/BP-3E FAR2/BN-0ADA FAR2/BP-0A86 FAR2/BP-0EAN FAR2/BP-0EDA FARP/LP-2AVEAK FARS/BN-0A FARS/BN-0E FARS/BN-1A FARS/BN-1AAN FAR3/BP-0EAN FARL/BP-0EAN FARN/BN-0AAN
