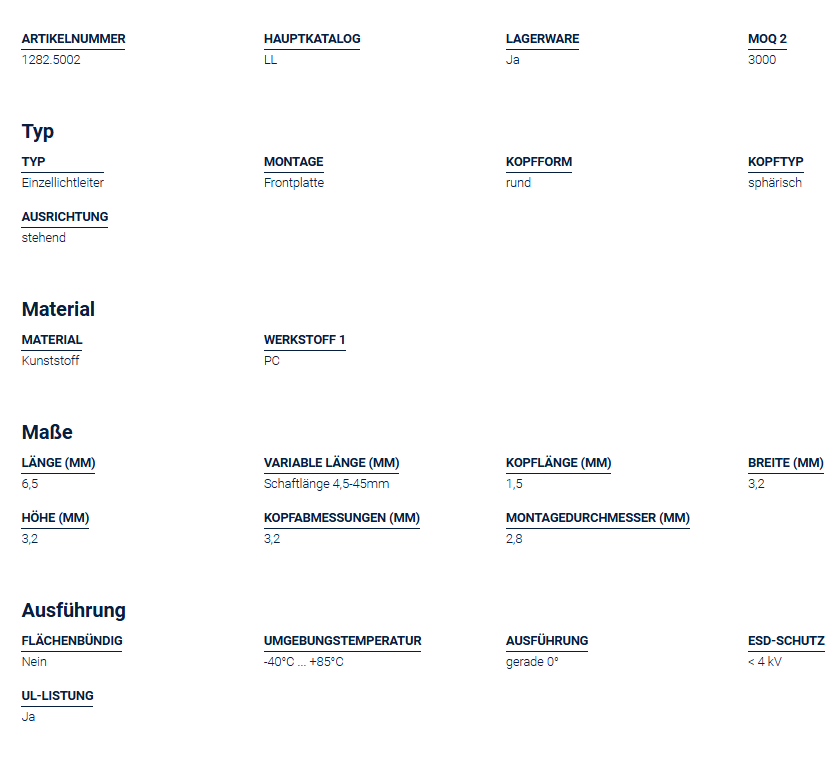

| Brand | MENTOR |
| Date Code | 23+ |
| Packing | Bag |

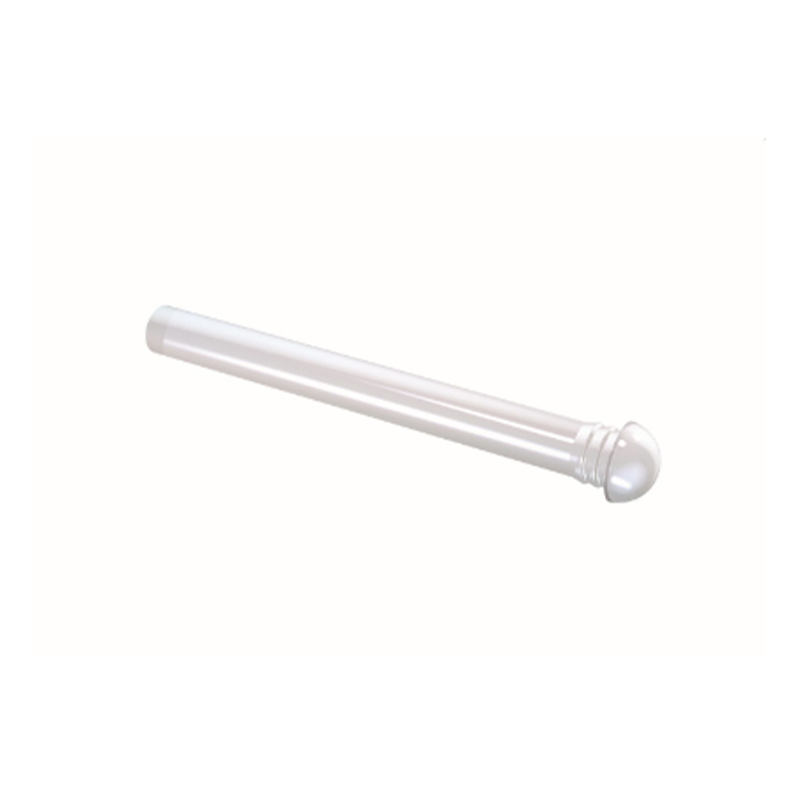

| Package | Single light guide |
| Minimum Packing | 1000pcs |

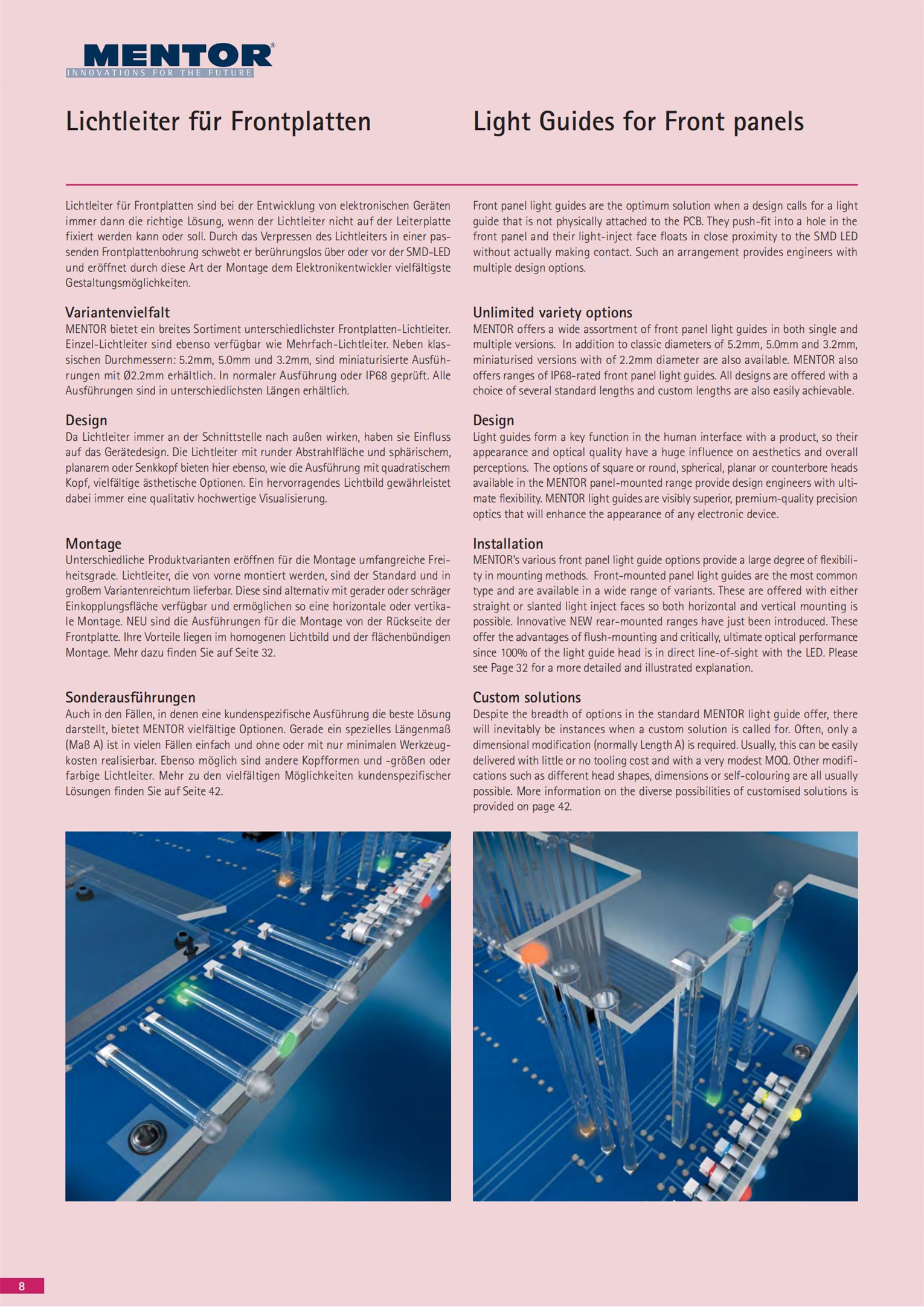

Features：
Efficient precision optics
Lichtleiter_Visualisierung
Quality light guides from MENTOR are efficient precision optical products. As a specialist for opto-electronics, sophisticated lighting modules and innovative light control systems, we develop and produce light guides of the highest quality. Our lighting specialists set standards with their expertise and state-of-the-art development and simulation procedures. Easy-to-mount, solutions without blooming effect, with very high luminous efficiency and perfectly homogeneous lighting are made from long-life, high-performance plastics on state-of-the art injection moulding machines.
Extensive product range
ll_quadratische_lichtleiter
MENTOR offers you an extensive range of light guides with a large number of versions for very varied applications. It comprises front panel-mountable solutions, as well as vertical or horizontal circuit board-mountable versions, single or multiple light guides, bar graph displays, different head shapes, a variety of sizes – including also miniaturised versions and flexible light guide systems.
A variety of options
ll_variantenvielfalt

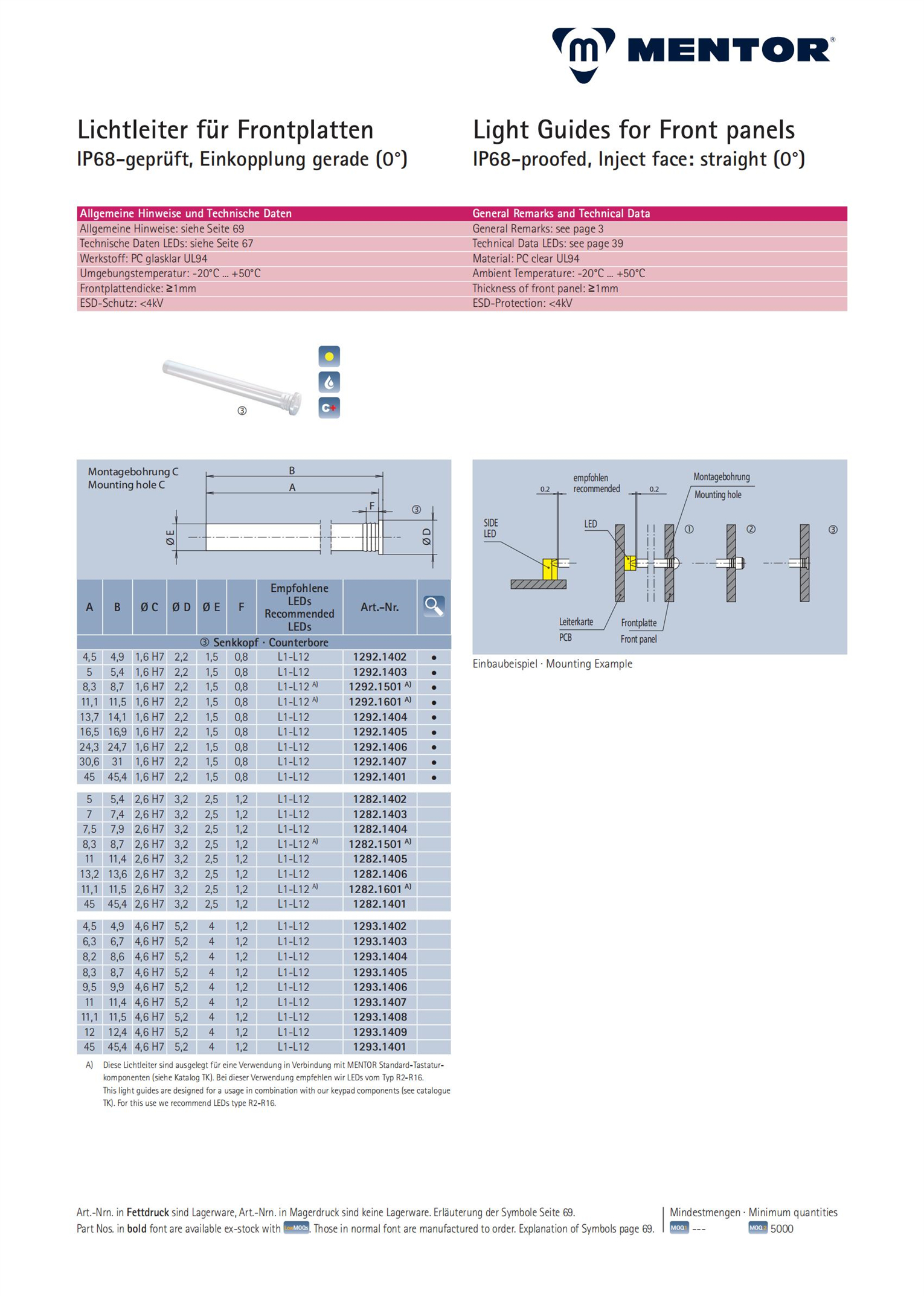

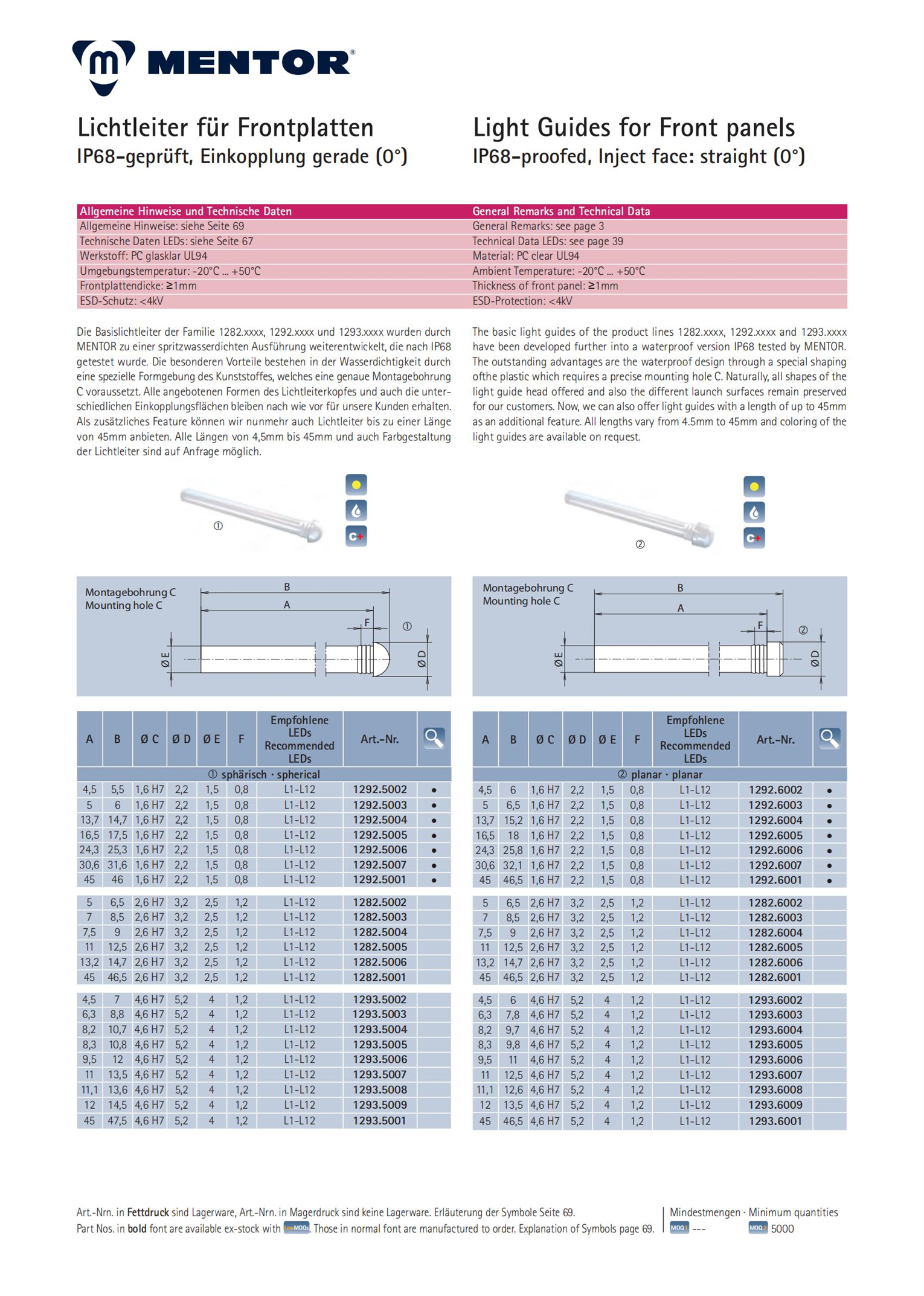

MENTOR offers a wide range of very varied front panel light guides. Single light guides and multiple light guides are available. As well as classic diameters, 5.2 or 5.0 mm and 3.2 mm, miniaturised versions with Ø2.2 mm can be purchased. In the normal version or IP68 rated. All versions are available in a wide variety of different lengths.
Assembly
ll_montage
Different product options offer extensive degrees of freedom to assemble. Light guides for front assembly are standard and deliverable in a great variety of versions. They are available as options with straight or diagonal inject face surface and thus enable horizontal or vertical assembly. The benefits of the versions for assembly from the rear of the front panel are the homogeneous light pattern and the flush-fitting installation.
Design
ll_design
Since light guides always work outwards from the interface, they influence the design of the devices. Here the light guides with round beam surfaces and spherical, planar or counterbore head offer many aesthetically pleasing options, as does the version with a square head. An excellent light pattern always ensures high-quality visualisation here.
Customised solutions are our strong point
ll_kundenspezifisch
The MENTOR range of high-quality standard light guides offers a wide spectrum of very varied solutions. It comprises front panel-mountable solutions, as well as vertical or horizontal circuit board-mountable versions, individual and multiple light guides, bar graph displays, different head shapes, a variety of sizes, including also miniaturised versions and flexible light guide systems.
Despite this abundance of standard products, in certain situations, the customised solution of a light guide represents the best solution. For example, this is the case if a very individual radiation effect is required, or if a particularly large amount of time and effort is required to adjust the circuit board or front of the devices to a standard light guide.
We know from many years’ experience that individual adjustment of the length is frequently required to adapt a standard light guide to individual requirements. An intelligent tool strategy enables us to implement these solutions for our customers at no or minimal tooling costs, and with low minimum order quantities.
We have designated light guides with which a customised length can be implemented within the stated length variations (Size A) at no or minimum tooling costs, with the symbol C+. The plus here stands for the particular cost-effectiveness of these solutions. We designate solutions where this possibility does not exist but which have a great variety of tool-dependent special versions, with the symbol C.
