| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 2000pcs |

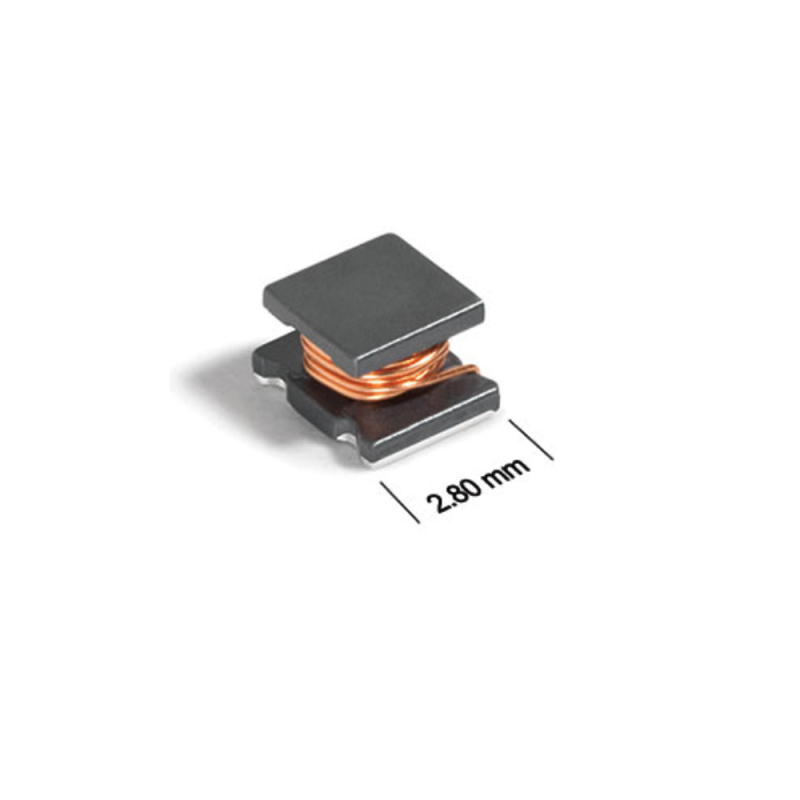

Power Inductors - SMD 6.8uH Unshld 20% 1.1A 270mOhms
Features：
Coilcraft ME3220 Series unshielded surface-mount power inductors combine current ratings up to 2.8 Amps with low DC resistance on an industry-standard 3225 footprint (3.2 x 2.5 mm).
Cost-effective design
Industry-standard footprint
Open magnetic path
Low height - 2.0 mm
|
Product Attribute |
Attribute Value |
|
Package / Case: |
2.5 mm x 2 mm x 3.2 mm |
|
Shielding: |
Unshielded |
|
Inductance: |
6.8 uH |
|
Tolerance: |
20 % |
|
Maximum DC Current: |
1.1 A |
|
Maximum DC Resistance: |
270 mOhms |
|
Saturation Current: |
1.2 A |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 85℃ |
|
Self Resonant Frequency: |
46.2 MHz |
|
Termination: |
Standard |
|
Length: |
3.2 mm |
|
Width: |
2.5 mm |
|
Height: |
2 mm |
|
Core Material: |
Ferrite |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
100 kHz |
|
Unit Weight: |
48 mg |
Similar Models：
ME3220-102MLC ME3220-152MLC ME3220-222MLC ME3220-332MLC ME3220-472MLC ME3220-562MLC ME3220-682MLC ME3220-822MLC ME3220-103KLC ME3220-123KLC ME3220-153KLC ME3220-183KLC ME3220-223KLC ME3220-273KLC ME3220-333KLC ME3220-393KLC ME3220-473KLC ME3220-563KLC ME3220-683KLC ME3220-823KLC ME3220-104KLC
