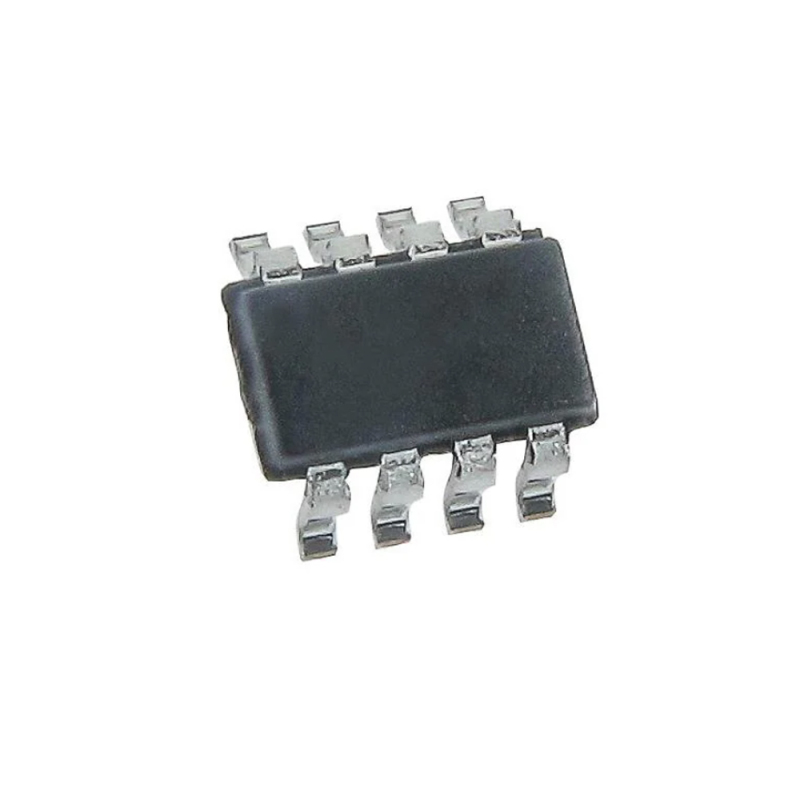

In Stock ! ADI Operational Amplifiers - Op Amps MAX9916EKA+T

Operational Amplifiers - Op Amps 1MHz, 20 A, Rail-to-Rail I/O Op Amps wit

Features：

• High 1MHz GBW
• Ultra-Low 20µA Supply Current
• Single 1.8V to 5.5V Supply Voltage Range
• Ultra-Low 1pA Input Bias Current
• Rail-to-Rail Input and Output Voltage Ranges
• Low ±200µV Input Offset Voltage
• Low 0.001µA Shutdown Current
• High-Impedance Output During Shutdown (MAX9915/MAX9917)
• Unity-Gain Stable
• Available in Tiny SC70, SOT23, and µMAX Packages

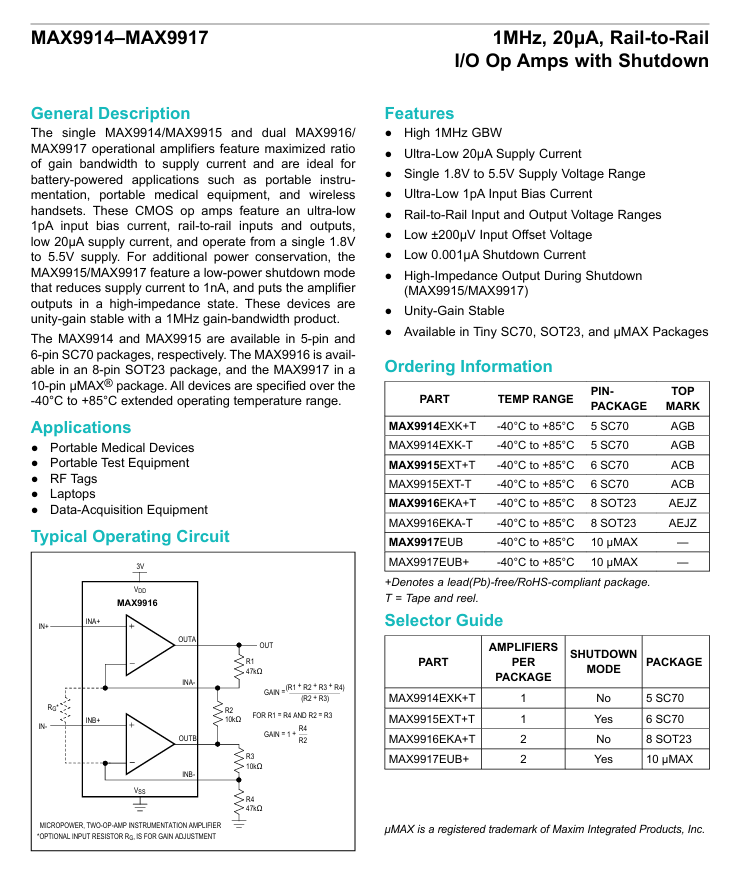

The single MAX9914/MAX9915 and dual MAX9916/MAX9917 operational amplifiers feature maximized ratio of gain bandwidth to supply current and are ideal for battery-powered applications such as portable instrumentation, portable medical equipment, and wireless handsets. These CMOS op amps feature an ultra-low 1pA input bias current, rail-to-rail inputs and outputs, low 20µA supply current, and operate from a single 1.8V to 5.5V supply. For additional power conservation, the MAX9915/MAX9917 feature a low-power shutdown mode that reduces supply current to 1nA, and puts the amplifier outputs in a high-impedance state. These devices are unity-gain stable with a 1MHz gain-bandwidth product.

The MAX9914 and MAX9915 are available in 5-pin and 6-pin SC70 packages, respectively. The MAX9916 is available in an 8-pin SOT23 package, and the MAX9917 in a 10-pin µMAX^® package. All devices are specified over the -40°C to +85°C extended operating temperature range.

Applications

• Cellular Handsets
• Cordless Phones
• Data-Acquisition Equipment
• Digital Cameras (DIGICAMs)
• Glucose Meters
• GPS Solutions
• IP Camera
• Laptops
• MP3 and Portable Media Players
• Portable Medical Devices
• Portable Test Equipment
• RF Tags
