| Brand | ADI |
| Date Code | 2425 |
| Packing | Tube |
| Package | PDIP-8 |
| Minimum Packing | 50pcs |
Supervisory Circuits Low-Cost, P Supervisory Circuits
Features：
Supervisory-Function Integration Significantly Improves System Reliability While Reducing Board Space
µMAX Package
Guaranteed Active Low RESET Valid at VCC = 1V
200ms Reset Pulse Width
Debounced TTL/CMOS-Compatible Manual-Reset Input
Active-High Reset Output (MAX707/MAX708/MAX813L)
Precision-Supply Voltage Monitor
4.65V (MAX705/MAX707/MAX813L)
4.40V (MAX706/MAX708)
Voltage Monitor for Power-Fail or Low-Battery Warning

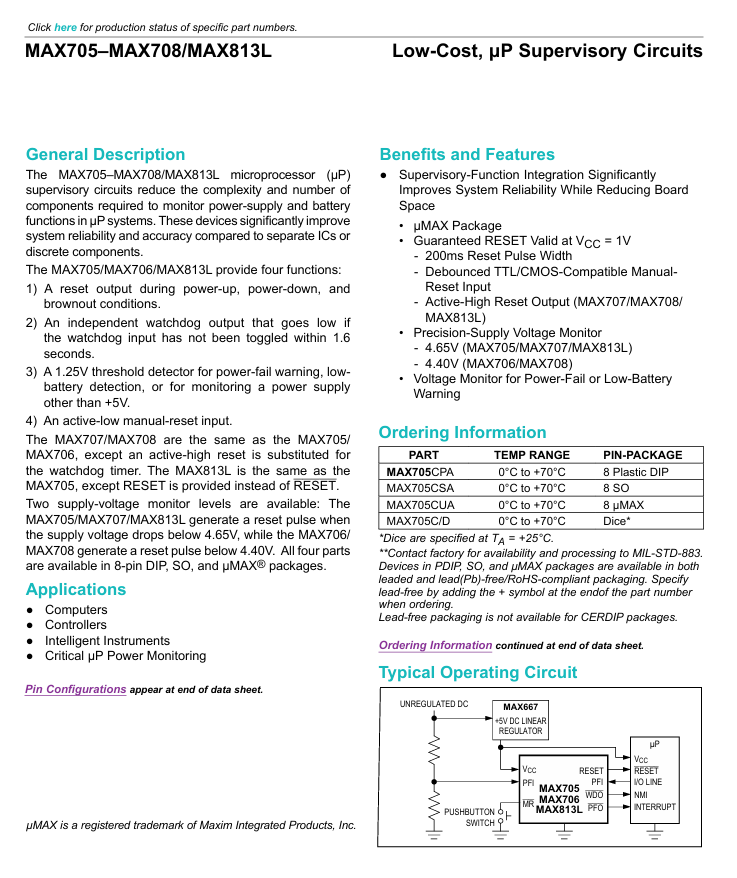

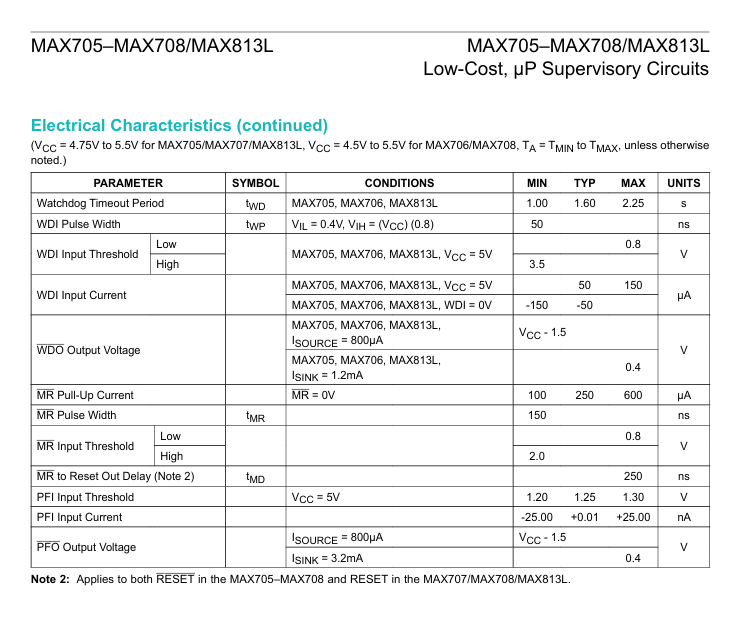

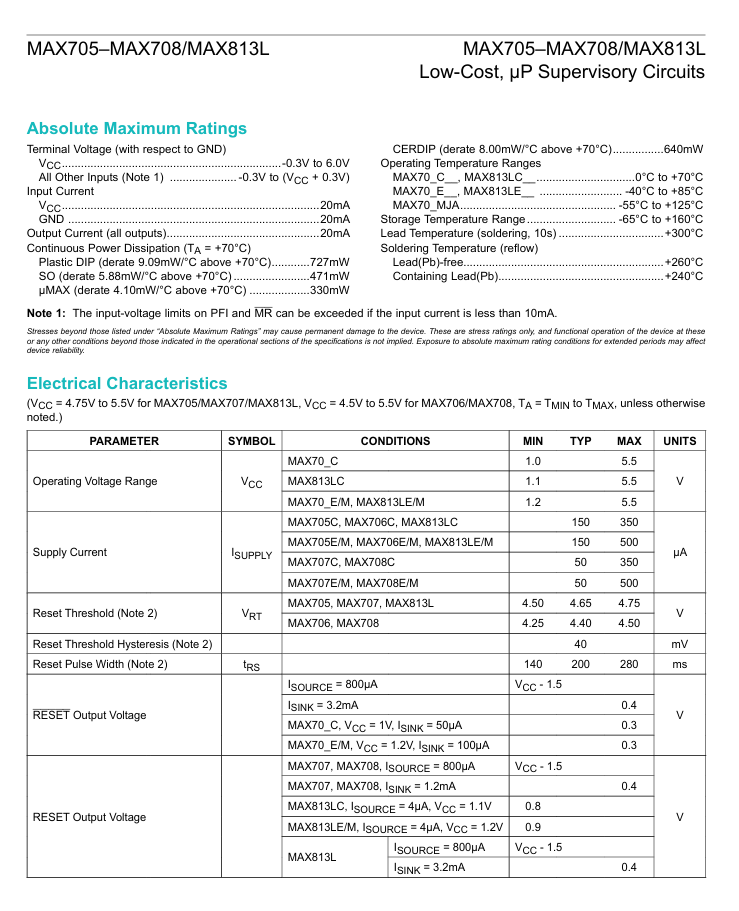

The MAX705–MAX708/MAX813L microprocessor (µP) supervisory circuits reduce the complexity and number of components required to monitor power-supply and battery functions in µP systems. These devices significantly improve system reliability and accuracy compared to separate ICs or discrete components.
The MAX705/MAX706/MAX813L provide four functions:
A reset output during power-up, power-down, and brownout conditions.
An independent watchdog output that goes low if the watchdog input has not been toggled within 1.6 seconds.
A 1.25V threshold detector for power-fail warning, low-battery detection, or for monitoring a power supply other than +5V.
An active-low manual-reset input.
The MAX707/MAX708 are the same as the MAX705/MAX706, except an active-high reset is substituted for the watchdog timer. The MAX813L is the same as the MAX705, except RESET is provided instead of active-low RESET.
Two supply-voltage monitor levels are available: The MAX705/MAX707/MAX813L generate a reset pulse when the supply voltage drops below 4.65V, while the MAX706/MAX708 generate a reset pulse below 4.40V. All four parts are available in 8-pin DIP, SO and µMAX® packages.
Applications
Computers
Controllers
Critical µP Power Monitoring
Intelligent Instruments
