Switching Voltage Regulators 12V, 30mA Flash Memory Programming Suppl
Features：Regulated +12V ±5% Output Voltage
4.5V to 5.5V Supply Voltage Range
Fits in 0.1in²
Guaranteed 30mA Output
No Inductor—Uses Only 4 Capacitors
185µA Quiescent Current
Logic-Controlled 0.5µA Shutdown
8-Pin Narrow SO and DIP Packages

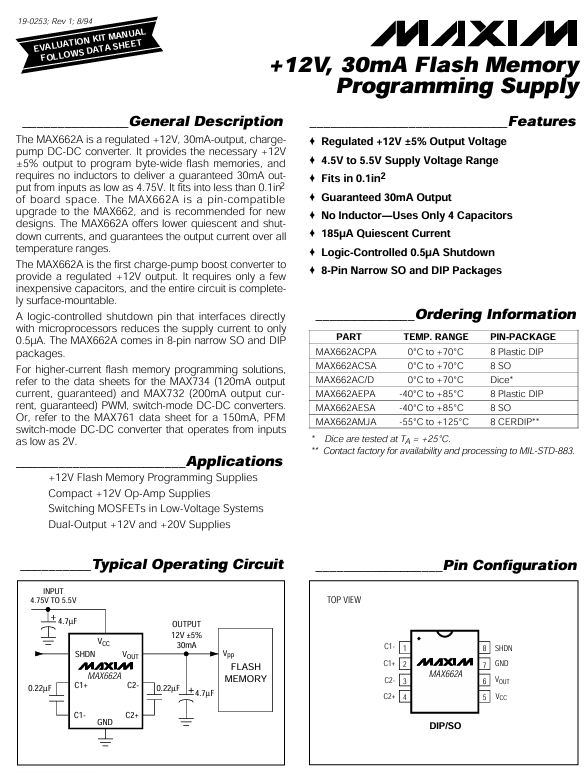

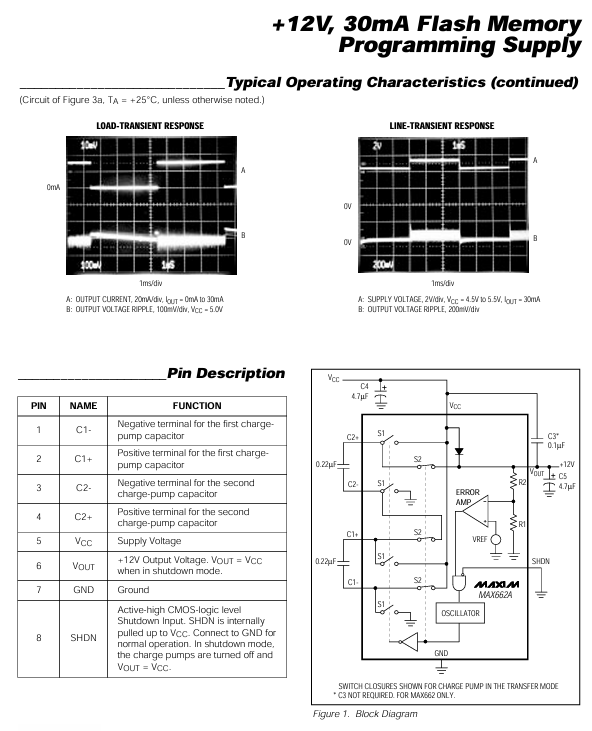

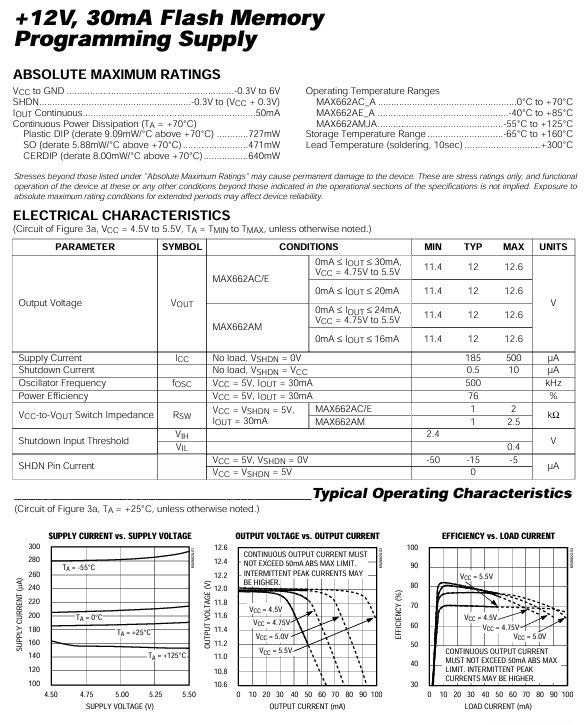

The MAX662A is a regulated +12V, 30mA-output, charge-pump DC-DC converter. It provides the necessary +12V ±5% output to program byte-wide flash memories, and requires no inductors to deliver a guaranteed 30mA output from inputs as low as 4.75V. It fits into less than 0.1in² of board space. The MAX662A is a pin-compatible upgrade to the MAX662, and is recommended for new designs. The MAX662A offers lower quiescent and shut-down currents, and guarantees the output current over all temperature ranges.
The MAX662A is the first charge-pump boost converter to provide a regulated +12V output. It requires only a few inexpensive capacitors, and the entire circuit is completely surface-mountable.
A logic-controlled shutdown pin that interfaces directly with microprocessors reduces the supply current to only 0.5µA. The MAX662A comes in 8-pin narrow SO and DIP packages.
For higher-current flash memory programming solutions, refer to the data sheets for the MAX734 (120mA output current, guaranteed) and MAX732 (200mA output current, guaranteed) PWM, switch-mode DC-DC converters.
Or, refer to the MAX761 data sheet for a 150mA, PFM switch-mode DC-DC converter that operates from inputs as low as 2V.
Applications+12V Flash Memory Programming Supplies
Compact +12V Op-Amp Supplies
Dual-Output +12V and +20V Supplies
Switching MOSFETs in Low-Voltage Systems
