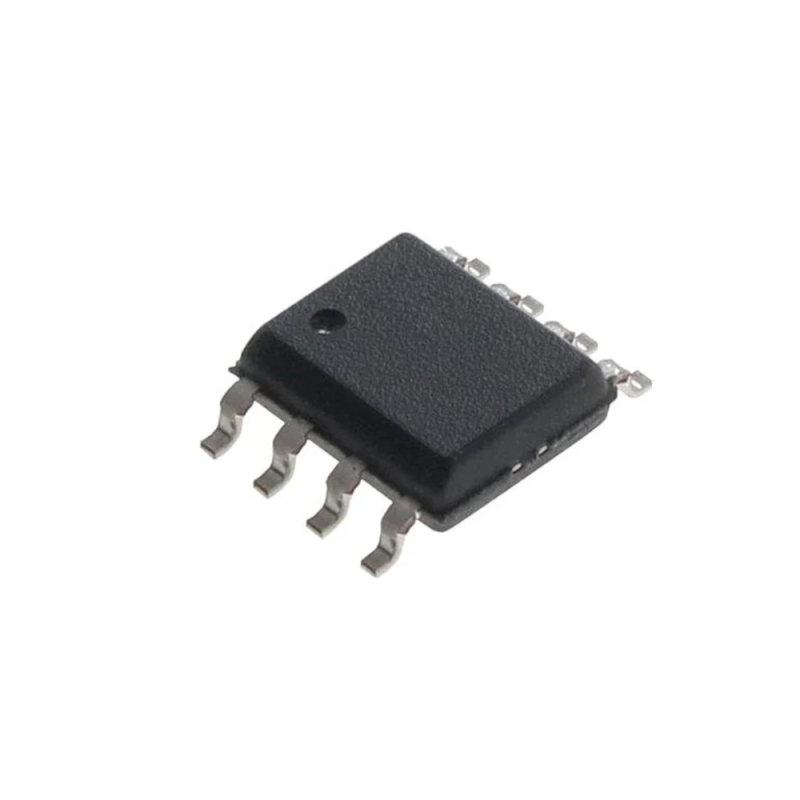

In Stock ! ADI Analog Switch ICs MAX4526ESA+

Name: In Stock ! ADI Analog Switch ICs MAX4526ESA+
Brand: YW SHOP
SKU: In Stock ; Ship In 48 Hours
Price: 9.3 USD
Availability: InStock

Brand：ADI
Date Code：2452/2519
Packing：Tube
Package：SOIC-8
Minimum Packing：100pcs

$9.30

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET $10.00 OFF ON ORDERS OVER $100.00

Add to Favorites

facebook
line
twitter
whatsapp
pinterest
tumblr
linkedin

1/1

Description

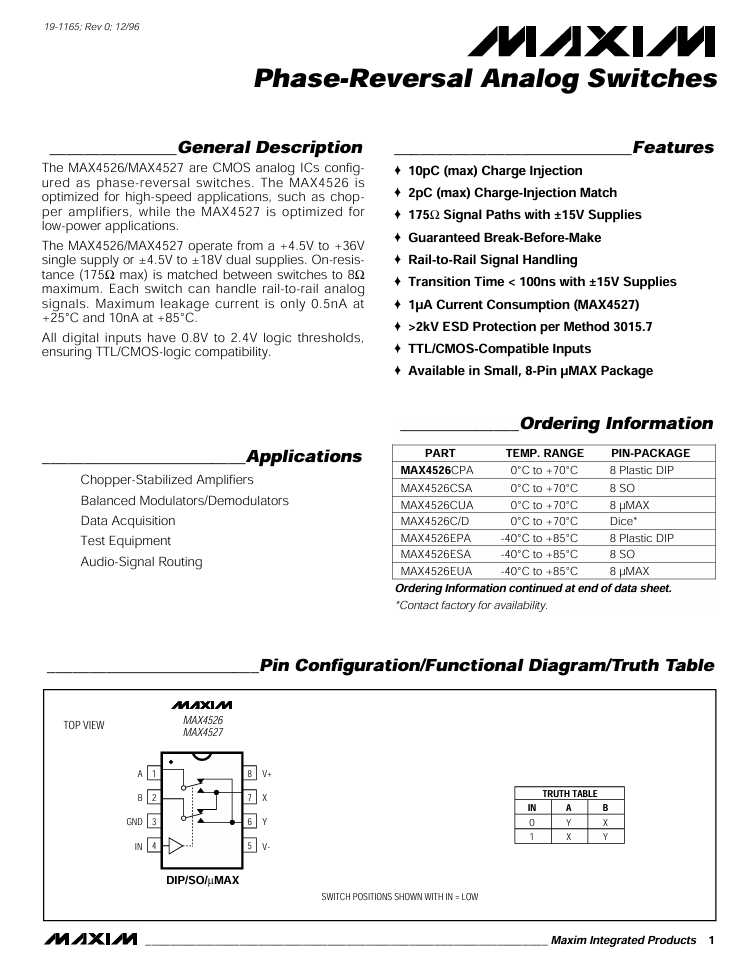

Analog Switch ICs Phase-Reversal Analog Switches

Features：

Product Attribute	Attribute Value
On Resistance - Max:	175 Ohms
Supply Voltage - Min:	4.5 V
Supply Voltage - Max:	36 V
Minimum Dual Supply Voltage:	+/- 4.5 V
Maximum Dual Supply Voltage:	+/- 18 V
On Time - Max:	100 ns
Off Time - Max:	100 ns
Minimum Operating Temperature:	- 40 °C
Maximum Operating Temperature:	+ 85 °C
Height:	1.5 mm (Max)
Length:	5 mm (Max)
Pd - Power Dissipation:	471 mW
Supply Current - Max:	1 mA
Switch Continuous Current:	20 mA
Width:	4 mm (Max)
Unit Weight:	0.019048 oz
