| Brand | ADI |
| Date Code | 2207 |
| Packing | Tube |

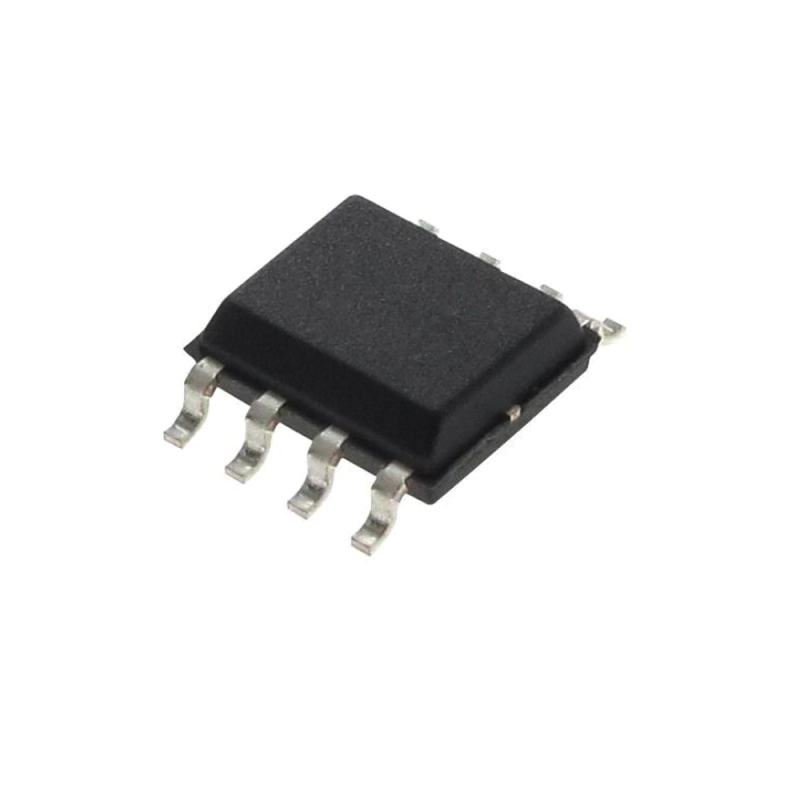

| Package | SOIC-8 |
| Minimum Packing | 100pcs |
RS-485 Interface IC 80V Fault-Protected, Fail-Safe, 1/4-Unit Load, +3.3V RS-485 Transceiver
Features：
±80V Fault Protection
±12kV ESD Protection
+3.3V Operation
Internal Slew-Rate Limiting
250kbps Data Rate
Allows Up to 128 Transceivers on the Bus
-7V to +12V Common-Mode Input Voltage Range
True Fail-Safe Inputs
Hot-Swap Input Structure on DE
Available in 8-Pin SO and PDIP Packages

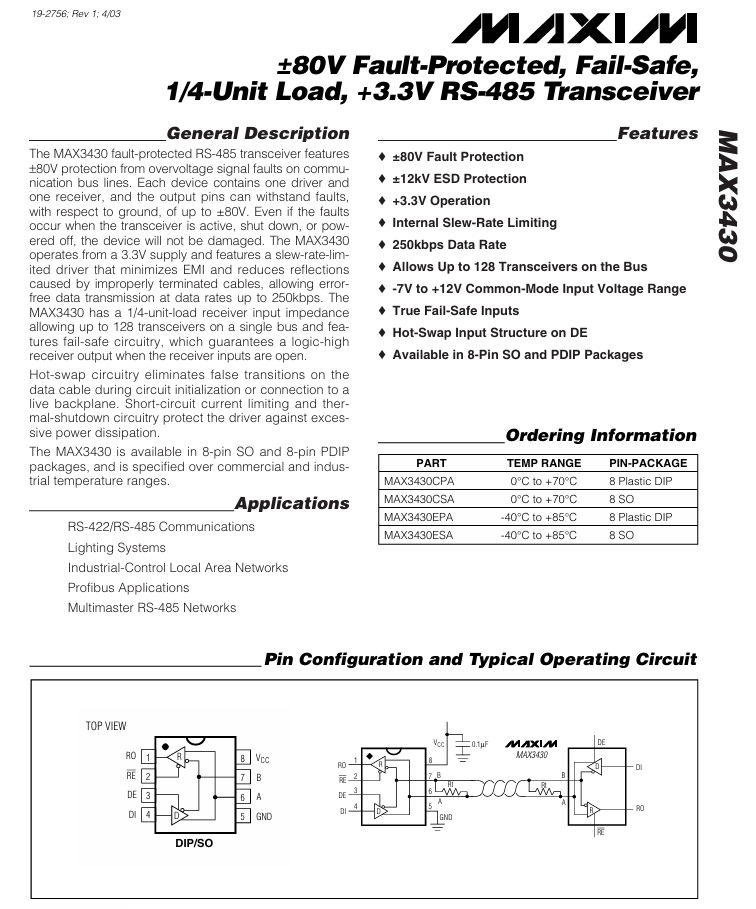

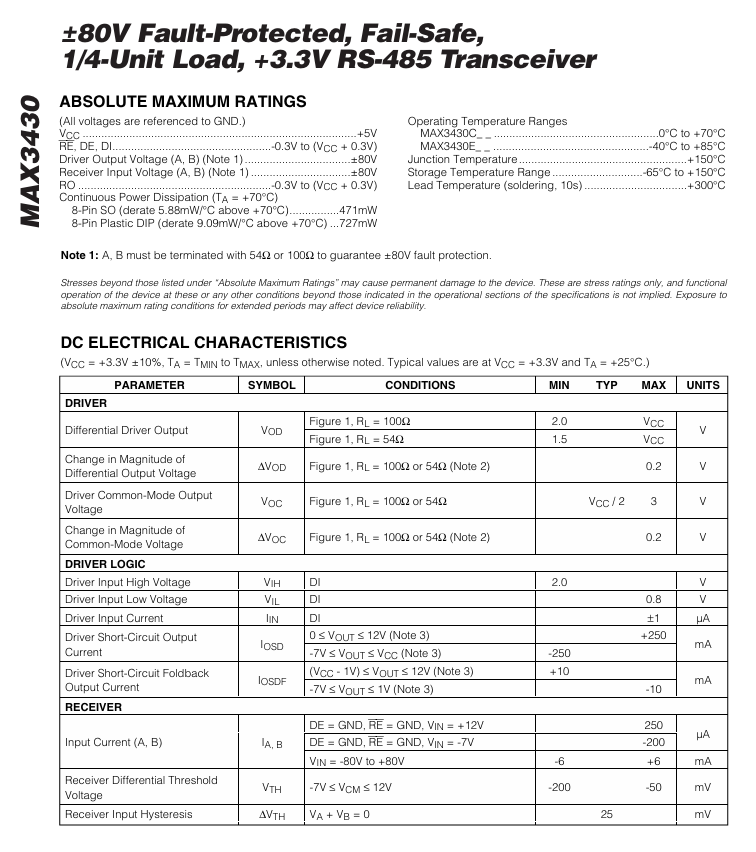

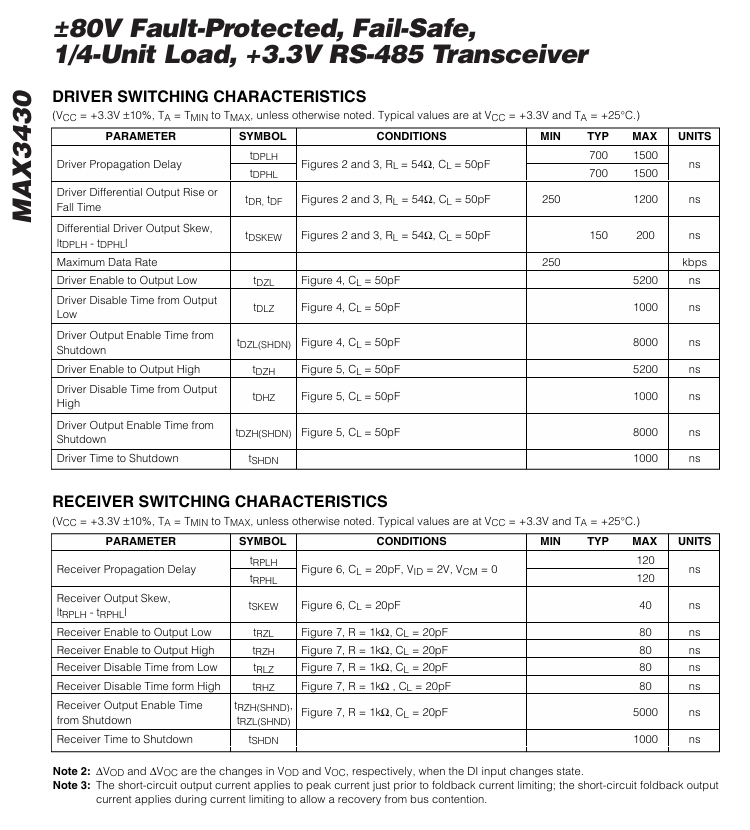

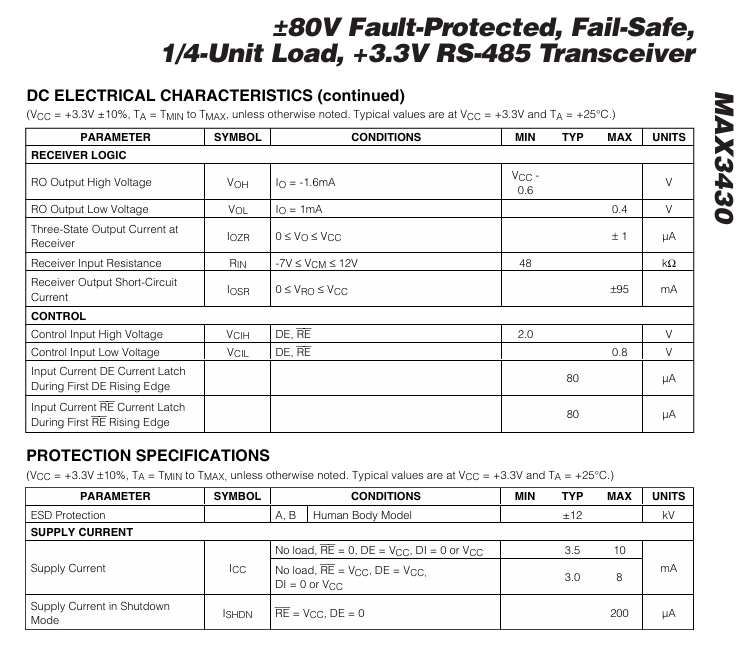

The MAX3430 fault-protected RS-485 transceiver features ±80V protection from overvoltage signal faults on communication bus lines. Each device contains one driver and one receiver, and the output pins can withstand faults, with respect to ground, of up to ±80V. Even if the faults occur when the transceiver is active, shut down, or powered off, the device will not be damaged. The MAX3430 operates from a 3.3V supply and features a slew-rate-limited driver that minimizes EMI and reduces reflections caused by improperly terminated cables, allowing error-free data transmission at data rates up to 250kbps. The MAX3430 has a 1/4-unit-load receiver input impedance allowing up to 128 transceivers on a single bus and features fail-safe circuitry, which guarantees a logic-high receiver output when the receiver inputs are open.
Hot-swap circuitry eliminates false transitions on the data cable during circuit initialization or connection to a live backplane. Short-circuit current limiting and thermal- shutdown circuitry protect the driver against excessive power dissipation.
The MAX3430 is available in 8-pin SO and 8-pin PDIP packages, and is specified over commercial and industrial temperature ranges.
Applications
Industrial Control Local Area Networks
Lighting Systems
Multimaster RS-485 Networks
PROFIBUS Applications
RS-422/RS-485 Communications
